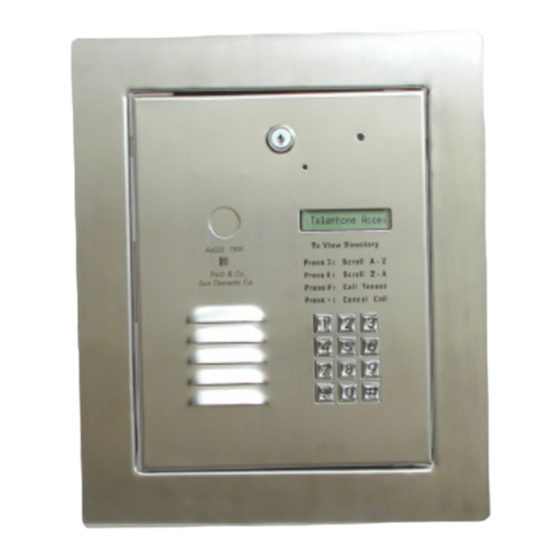

PACH & COMPANY Aegis 7000 Plus Installation And Programming Manual

Hide thumbs Also See for Aegis 7000 Plus:

Advertisement

Quick Links

INSTALLATION AND PROGRAMMING MANUAL
Rev. 03-04-2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aegis 7000 Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PACH & COMPANY Aegis 7000 Plus

Summary of Contents for PACH & COMPANY Aegis 7000 Plus

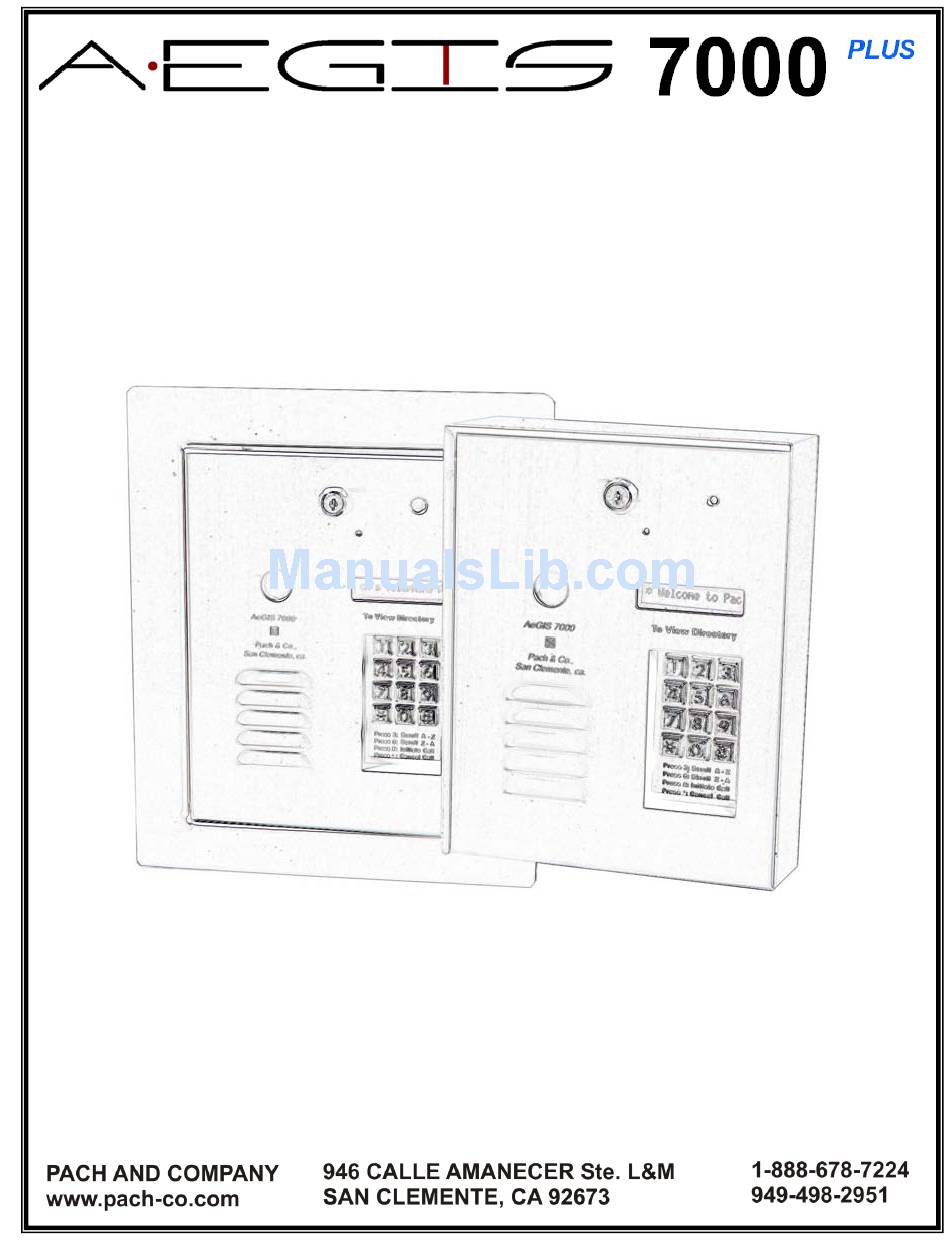

  • Page 1 INSTALLATION AND PROGRAMMING MANUAL Rev. 03-04-2011...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Chapter 1 GETTING STARTED -------------------------------------------------------------- 4 Chapter 2 INSTALLATION WIRING DIAGRAM ---------------------------------------- 11 Chapter 3 PROGRAMMING ------------------------------------------------------------------ 13 Chapter 4 SYSTEM’S OPERATION -------------------------------------------------------- 21 Chapter 5 TROUBLE SHOOTING GUIDE ------------------------------------------------ 23 GENERAL FCC REQUIREMENTS ------------------------------------------- 25 QUICK GUIDE ---------------------------------------------------------------------- 26 AeGIS 7000P Page 2...
  • Page 3 LIMITATIONS OF LIABILITY This manual is subject to change without notice. Pach and Company is not liable for any errors that might occur from use of this document, nor is any commitment to update the information herein implied. Pach and Company does not assume any liability for any damages, which may arise in installation or use of the AeGIS 7000P Series.

  • Page 4: Chapter 1 Getting Started

    Chapter 1 GETTING STARTED Introduction Pach & Company thanks and congratulates you on the purchase of your AeGIS 7000P Series Telephone Entry Access Control Systems. The manual is designed to guide you through the proper programming and use of the AeGIS 7000P Series. It is important for you to read and follow the manual completely.
  • Page 5 Technical Specifications o Power Input: 12 VAC 40 VA (supplied) or 12 VDC 40VA UL Listed Transformer o Current Consumption: 500mA idle, 700mA operation o Emergency Battery: 12Vdc, 4Ahr rechargeable (not supplied) o Telephone Line: Standard voice grade RJ11 jack. o Night Light: 14V 0.080A 15,000 Average life hours.
  • Page 6 Limited Warranty Pach and Company new products are warranted to be free of defects in material or workmanship for a period of 24 month from the date of purchase. This warranty extends only to wholesale customers who buy direct from Pach and Company or through Pach and Company’s normal distribution channels. Pach and Company does not warrant this product in any way to the end user consumer.
  • Page 7 There are no obligations and/or liabilities on the part of Pach and Company for consequential damages arising out of or in connection with use or performance of Pach and Company products or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation.
  • Page 8 o The products must be properly installed as specified; and maintained or used as intended Cause of product failure is not due to vandalism or malicious mischief, improper installation, abnormal physical or o electrical stress, lightning, power surges, misuse, negligence, accidents, or Natural disasters o Warranty is immediately null and void if the product has been altered, repaired, or modified without express written authorization from Pach and Company Technical Department, with such authorization given only to manufacturer approved dealer/installers...
  • Page 9 o Pach and Company reserves the right to replace a warranted product with a like product of equal value in the event original system cannot be repaired. o Distributors and/or Dealer-Installer must first obtain a Return Merchandise Authorization (RMA) number from Pach and Company Technical Department before returning any product to factory for repair, whether under warranty or not.
  • Page 10 insurance fees, for products shipped to Pach and Company repair center. o Pach and Company warranty does not guarantee any product, new or repaired, to be free of operation error or service interruption in any way during the course of daily product operation. o Pach and Company is not responsible for time, travel, and/or labor costs of any distributor and/or dealer-installer, including but not limited to, any expenses to install, uninstall or reinstall hardware/software/firmware related to warranty issues, product enhancements, or product...

  • Page 11: Installation Wiring Diagram

    Chapter 2 INSTALLATION WIRING DIAGRAM Figure 2.1 AeGIS 7000P Page 11 Checking your installation...
  • Page 12 1. Turn the “Power” On, the display will go into cycle mode as show LCD DISPLAY OK FLASH OK DTMF OK INIT START COMPLETE . . . Welcome to Pach’s WARNING: IF THE DISPLAY SHOWS BLANK SCREEN, TURN THE SYSTEM IMMEDIATELY 2.
  • Page 13 Chapter 3 PROGRAMMMING Two ways to Log-on to programming mode: First using system’s keypad 1. Press 0 and # simultaneously then release, see below Press 0# simultaneously, LCD screen will stop scrolling if the LCD is still scrolling repeat the process then 4-digit Master Code (0000 is default master code) The screen will show as below, if the master code is valid Select Func: _ _...

  • Page 14: Chapter 3 Programming

    Keypad Function and Layout III. Programming Function Codes FUNCTION CODE PROGRAMMING Must be in programming mode, see Two ways to MASTER CODE (0000 is default) Log-on to programming mode: on page 13 Change the master code for your security 1. Enter function code 00 then press # MASTER CODE: 0000 2.
  • Page 15 Enter the Name NOTE: DIRECTORY MUST BE UNIQUE FOR EACH TENANT OTHERWISE THE DISPLAY _ _ _ _ _ _ _ _ _ _ _ _ _ WILL SHOW DIR # is used ! 3. Enter the person name up to 16-characters. Press # after entering each letter, see (Keypad Function and Layout page 14).
  • Page 16 5. Enter 4-digit access code then press #. Repeat step 1 to edit another tenant directory. Must be in programming mode, see Two ways to DELETING A DIRECTORY Log-on to programming mode: on page 13 1. Enter function code 03 then press # NOTE: IF DIRECTORY DOES NOT EXIST, THE DISPLAY WILL SHOW Delete Dir: _ _ _...
  • Page 17 press # Wait ….. WARNING: CHANGING THE DIRECTORY DIGIT WILL ERASE ALL TENANT DIRECTORY Must be in programming mode, see Two ways to SINGLE OR MULTI SYSTEM Log-on to programming mode: on page 13 1= Single 0= Multi Default is single 1.
  • Page 18 MC_MASK 1=YES:0 2. Select 0=Unmask or 1=Mask then press # WARNING: MASKING THE MASTER CODE WILL DISABLE THE RETRIEVAL BUTTON. THERE ISN’T A WAY TO RECOVER THE MASTER CODE. PACH AND COMPANY WILL NOT COVER THE WARRANTY IF THE MASTER CODE HAS BEEN FORGOTTEN.
  • Page 19 TALK TIME:060 2. Press 010-180 then press # Must be in programming mode, see Two ways to DOOR OPEN TIME Log-on to programming mode: on page 13 04-99 Seconds Default is 12 seconds 1. Enter function code 71 then press # DOOR OPEN:12 2.
  • Page 20 UnlockBeep (1,0) 1 2. Press 1= enable or 0= disable then press # Must be in programming mode, see Two ways to Log-on to programming mode: on page 13 0= disable 1= enable 1. Enter function code 77 then press # Default is disable PBX_EN(1,0):0 2.

  • Page 21: Chapter 4 System's Operation

    Chapter 4 SYSTEM’S OPERATION A. How to view tenant’s directory 1. Press (scroll A-Z) or 2. Press (scroll Z-A) B. How to initiate a call from the system Two ways to initiate a call 1. By scrolling (see A, press 3 or 6 to scroll) then press # to call 2.
  • Page 22 G. How to use the 4-digit access code to open 1. Press , the welcome screen will stop the door scrolling otherwise repeat this step. 2. Press 4-digit valid access code. WARNING: SYSTEM WILL BE DISABLED FOR 90 SECONDS IF INVALID ACCESS CODE HAS BEEN ENTERED ACCORDING TO THE SETTING OF LOCK-OUT COUNT (FUNCTION CODE 72, p19)

  • Page 23: Trouble Shooting Guide

    Chapter 5 TROUBLE SHOOTING GUIDE AUDIO PROBLEMS 1. Turn the system’s power off and on No audio on key(s) press 2. Check the speaker and microphone connection, check for broken wires. 3. Disconnect the microphone and speaker connector then check the speaker’s impedance, must read between 18-24 ohms 1.

  • Page 24: General Fcc Requirements

    1. Turn the system’s power off and on No dial tone 2. Check the phone line for dial tone. Must check at the end of the phone cord. 3. Disconnect the microphone and speaker connector then check the speaker’s impedance, must read between 18-24 ohms 4.
  • Page 25 This equipment complies with Part 68 of the FCC rules. Located on the back of your AeGIS system is a label that contains, among other information, the FCC registration and ringer equivalence number (REN) for the system. Prior to installing your AeGIS system, please call your telephone company and provide them the FCC registration and REN numbers as well as the telephone number of the line to which you will connect the system.
  • Page 26 AeGIS 7000P Page 26...
