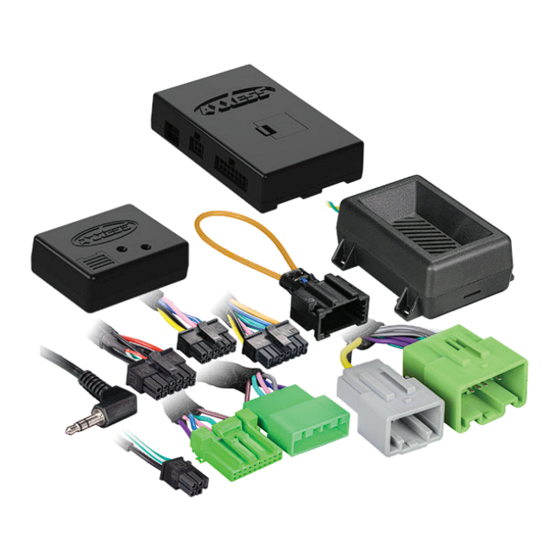

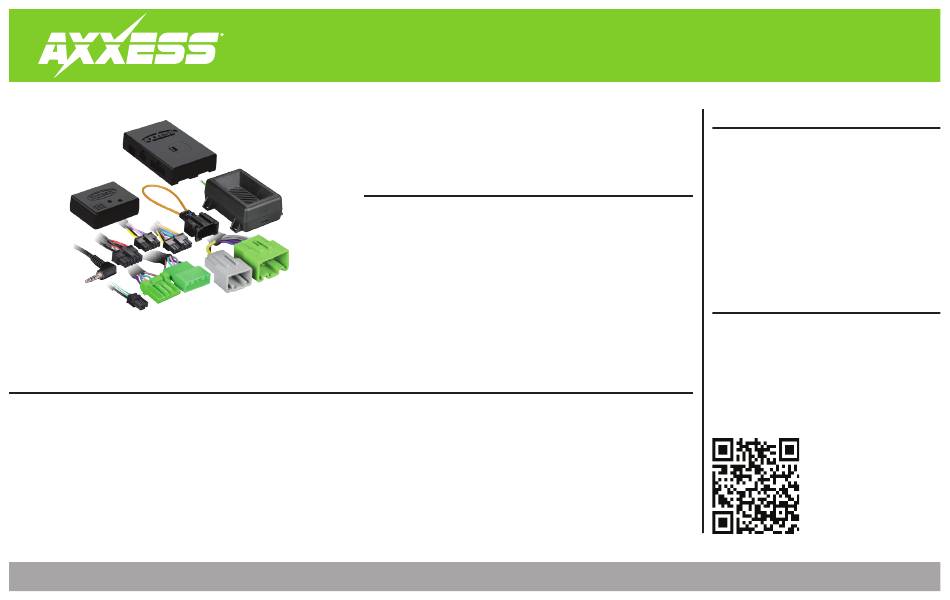

INTERFACE COMPONENTS
• AX-VL90042 interface
• AX-VL90042 chime retention Interface
• ASWC-1 interface
• AX-VL90042 harness
• ASWC-1 harness
• Female 3.5mm connector with stripped leads
• M.O.S.T. jumper harness (qty. 2)
• Chime speaker
AxxessInterfaces.com
Volvo XC90 Data Interface with SWC
* For models with rear parking sensors
INTERFACE FEATURES
• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Includes amplifier bypass harness
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains parking sensor chimes
• Retains balance and fade
• Micro "B" USB updatable
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AX-VL90042
I N S TA L L AT I O N I N S T R U C T I O N S
2004-2014*
TABLE OF CONTENTS
Connections ............................................................2
Installing the AX-VL90042 interface ................. 3-4
Programming the ASWC-1 interface .....................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Zip ties
Product Info
REV. 7/25/19 INSTAX-VL90042
Advertisement
Related Manuals for Axxess AX-VL90042
Summary of Contents for Axxess AX-VL90042
- Page 1 Volvo XC90 Data Interface with SWC 2004-2014* TABLE OF CONTENTS Connections ............2 * For models with rear parking sensors Installing the AX-VL90042 interface ....3-4 Programming the ASWC-1 interface .....5 INTERFACE FEATURES • Provides accessory power • Retains R.A.P. (retained accessory power) • Includes amplifier bypass harness •...
- Page 2 CONNECTIONS From the aftermarket radio to the AX-VL90042 harness: From the aftermarket radio to the ASWC-1 harness: This harness is only to be used if the vehicle is equipped with steering wheel controls. • Connect the Black wire to the ground wire. • Connect the Red wire to the accessory wire. • Connect the Yellow wire to the battery wire.
- Page 3 • Locate the Green 10-pin connector behind the radio display. (Figure B) • Unplug the connector, then plug in the Green male 10-pin connector from the AX-VL90042 harness into the radio display. • Connect the factory male 10-pin connector, into the Green female 10-pin connector from the AX-VL90042 harness.
- Page 4 (Figure C) (Figure D) from the display screen. • Connect the AX-VL90042 harness to the AX-VL90042 interface. • Connect the AX-VL90042 harness to the AX-VL90042 chime retention Interface. • Zip tie the chime speaker under the dash to a location where it will be heard clearly by the driver, then route the harness to the radio location.
- Page 5 PROGRAMMING THE ASWC-1 INTERFACE • Press and hold the Volume-Up button on the steering wheel. L.E.D. feedback • Turn the ignition on, the L.E.D. in the ASWC-1 interface will start flashing rapidly, which The (18) Red L.E.D. flashes represent what brand radio the ASWC-1 believes it is connected means the ASWC-1 is looking for the vehicle and the radio.
- Page 7 REV. 7/25/2019 INSTAX-VL90042...
- Page 8 AX-VL90042 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1186 ext. 8300 Or via email at: techsupport@metra-autosound.com...
