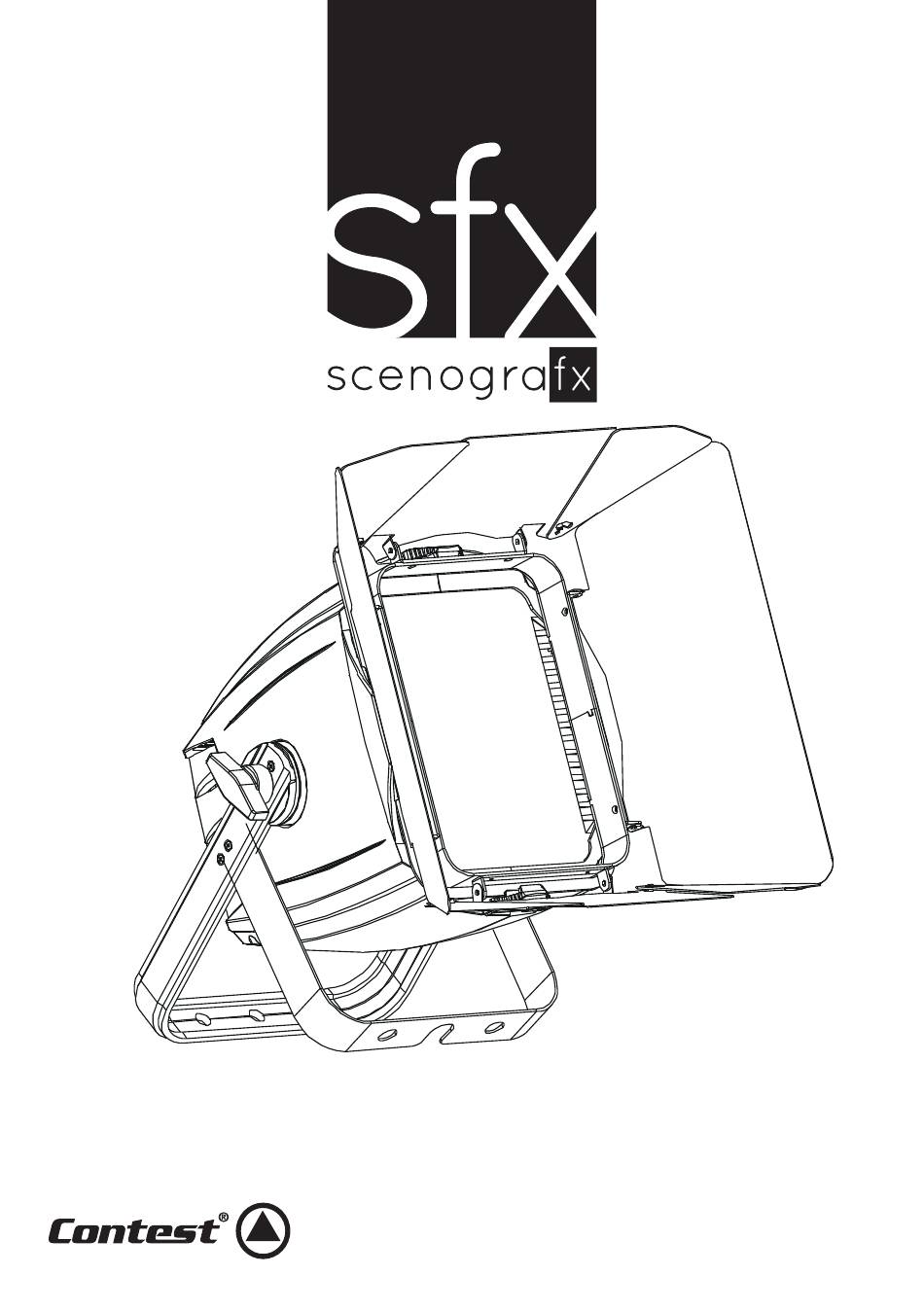

- Page 1 SCENE STORE EXPO SFX-HO150QC USER GUIDE 10701 - Version 1 / 02-2017...
-
Page 2: Safety Information
Any maintenance procedure must be performed by a CONTEST authorised In order to avoid any electrical malfunction, please do not use any technical service. Basic cleaning operations must thoroughly follow our safety multi-socket, power cord extension or connecting system without instructions. -
Page 3: Technical Specifications
SFX-HO150QC - 150W LED RGBW Horiziode projector English 2 - Technical specifications Optical Additional information: › 1 x 150W COB RGBW LED › Power supply: 100-240V/50-60Hz › Light output of 220 Lux at 4m › Power consumption: 155 W › Colour temperature from 2800°K to 6000°K ›... - Page 4 SFX-HO150QC - 150W LED RGBW Horiziode projector English 3 and 5-pin XLR plugs hardwired as follows: Filter holder - Pin 1: Mass Allows you to add a colored filter and colorize your beam. - Pin 2: Negative signal - Pin 3: Positive signal - Pin 5: Not connected Rotative shutters - Pin 6: Not connected...
-
Page 5: Internal Menu
SFX-HO150QC - 150W LED RGBW Horiziode projector English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display will indicate: Initialisation... The projector initialises the functions of the internal program. It will then enter standby mode and indicate: XX°C Standby XX°C The projector is now ready to be used. - Page 6 SFX-HO150QC - 150W LED RGBW Horiziode projector English Menu Sub-menu Action Auto Test Automatically tests every function of the projector. Fixture Test Manual Test Allows to manually select and test any function Fixture Use time Displays time elapsed since the first time the projector was activated. Fixture information Led Temp Displays the LED temperature...
-
Page 7: Dmx Modes
SFX-HO150QC - 150W LED RGBW Horiziode projector English 5 - DMX modes The projector enters DMX mode as soon as an incoming DMX signal has been detected. 5.1 - 1-channel mode Canal Values Action Colours and macros 000 - 007 LED off 008 - 015 016 - 023... - Page 8 SFX-HO150QC - 150W LED RGBW Horiziode projector English 5.2 - 4-channel mode Channel Values Action 000 - 255 000 : black out - 255 : 100% Green 000 - 255 000 : black out - 255 : 100% Blue 000 - 255 000 : black out - 255 : 100% White 000 - 255...
- Page 9 SFX-HO150QC - 150W LED RGBW Horiziode projector English 5.4 - 8-channel mode (continuation and end) Channel Values Action Colours and macros 000 - 007 LED off 008 - 015 016 - 023 Orange 024 - 030 Yellow 031 - 038 Green 039 - 045 Cyan...
- Page 10 SFX-HO150QC - 150W LED RGBW Horiziode projector English 6 - Colour values and macros 6.1 - Colour values DMX Values GREEN BLUE WHITE Orange Yellow Green Cyan Blue Pink Magenta Cold white Warm white White at full power Pastel pink Pastel apricot Very pastel ochre Pastel Green/ Yellow...
- Page 11 SFX-HO150QC - 150W LED RGBW Horiziode projector English 7 - Dimensions Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the CONTEST ® products on www.contest-lighting.com CONTEST ®...
