Summary of Contents for Contest Radius515

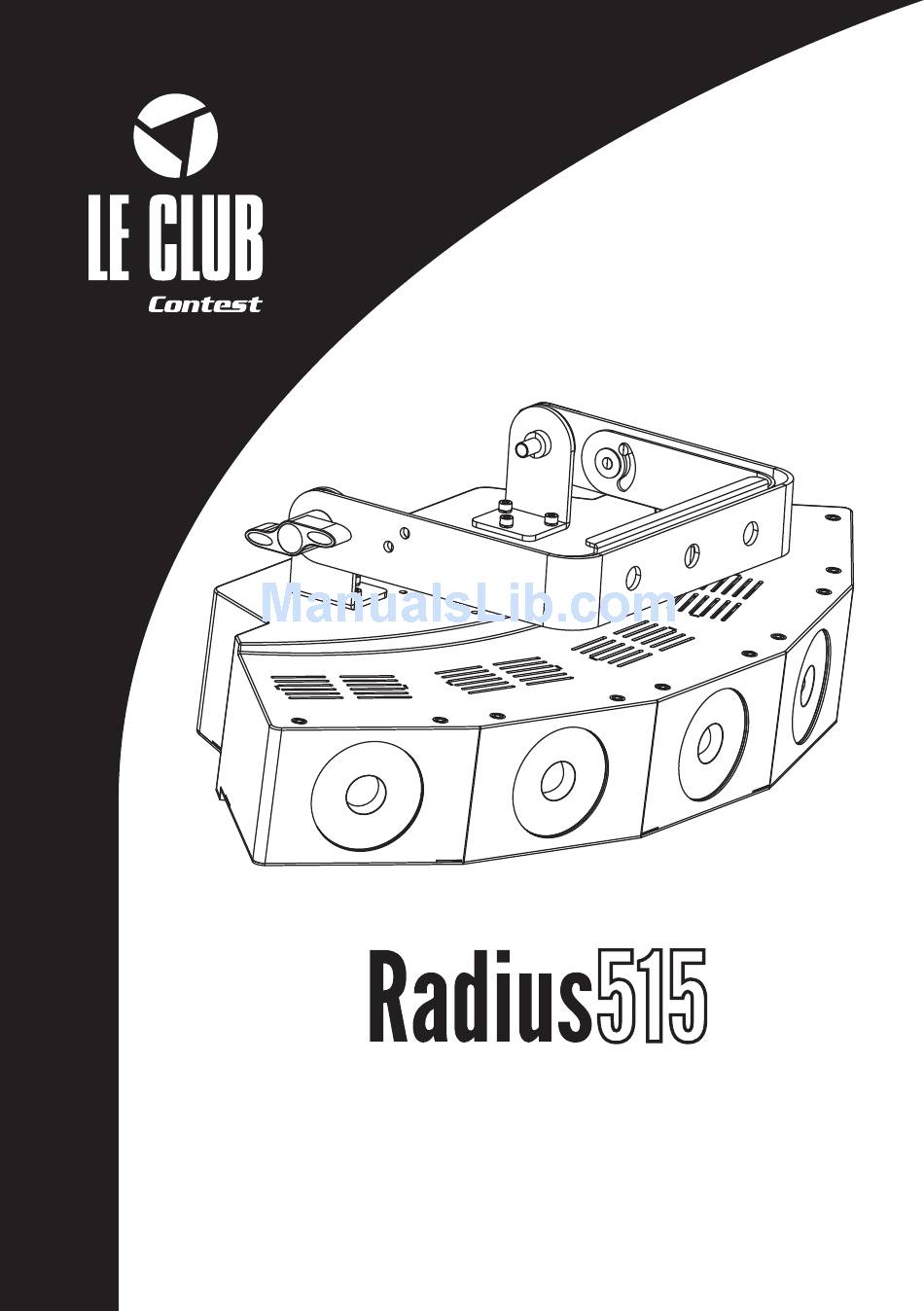

- Page 1 USER GUIDE 10667 - Version 1 / 02-2017...
-
Page 2: Important Safety Information
RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 1 - Safety information WARNING : This unit contains no user-serviceable parts. Do not open the housing or attempt any maintenance by yourself. In the Important safety information unlikely even your unit may require service, please contact your nearest dealer. -
Page 3: Technical Specifications
RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 2 - Introduction Thank you for choosing our RADIUS515 projector. You are now in possession of a high-quality, powerful and intelligent projector, which will use all its features to highlight your parties, animations, concerts... 3 - Technical specifications Source lumineuse •... - Page 4 RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 4 - Description POWER IN POWER OUT Radius SAFETY EYE MODE ENTER DMX IN DMX OUT 10 11 1 - Double suspension bracket 10 - UP button Allows you to suspend your projector or handle it on the ground Allows you to browse through menus and modify values.
- Page 5 The address of the first unit will be 1, the second unit will be13 (1+12), the third unit will be 25 (13+12) and so on. NB : Once switched on, the RADIUS515 automatically detects any incoming DMX signal, and the display indicates"A.001" (the unit DMX address).
- Page 6 English 6 - Menu The RADIUS515 features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu.
- Page 7 RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English Activates the music-sensitive mode. SoundMod SoundMod Sound sensitivity relies on Sens values: Sens: XX Sens:00 /31 - Sens:00 : Microphone deactivated - Sens:31 : Maximum sensitivity Allows you to set the temperature unit: TempUnit °C : Celsius degrees...
-
Page 8: Dmx Channels And Functions
RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 7 - DMX channels and functions Your RADIUS515S projector features 5 DMX modes: The following chart indicates the DMX values and functions of each mode. Modes / Channels... - Page 9 RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 065-069 Metal Blue 070-074 Orange 075-079 Straw 080-084 Light Lavender 085-089 Pink 090-094 Green 095-099 100-104 Blue 105-109 White 110-114 Rainbow effect 1 115-119 Rainbow effect 2...
- Page 10 RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English Preset colours and sequences 000 - 009 No function 010 - 012 Yellow 013 - 015 Magenta 016 - 018 Cyan 019 - 021 Metal Blue 022 - 024...
- Page 11 RADIUS515 - 4° Beam effect with 5 x 15W 4-in-1 RGBW LEDs English 8 - Dimensions 263.5mm [10.37in] 105.38mm [4.15in] 247.38mm [9.74in] 524.98mm [20.67in] 271.18mm [10.68in] 373.94mm [14.72in] 263.5mm [10.37in] 209.5mm [8.25in] Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
