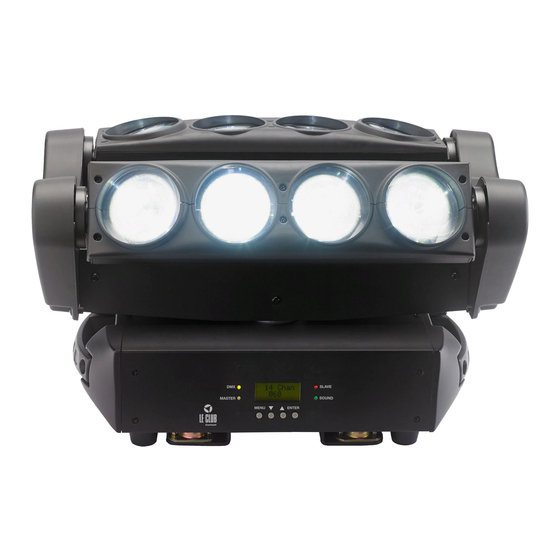

- Page 1 2 X 4 W H I T E B E A M S A N I M AT I O N P R O J E C T O R W I T H N O N - S T O P PA N R OTAT I O N USER GUIDE 10293 - 1 January 2015 version...
-
Page 2: Important Safety Information
WARNING : This unit contains no user-serviceable parts. Do not open the housing or attempt Any maintenance procedure must be performed by a CONTEST authorised any maintenance by yourself. In the unlikely even your unit may require service, please contact technical service. -
Page 3: Technical Specifications
HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation English 2 - Technical specifications Light sources Package contents : › 8x10W Dazzling white LEDs - 50 000 hours (expected) The package must include the following articles: › 6° aperture angle (individual lenses) ›... -
Page 4: Rear Panel Description
English HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation 3 - Rear panel description Indicator LEDs Stereo Jack 6.35 input These 4 LEDs indicate the device status. This input allows you to plug in the EASY-2 optional remote control. -
Page 5: Internal Menu
HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation English 4 - Internal menu Once turned on, the moving head will start a position initialisation for each motor. At this stage, the display indicates . Once the initilisation is over, the display will indicate , you will then be able to access the menu using the MENU or ENTER buttons. - Page 6 English HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation MENU UP and DOWN Action ENTER Activates the PAN movement reversion when the Slave and Show modes are activated, Saves or in DMX mode. changes Press ENTER and select Yes or No with UP and DOWN. Activates the bar 1 TILT movement reversion when the Slave mode is activated, or in Saves DMX mode.
- Page 7 HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation English 5 - The various DMX modes Press and hold the MENU button to enter the DMX mode. 5.1 - 1-channel mode Channel Values Action 000 - 007 Black-out 008 - 015 Show 0 automatic 016 - 031...
- Page 8 English HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation 5.2 - 10-channel mode (continuation and end) Movement macros speed 000 - 007 No action 008 - 247 Increasing speed 248 - 255 Music-sensitive mode Main dimmer 000 - 255 Dimmer: 0 - 100% Strobe 000 - 007...
- Page 9 HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation English 5.3 - 14-channel mode (continuation and end) Main dimmer 000 - 255 Dimmer: 0 - 100% Strobe 000 - 007 Black-out 008 - 131 Stroboscope at increasing speed 132 - 139 Open 140 - 181...
- Page 10 English HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation 5.4 - 18-channel mode (continuation and end) Main dimmer 000 - 255 Dimmer: 0 - 100% Strobe 000 - 007 Black-out 008 - 131 Stroboscope at increasing speed 132 - 139 Open 140 - 181...
- Page 11 HELIWAVE-8x10WH - 2x4 White beams animation projector with non-stop PAN rotation English 6 - DMX cabling and addressing for each mode Unit 1 Unit 2 Unit 3 Unit 4 DMX mode Unit 1 address Unit 2 address Unit 3 address Unit 4 adress 1 channel 10 channels...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
