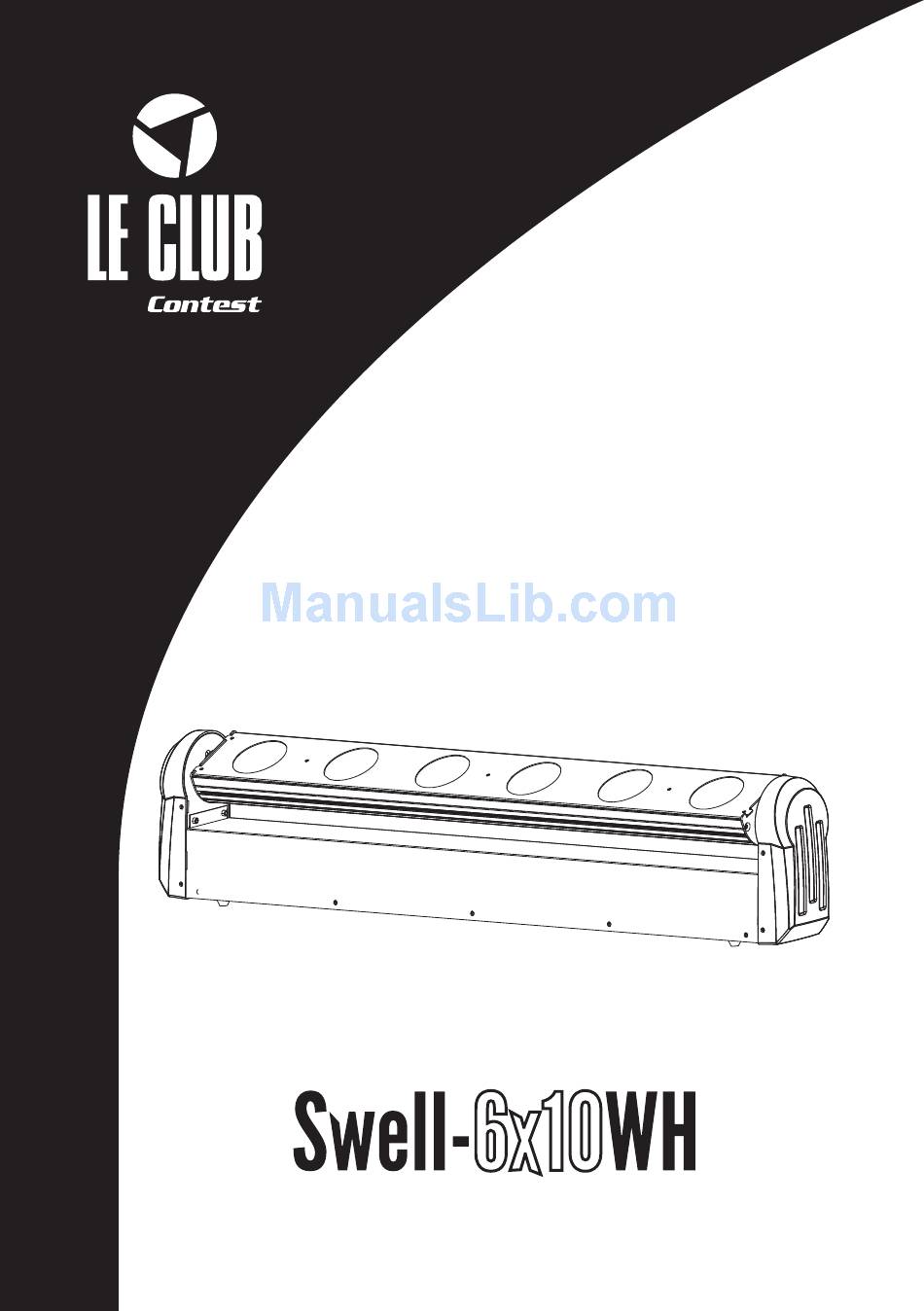

- Page 1 6 X 1 0 W W H I T E L E D S M U LT I - B E A M R OTAT I N G B A R USER GUIDE 10260 - 1 January 2015 version...
-
Page 2: Safety Information
Swell-6x10WH - 6x10W white LEDs multi-beam rotating bar English 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-... - Page 3 Swell-6x10WH - 6x10 W white LEDs multi-beam rotating bar English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
-
Page 4: Technical Specifications
Swell-6x10WH - 6x10W white LEDs multi-beam rotating bar English 2 - Technical specifications Light sources Package contents : › 6x10W Dazzling white LEDs - 50 000 hours (expected) The package must include the following articles: › 6° aperture angle (individual lenses) ›... -
Page 5: Rear Panel Description
Swell-6x10WH - 6x10 W white LEDs multi-beam rotating bar English 3 - Rear panel description Power input Display Allows you to connect the projector to an electrical outlet. This intuitive display allows you to configure your projector. Please make sure the voltage is in adequation with the product Please refer to the next paragraphs for more details about indications. -
Page 6: Internal Menu
Swell-6x10WH - 6x10W white LEDs multi-beam rotating bar English 4 - Internal menu Once turned on, the moving head will start a position initialisation for each motor. At this stage, the display indicates . Once the initilisation is over, the display will indicate , you will then be able to access the menu using the MENU or ENTER buttons. - Page 7 Swell-6x10WH - 6x10 W white LEDs multi-beam rotating bar English MENU UP and DOWN Action ENTER Reverses the sequence movements. When No is selected, the sequences are executed Saves from right to left, when Yes is selected, they are executed from left to right.
- Page 8 Swell-6x10WH - 6x10W white LEDs multi-beam rotating bar English 5 - The various DMX modes 5.1 - 1-channel mode Channel DMX values Action 000 - 007 Black-out 008 - 015 Show 0 - automatic 1-12 show sequence 016 - 033...
- Page 9 Swell-6x10WH - 6x10 W white LEDs multi-beam rotating bar English Channels Values Action LED macros 000 - 007 No action 008 - 043 LED 1 macro 044 - 079 LED 2 macro 080 - 115 LED 3 macro 116 - 151...
- Page 10 Swell-6x10WH - 6x10W white LEDs multi-beam rotating bar English 5.4 - 13-channel mode Channels Values Action 000 - 255 TILT movement: -120° - 120° TILT macros 000 - 007 No action 008 - 043 Macro 1 : -30° ~ 30°...
- Page 11 Swell-6x10WH - 6x10 W white LEDs multi-beam rotating bar English 6 - DMX cabling and addressing for each mode Unit 1 Unit 2 Unit 3 Unit 4 DMX mode Unit 1 address Unit 2 address Unit 3 address Unit 4 address...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
