Summary of Contents for Contest LED GUN

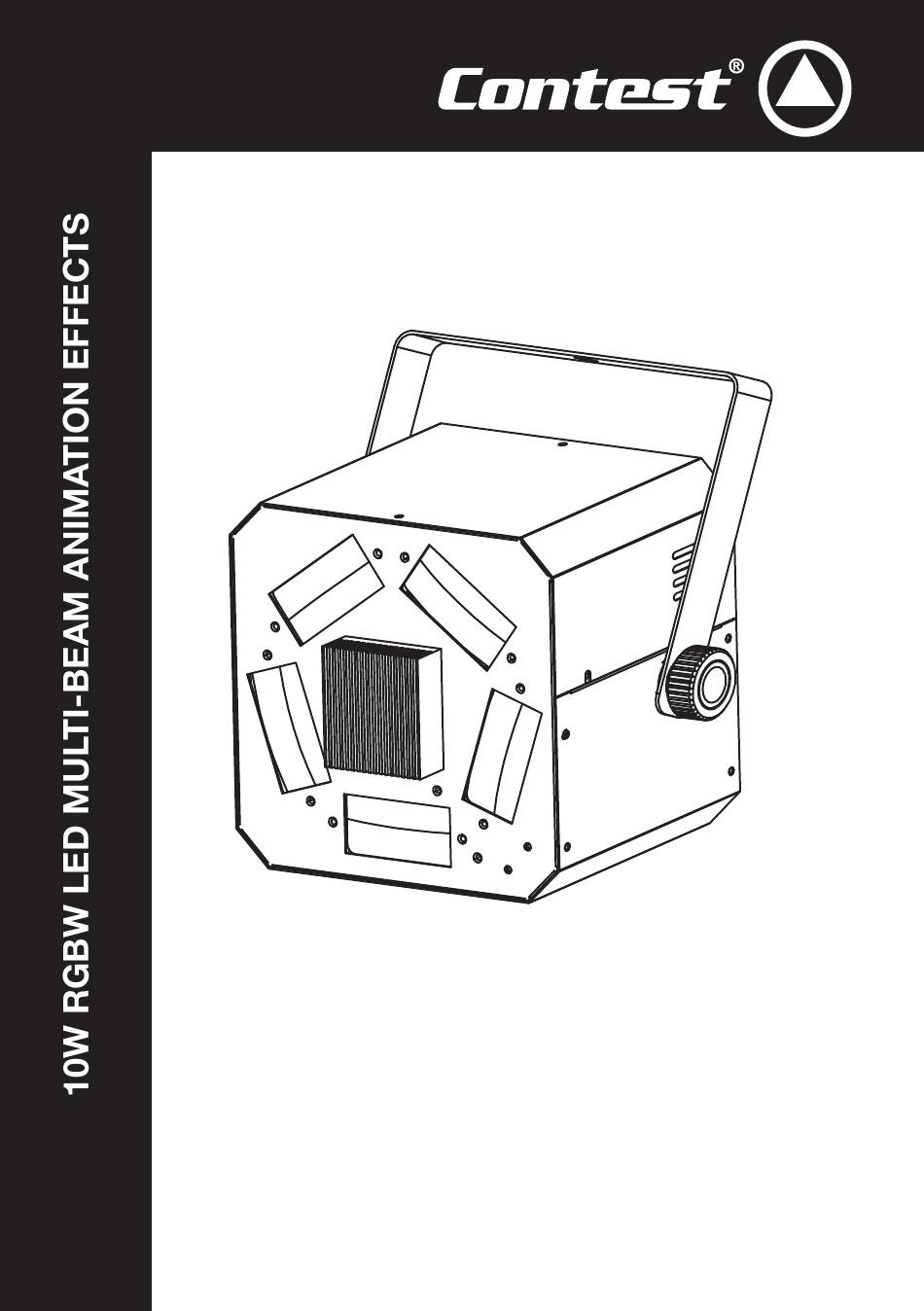

- Page 1 LED GUN USER GUIDE 9541 - July 2014 - Version 2...
- Page 2 LED-GUN - 10W RGBW LED Multi-beam animation effects English Page 2...
-
Page 3: Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 4 LED-GUN - 10W RGBW LED Multi-beam animation effects English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 5: Specifications And Installation
LED-GUN - 10W RGBW LED Multi-beam animation effects English 2 - Introduction Thank you for purchasing the LED-GUN. It features a new, revolutionary TRI technology producing incredible colours. Its high-quality optical system creates laser-like, colour full effects. The LED-GUN has an important lifespan, extended by its 1.8° stepper motor. This technology allows fluid and precise movements even in music-sensitive mode. - Page 6 LED-GUN - 10W RGBW LED Multi-beam animation effects English 4.2 - Description DMX Adress Select Only for Easy-2 Power Input Controller 230V - 50Hz DMX In Fuse T2A - 250V Model : LED-GUN Code : 9541 DMX Out Power : 230V - 50Hz - 12,5W max. Fuse : T2A - 250V 1 - Hanging bracket...
-
Page 7: Dmx Input
LED-GUN - 10W RGBW LED Multi-beam animation effects English 4.3 - Connections Connect the your device to an electrical outlet. In Master / Slave mode, connect the slave units to the DMX output of the Master device. The DMX input of your master device must not be connected. In DMX mode, connect the DMX remote control to the input of your first device, then daisy-chain the other units. - Page 8 LED-GUN - 10W RGBW LED Multi-beam animation effects English 4.5 - Using the EASY-2 remote control (optional) The EASY-2 remote control is straightforward and easy to install. It is able to control several units synchronised with the Master/Slave mode. Plug your remote control into the Master projector Jack 6.35 chassis called «Remote control», and daisy-chain the additional units via the XLR plugs, as you would for a regular DMX cabling.
- Page 9 LED-GUN - 10W RGBW LED Multi-beam animation effects English 4.7 - DMX Values 4.7.1 - 1-channel mode CHANNEL 1 250 - 255: Music-sensitive mode 140 - 249: Counterclockwise, slow to fast rotation 125 - 139: No rotation 015 - 124: Clockwise, fast to slow rotation 000 - 014: OFF 4.7.2 - 3-channel mode CHANNEL 1...
- Page 10 LED-GUN - 10W RGBW LED Multi-beam animation effects English 4.8 - Using dipswitches The drawing opposite describes the different modes accessible via dipswitches. 1 - SPECIAL FUNCTIONS: Position dip 1 onto ON to activate the automatic mode. - When dip 1 is ON, and dipswitches 3,4 5 and 6 are OFF: your LED-GUN is in music-sensitive mode.
- Page 11 LED-GUN - 10W RGBW LED Multi-beam animation effects English 6 - Dimensions Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
