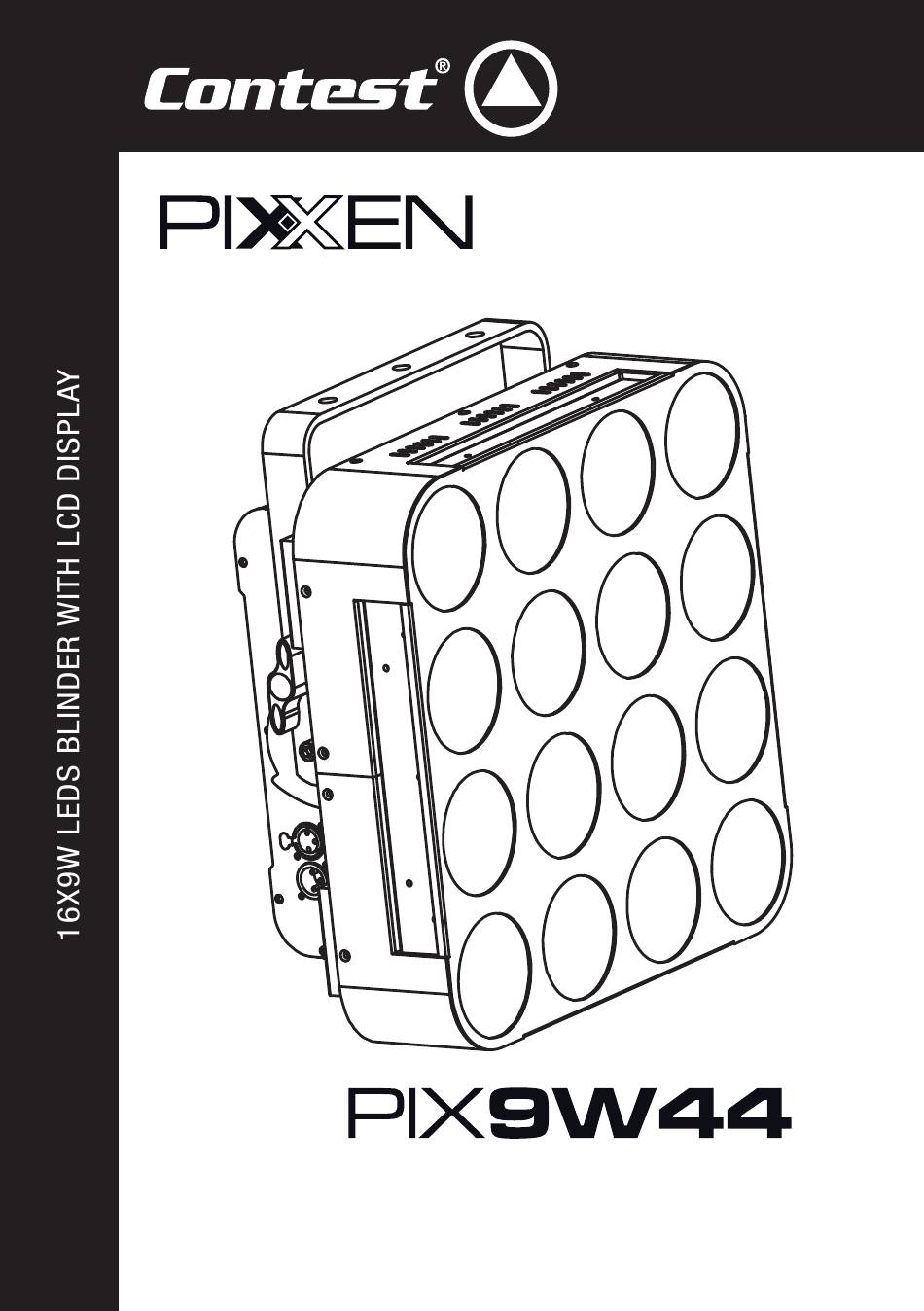

- Page 1 USER GUIDE 10135 - December 2013 Version 1.12...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 PIX9W44 - 16x9W LEDs blinder with LCD display English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 4: Main Characteristics
PIX9W44 - 16x9W LEDs blinder with LCD display English 2 - Main characteristics This projector is equipped with 16x9W tricolour LEDs with an optical system designed to focus beams and have more impact. Even though the PIX9W44 is a blinder -designed to create blinding flash effects, its incredible color rendering and brightness can be put to profit for ambient lighting or decoration. - Page 5 PIX9W44 - 16x9W LEDs blinder with LCD display English 4 - Description DMX OUT 1: Ground 2: Signal (-) 3: Signal (+) DMX IN POWER OUT Power input/output socket Display Allows you to connect the projector to an electrical outlet and This intuitive display allows you to configure your projector.
-
Page 6: Internal Menu
PIX9W44 - 16x9W LEDs blinder with LCD display English 5 - Internal menu 5.1 - Submenus and functions MODE ENTER UP and DOWN Action 1 : Colours and macros Fixed colours selection and sequences. 1 : Selection selection In this mode the LEDs change their colour at the same time. 2 : Speed 2 : Strobe or speed - If a colour has been selected pressing ENTER gives you access to strobe settings. - Page 7 PIX9W44 - 16x9W LEDs blinder with LCD display English 5.2 - Macros and colours details Cool white Orange Warm white Yellow Colour macro 1: step, with speed settings Green Colour macro 2: step, with speed settings Cyan Colour macro 3: step, with speed settings Blue Colour macro 4: step, with speed settings Pink...
-
Page 8: 2-Channel Mode
PIX9W44 - 16x9W LEDs blinder with LCD display English 6 - The various DMX modes 6.1 - 2-channel mode Channel 1 Channel 2 000 - 010 011 - 020 021 - 030 Orange 031 - 040 Yellow 041 - 051 Green 000 - 255 : if channel 1 is set between 011 and 112 052 - 061... -
Page 9: 5-Channel Mode
PIX9W44 - 16x9W LEDs blinder with LCD display English 6.4 - 5-channel mode DMX values Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100% CHANNEL 4 000 - 255... - Page 10 PIX9W44 - 16x9W LEDs blinder with LCD display English 6.6 - 48-channel mode Channel DMX values Function Channel 1 000 - 255 LED1 Red from 0 - 100% Channel 2 000 - 255 LED1 Green from 0 - 100% Channel 3 000 - 255 LED1 Blue from 0 - 100% Channel 46...
- Page 11 PIX9W44 - 16x9W LEDs blinder with LCD display English Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
