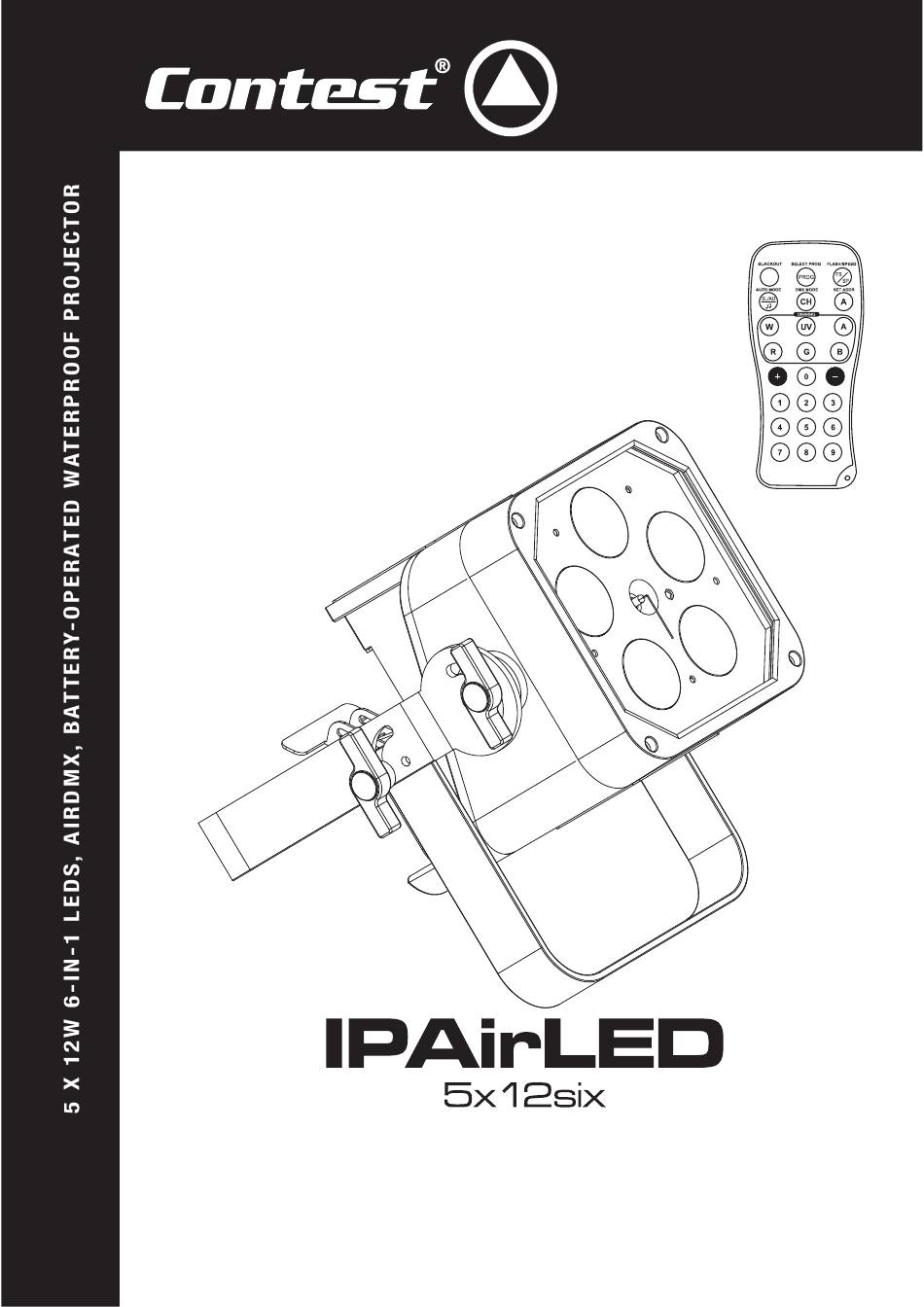

- Page 1 USER GUIDE 10411 - Version 3 / 01-2019...
-
Page 2: Safety Information
Any maintenance procedure must be performed by a ponents. Do not undertake any maintenance opera- CONTEST authorised technical service. Basic clea- tion when it is switched on as it may result in electric ning operations must thoroughly follow our safety shock. - Page 3 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit. operation.
-
Page 4: Technical Specifications
IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 2 - Introduction This waterproof projector features 6-in-1 LEDs allowing you to create a whole palette of exclusive colours. The 12W LEDs are perfect to deliver a powerful light output for ambient lighting or animations. Its multi-function remote control and countless control modes allow it to perfectly fit any installation while offering a vast selection of programs. - Page 5 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 5 - Description Power In Power Out DMX In DMX Out Power input socket 4-pin IP socket. Please use the supply cable to connect it to the mains. Release valve Please make sure the voltage is in adequation with Temperature variations during use and inactivity the product indications.
-
Page 6: Menus And Functions
IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 6 - Menus and functions Access the internal menu by pressing MODE. To access a submenu, press MODE again. Press SETUP to configure the selected function. The IPairLED-5x12six projectors feature several DMX modes to be fully compatible with different remote controls and projectors. - Page 7 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English Ultra-violet: 0 - 100% RVBWAU Dimmers (continuation) Strobe speed : FS.00 = No strobe ; FS.99 = Full speed Auto mode Auto mode speed This Dimmer concerns COLOR, MACROS, DIMMERS RVBWAUV and USER modes.
- Page 8 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English Allows you to activate the automatic display shutdown: - ON means the display will remain lit. - OFF means the display will automatically shutdown after a 20-second period of inactivity. Press one of the menu button to keep it lit. Extra options Activates or deactivates the use of an infrared remote control to control the projector.
- Page 9 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 7 - DMX modes and their functions 7.1 - 6-channel mode RGBWAUV = DMX values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255...
- Page 10 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 7.4 - 3-channel mode : Fixed colours, Macros / Dimmer, Speed and Sound = CHANNEL 1 CHANNEL 2 CHANNEL 3 000 - 005 006 - 010 011 - 015 Orange 016 - 020 Yellow 021 - 025...
- Page 11 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 7.5 - 10-channel mode = RGBWA+UV/Fixed colours,Macros/Dimmer / Strobe / Macros speed= CH 10 CH 9 CH 8 Amber White Blue Green 000 - 005 (000 - 255) (000 - 255) (000 - 255) (000 - 255) (000 - 255)
- Page 12 IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 7.6 - 7-channel mode, compatible with RGBW projectors = DMX values Effects CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100%...
-
Page 13: Infrared Remote Control
IPairLED-5x12six - 5x12W 6-in-1 LEDs, airDMX, battery-operated waterproof projector English 8 - Infrared remote control Button Action BlackOut Projector OFF Gives you access to the 30 static colours, and to macros. Use the Select Prog number keys 0 to 9, then use the + and - keys. The action of this key depends on the mode of the projector : - If the projector is using a macro or is in auto mode, this key acts on the speed. - Page 14 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the CONTEST ® products on www.contest-lighting.com ®...
