Summary of Contents for Contest IPFLOOD5X15QC

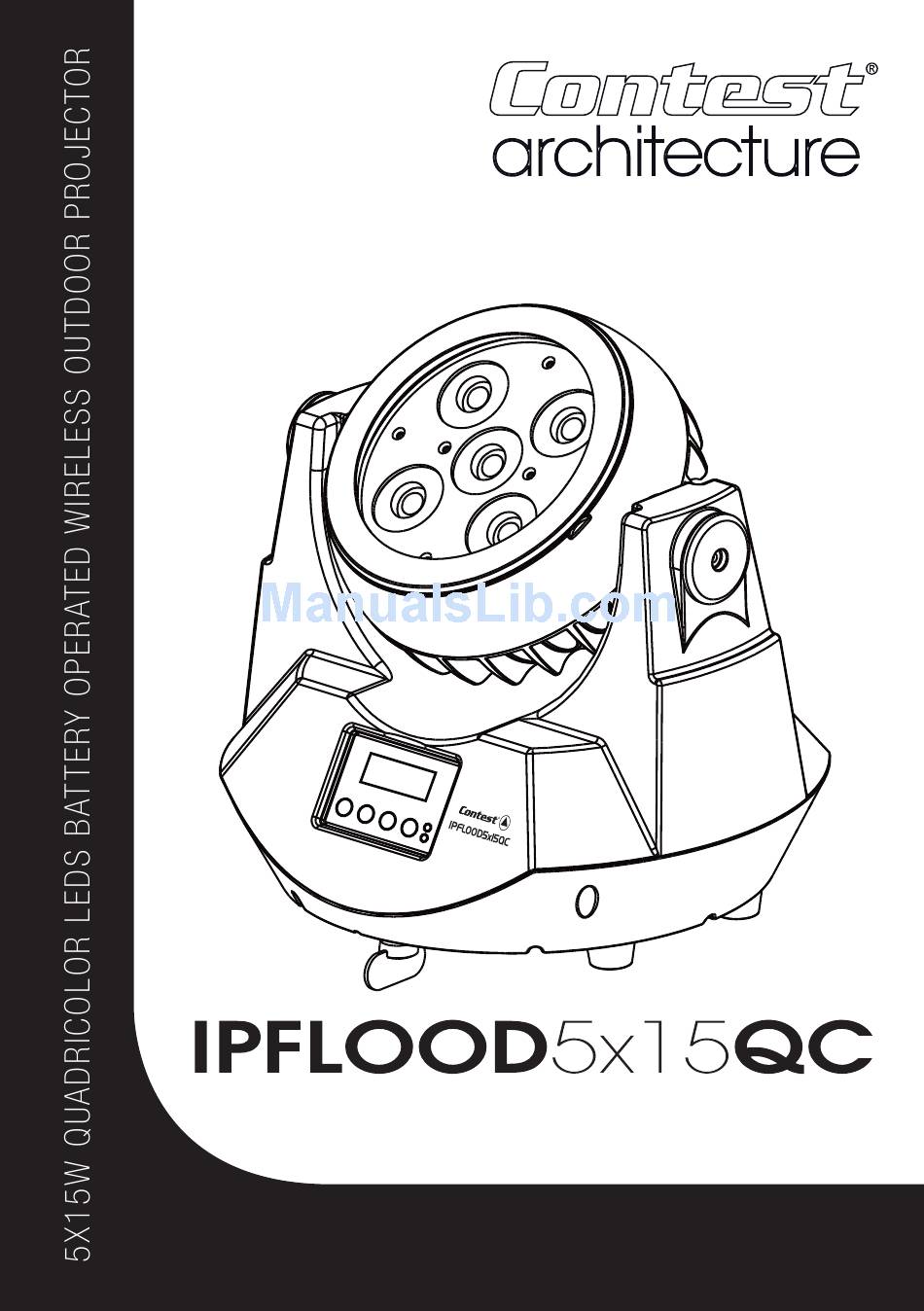

- Page 1 USER GUIDE 10263 - Version 1 / 01-2015...
- Page 2 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Page 2...
-
Page 3: Safety Information
IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 1 - Safety information Important safety information This product contains non-isolated electrical com- Any maintenance procedure must be performed by a ponents. Do not undertake any maintenance opera- CONTEST authorised technical service. Basic clea-... - Page 4 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
-
Page 5: Technical Specifications
IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 2 - Technical specifications • Optical - 5x15W quadricolor LEDs (50,000 hours) - Light output 5810 lux at 3 m - Beamwidth: 17° to 43° with the Frost filter - Removable Frost filter •... - Page 6 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 4 - Description 1 - LEDs 2 - Display 3 - MENU/ESC button Enters/leaves menus. Allows you to browse through menus and change values. 4 - UP button : Allows you to browse through menus and change values.
- Page 7 1 - Attach Omega holders or hook clamps to the Quick-Lock systems. 2 - Position your Omega - Quick-Lock systems on top of the drilled holes located below the IPFLOOD5x15QC. 3 - Rotate the Quick-Lock wing nuts a quarter turn and use a safety cable to secure the projector.
-
Page 8: Remote Control
IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 6 - DMX cabling and addressing 6.1 - DMX cabling Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head. - Page 9 1 - A DMX controller 2 - A compatible wireless transmitter such as the Contest® WDMX-ERIP 3 - The IPFLOOD5x15QC projector equipped with the wireless DMX receiver 2 - The DMX signal indicator (page 6, number 8) 1 - Red/green rapid flashing : connecting to a DMX transmitter.
- Page 10 - The DMX signal indicators of all the projectors then lits in red. 7 - Dashboard The IPFLOOD5x15QC features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu.
- Page 11 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Menu This menu allows you to visualise the moving head running time, its temperature, and the current version of the internal software. Submenus Values Description Current running time since the unit was last switched on.
- Page 12 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Menu This menu allows you to configure the projector reactions, adjust the ventilation, customise the display and reset all functions to factory settings. Lower-level Submenus Values Description menus Activates addressing via a DMX controller.
- Page 13 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Menu Allows you to manually control each function. Submenus Values Description Red level settings from 000 - 255 Blue level settings from 000 - 255 And so on. Menu...
- Page 14 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English Menu This menu allows you to select the programs assigned to each of the 3 program groups, edit the 10 built-in programs and edit the 250 scenes forming these programs.
- Page 15 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 7.8 Dimmer modes 100% t (ms) Fall Rise time time From 0 to 255 with a 0 second fading time From 0 to 255 with a 1 second fading time...
- Page 16 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 8 - Modes and DMX values MODES Values Functions 4 Ch 6 Ch 8 Ch 11 Ch 000 - 255 Red : From 0 - 100% 000 - 255 Green : From 0 - 100%...
- Page 17 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English MODES Values Functions 4 Ch 5 Ch 11 Ch 12 Ch 190 - 196 Colour macro 27 197 - 203 Colour macro 28 204 - 210 Colour macro 29...
- Page 18 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 10 - Photometric datas Intensity (lux)(43°) 2572 1140 Intensity (lux)(17°) 12960 5810 3253 17° 43° Distance (m) Ø 0,61 Ø 0,91 Diameter (m) (17°) Ø 1,22 Ø 1,57 Ø 2,35 Diameter (m) (43°)
- Page 19 IPFLOOD5x15QC - 5x15W quadricolor LEDs battery operated wireless outdoor projector English 12 - Notes Page 19...
- Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
