Summary of Contents for Contest IPZOOM3x15QC

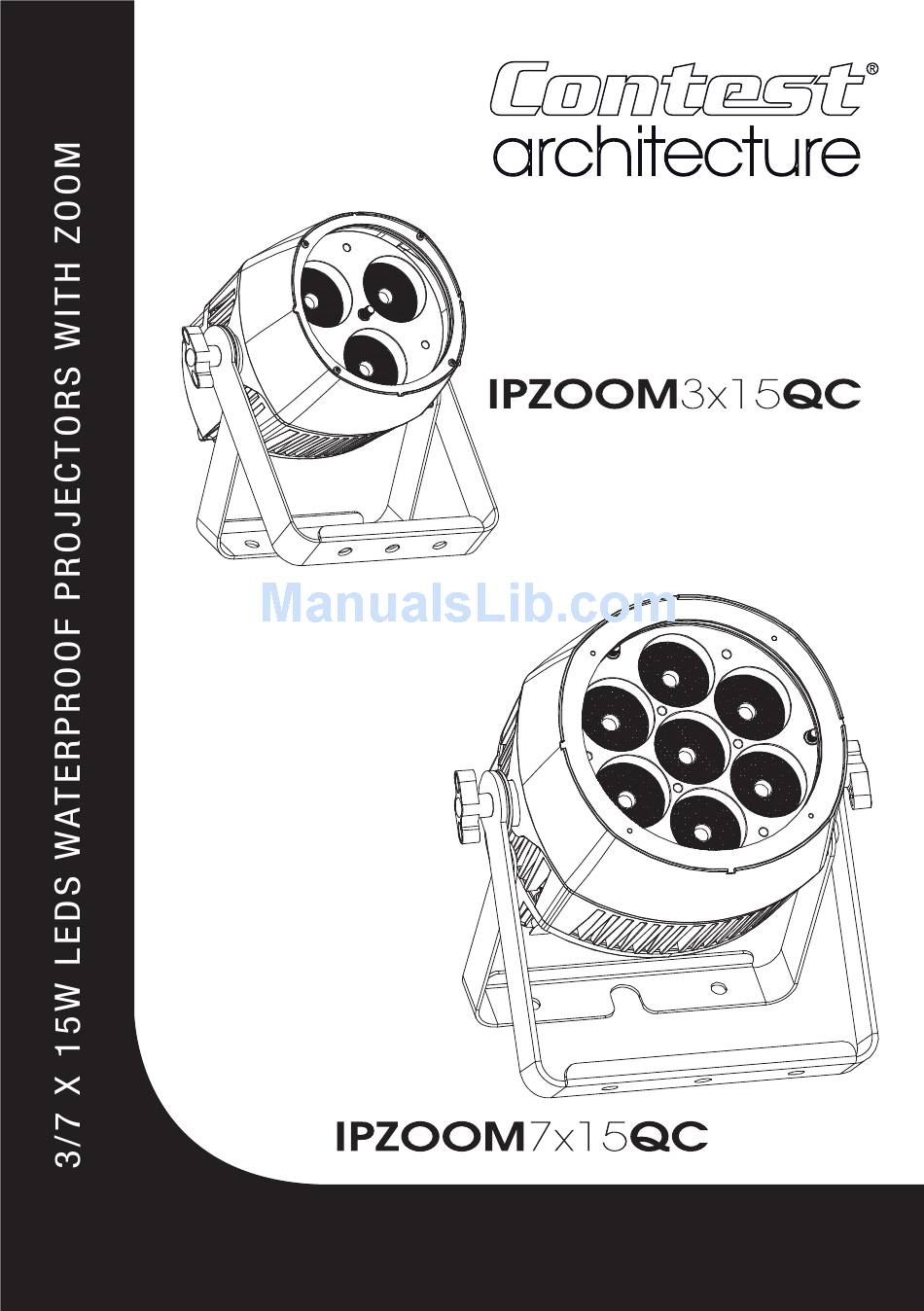

- Page 1 GUIDE DE L’UTILISATEUR USER GUIDE 10705/10706 - Version 1 / 02-2017 10656-10657- Version 1 / 02-2017...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 3: Technical Specifications
Power / 2 poles + earth power cord • Master/Slave Mode • Manual Mode Connectors › DMX IN and OUT via 3-pin XLR for the IPZOOM3x15QC and ® 5-pin for the IPZOOM7x15QC - SEETRONIC plug with sealing cap. POWER IN/OUT via 3-pin SEETRONIC ®... - Page 4 ENTER Button 100 kilos to support your IPZOOM7x15QC or 60 Kilos to Allows you to enter sub-menus and apply changes. support your IPZOOM3x15QC. UP and DOWN buttons Allows you to increase or decrease parameter values. Pressure compensation valve Temperature changes between periods of activity and inactivity affects the internal pressure of the projector.
-
Page 5: Internal Menu
IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display will indicate: Update Wait ... The projector will then check for available updates. It will then initialise, and the display will indicate: IP ZOOM IP ZOOM 3x15QC... - Page 6 IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English TimeInfo Displays the number of hours since the projector was Current last activated. Resets to 0 when the projector shuts off. TimeInfo Displays the number of hours since the first time the TotalTim projector was activated.
- Page 7 IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 4.3 Dimmer modes 100% t (ms) Rise time Fall time From 0 to 255 with fade time of 0 second From 0 to 255 with fade time of 1 second Dimmer modes Rise time in millisecond Fall time in millisecond Rise time in millisecond Fall time in millisecond...
-
Page 8: Dmx Modes
IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 5 - DMX modes The projector enters DMX mode as soon as an incoming DMX signal has been detected. 5.1 - 1-channel mode Channel Values Action Colour and macros 000 - 007 LED off 008 - 015 016 - 023... - Page 9 IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 5.2 - 5-channel mode Channel Values Action 000 - 255 000 : black out - 255 : 100% Green 000 - 255 000 : black out - 255 : 100% Blue 000 - 255 000 : black out - 255 : 100%...
- Page 10 IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 5.4 - 9-channel mode (next and last part) Dimmer 000 - 255 Adjustable output from 0 to 100% Channel Values Action Strobe 000 - 031 LED off 032 - 063 LED on 064 - 095 Strobe effect at increasing speed...
- Page 11 IPZOOM3/7x15QC -3/7 x 15W LEDs waterproof projectors with zoom English 6 - Macros composition Macros composition Macro 1 Sequence: Red, Orange, Yellow, Green, Cyan, Blue, Pink, Magenta, Cold White, Warm White: step-mode Macro 2 Sequence: Red, Vert, Blue, White + Pastel colours: step-mode Macro 3 Red to Yellow crossfade Macro 4...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
