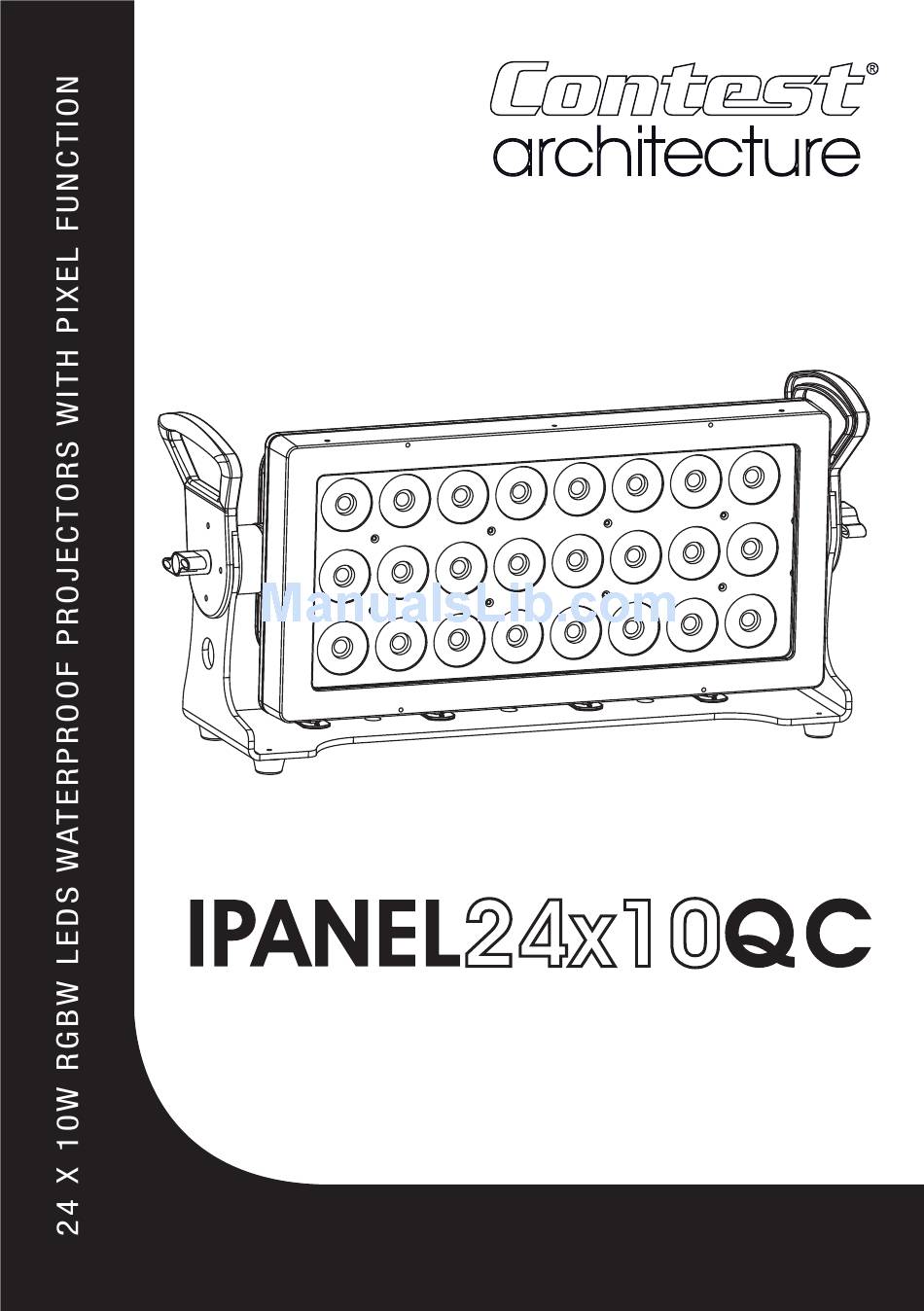

- Page 1 GUIDE DE L’UTILISATEUR USER GUIDE 10705/10706 - Version 1 / 02-2017 10794 - Version 1 / 01-2018...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 3: Technical Specifications
IPANEL24x10QC -24 x 10W LEDs waterproof projectors with pixel function English 2 - Technical specifications Optical Connectors › LEDs : 24x 10W RGBWA LEDs › DMX IN and OUT via molded cord 3-pin plug › Light output : › POWER IN/OUT via molded cord 3-pin plugs •... - Page 4 IPANEL7x10QC -24 x 10W LEDs waterproof projectors with pixel function English 3 - Overview MODE ENTER UP DOWN POWER POWER IPANEL MADE IN CHINA Imported By HITMUSIC S.A.S. - Parc d’activités CAHORS SUD - 46230 FONTANES Power input Power output ©...
-
Page 5: Internal Menu
IPANEL24x10QC -24 x 10W LEDs waterproof projectors with pixel function English 4 - Internal menu 4.1 - Initialisation Upon initialisation, the display will indicate: Update Wait ... The projector will then check for available updates. It will then initialise, and the display will indicate:... - Page 6 IPANEL7x10QC -24 x 10W LEDs waterproof projectors with pixel function English Allows you to turn off the backlight when the screen has Backligh been inactive. From 1 to 60 seconds. Allows you to lock menu buttons. LCD.Set For Key Lock ON : Press the MODE button for 3 seconds Key Lock to unlock them again.
- Page 7 IPANEL24x10QC -24 x 10W LEDs waterproof projectors with pixel function English EditUser Step NB Configures the number of steps included in the user Step NB 01 - 20 program (max. 20 steps). EditUser Step Allows you to select a step to modify or create.
-
Page 8: Dmx Modes
IPANEL7x10QC -24 x 10W LEDs waterproof projectors with pixel function English 5 - DMX modes The projector enters DMX mode as soon as an incoming DMX signal has been detected. 5.1 - 2-channel mode Channel Values Action Colour and macros 000 - 007 LED off 008 - 013... -
Page 9: 6-Channel Mode
IPANEL24x10QC -24 x 10W LEDs waterproof projectors with pixel function English 5.3 - 6-channel mode Channel Values Action 000 - 255 000 : black out - 255 : 100% Green 000 - 255 000 : black out - 255 : 100%... - Page 10 IPANEL7x10QC -24 x 10W LEDs waterproof projectors with pixel function English 5.4 - 9-channel mode (next and last part) 062 - 067 Warm White 068 - 073 Full power 074 -079 Pastel Pink 080 - 085 Pastel Apricot 086 - 091 Very pastel Ocer 092 - 097 Green/Pastel Yellow...
- Page 11 IPANEL24x10QC -24 x 10W LEDs waterproof projectors with pixel function English Green group 3 000 - 255 000 : black out - 255 : 100% Blue group 3 000 - 255 000 : black out - 255 : 100% White group 3...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
