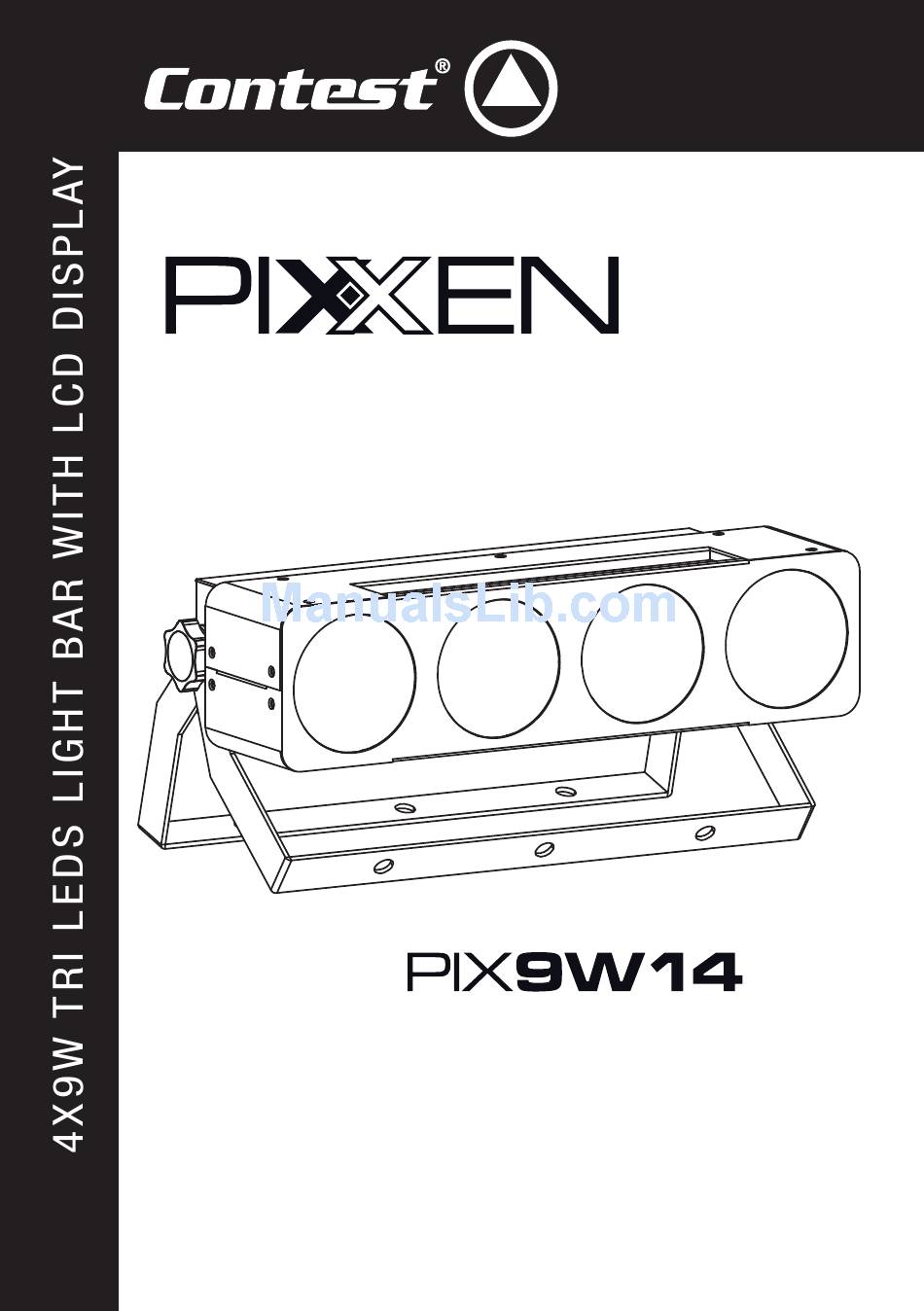

- Page 1 USER GUIDE 10134 - Decembre 2013 Version 1...
-
Page 2: Safety Information
Any maintenance procedure must be performed by a CONTEST authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. - Page 3 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English Instructions and recommendations 1 - Please read carefully : 12 - Cleaning precautions : We strongly recommend to read carefully and understand Unplug the product before attempting any cleaning the safety instructions before attempting to operate this unit.
-
Page 4: Technical Specifications
PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 2 - Main characteristics This projector is equipped with 4x9W tricolour LEDs with an optical system designed to focus beams and have more impact. The PIX9W14 is designed for ambient lighting or decorations, but also for animation effects thanks to its sequencing programs accross several projectors. - Page 5 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 4 - Description PIX9W14 4 x 9W Tricolor Pixel Bar DMX IN Power input socket Menu buttons Allows you to plug the projector. MODE button Please make sure the voltage is in adequation with the product Allows you to access menus and select a function indications.
-
Page 6: Internal Menu
PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 5 - Internal menu 5.1 - Submenus and functions MODE ENTER UP and DOWN Action 1 : Colours and macros Fixed colours selection and sequences. 1 : Selection selection In this mode the LEDs change their colour at the same time. - Page 7 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 5.2 - Macros and colours details Cool white Orange Warm white Yellow Colour macro 1: step, with speed settings Green Colour macro 2: step, with speed settings Cyan Colour macro 3: step, with speed settings Blue Colour macro 4: fade, with speed settings Pink...
- Page 8 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 6 - The various DMX modes 6.1 - 2-channel mode Channel 1 Channel 2 000 - 010 011 - 020 021 - 030 Orange 031 - 040 Yellow 000 - 255 : if channel 1 is set between 011 041 - 051 Green and 112...
- Page 9 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 6.4 - 5-channel mode DMX values Effect CHANNEL 1 000 - 255 Red from 0 - 100% CHANNEL 2 000 - 255 Green from 0 - 100% CHANNEL 3 000 - 255 Blue from 0 - 100% CHANNEL 4...
- Page 10 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English 6.6 - 12-channel mode Channel DMX value Function Channel 1 000 - 255 LED1 Red from 0 - 100% Channel 2 000 - 255 LED1 Green from 0 - 100% Channel 3 000 - 255 LED1 Blue from 0 - 100%...
- Page 11 PIX9W14 - 4x9W TRI LEDS light bar with LCD display English Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com ® CONTEST...
