Summary of Contents for Contest GoboBeam

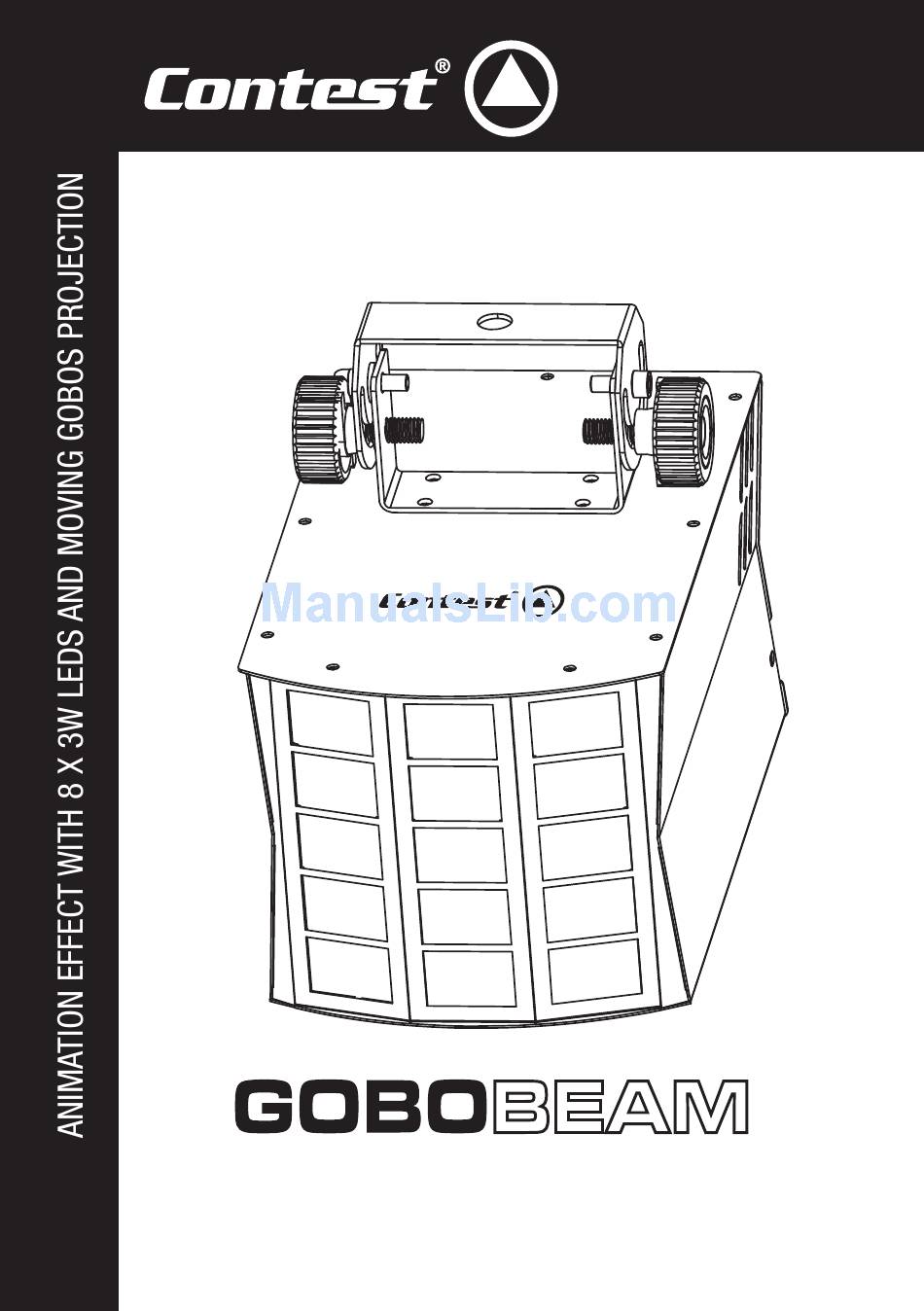

- Page 1 USER GUIDE 10662- Version 1 / 02-2017...
-
Page 2: Important Safety Information
GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection English 1 - Safety information WARNING : This unit contains no user-serviceable parts. Do not open the housing or attempt any maintenance by yourself. In the Important safety information unlikely even your unit may require service, please contact your nearest dealer. -
Page 3: Caractéristiques
GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection English 2 - Caractéristiques Light sources Additional characteristics › 8 x 3W RGBA LED - 30 000 hours (approximately) › DMX input and output via 3-pin XLR ›... -
Page 4: Internal Menu
English GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection DMX output Display and menu buttons 3-pin female XLR plug hardwired as follows: Display - Pin 1: Mass Allows you to intuitively configure your device. Please refer to - Pin 2: Negative signal next paragraph for more details about the menu functions. -
Page 5: Dmx Modes
GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection English Sound sensitivity Allows you to adjust the microphone sensitivity. Saves The microphone is deactivated when values indicate 000. changes DMX signal failure behavior MASt : Active blackout mode... -
Page 6: 8-Channel Mode
GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection English 5.2 - 8-channel mode Channels Values Action Tilt 000 - 255 Tilt from 0 - 100% Dimmer 000 - 255 Dimmer from 0 - 100% Strobe... - Page 7 GOBOBEAM - Animation effect with 8 x 3W LEDs and moving gobos projection English 5.3 - 12-channel mode (second and last part) Channels Values Action 000 - 255 Red from 0 - 100% Green 000 - 255 Green from 0 - 100%...
- Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
