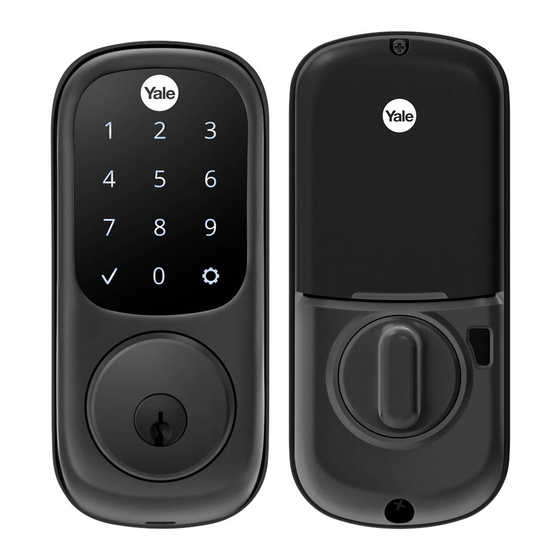

Assa Abloy Yale Real Living Assure Lock YRD216-ZW3 Integrator Manual

Z-wave plus v2 system integrators guide
Hide thumbs Also See for Yale Real Living Assure Lock YRD216-ZW3:
Table of Contents

Advertisement

Quick Links

Yale Locks
Z-Wave Plus ™ v2 System Integrators Guide
Yale Assure Electronic Deadbolts
YRD216-ZW3, YRD226-ZW3, YRD256-ZW3,
YRC216-ZW3, YRC226-ZW3, YRC256-ZW3,
YRD652-ZW3, NF-YRD622-ZW3, NF-YRD612-ZW3,
YRC652-ZW3, NF-YRC622-ZW3, NF-YRC612-ZW3,
YRD622-ZW3, YRD642-ZW3, YRC622-ZW3, YRC642-ZW3,
YRD410-ZW3, YRD420-ZW3, YRD430-ZW3, YRD450-ZW3
Document Revision: 1.9
November 2022
1

Advertisement

Table of Contents
loading

Related Manuals for Assa Abloy Yale Real Living Assure Lock YRD216-ZW3

Summary of Contents for Assa Abloy Yale Real Living Assure Lock YRD216-ZW3

  • Page 1 Yale Locks Z-Wave Plus ™ v2 System Integrators Guide Yale Assure Electronic Deadbolts YRD216-ZW3, YRD226-ZW3, YRD256-ZW3, YRC216-ZW3, YRC226-ZW3, YRC256-ZW3, YRD652-ZW3, NF-YRD622-ZW3, NF-YRD612-ZW3, YRC652-ZW3, NF-YRC622-ZW3, NF-YRC612-ZW3, YRD622-ZW3, YRD642-ZW3, YRC622-ZW3, YRC642-ZW3, YRD410-ZW3, YRD420-ZW3, YRD430-ZW3, YRD450-ZW3 Document Revision: 1.9 November 2022...

  • Page 2: Table Of Contents

    Contents Revision History ..................4 Yale Z-Wave Plus ™ Product Info ..............5 Network Operations ..................5 Enroll/Add device to network (SmartStart) ........... 5 Enroll/Add device to network (Classic Inclusion Mode) for Assure Lock [YRC/D216/226/256/622/642/652, NF-YRC/D612/622] ........5 Enroll/Add device to network (Classic Inclusion Mode) for Assure 2 Lock [YRD410/420/430/450] ................
  • Page 3 Command Class Application Status, Version 1 ..........28 Command Class Transport Service, Version 2 ..........28 Command Class Supervision, Version 1 ............28 Command Class Indicator, Version 3* ............28 Command Class Basic, Version 2* ............. 29 * This command class requires security.

  • Page 4: Revision History

    Revision History Rev. Details Initial Release Made the following updates: • Added Command Class Clock section. • Added Clock Report to the Association Group Info commands list. • Marked Time as a secure command class. • Added the following note to Time, Time Parameters, and Clock command classes: “If the controller does not support either the Time CC, Time Parameters CC, or Clock CC, then scheduled users will not have access.”...

  • Page 5: Yale Z-Wave Plus ™ Product Info

    Yale Z-Wave Plus ™ Product Info Manufacturer ID: ASSA ABLOY (0x0129) Z-Wave ™ Device Type: Door Lock Keypad Z-Wave Role Type: Listening Sleeping Slave (LSS) ™ Network Operations Enroll/Add device to network (SmartStart) SmartStart enabled products can be added into a Z-Wave network by scanning the ™...

  • Page 6: Enroll/Add Device To Network (Classic Inclusion Mode) For Assure 2 Lock [Yrd410/420/430/450]

    Enroll/Add device to network (Classic Inclusion Mode) for Assure 2 Lock [YRD410/420/430/450] Un-enroll/Remove device from network (Exclusion Mode) • Enter the 4–8-digit Master PIN code followed by the key. • Press the key followed by the key. • Press the key followed by the key.

  • Page 7: Supported Command Classes

    * This command class requires security. The Manufacturer Specific command class reports the following information: • Manufacturer ID: 0x0129 o This is the manufacturer ID assigned to ASSA ABLOY. • Product ID: o The Product ID can be used to differentiate between hardware platforms, as well as between ZW2 and ZW3.
  • Page 8 0x46C2 for YRC226-ZW3 (Interconnected Keyed Touch Screen ▪ Deadbolt) 0x46C5 for YRC256-ZW3 (Interconnected Keyless Touch Screen ▪ Deadbolt) 0x4DD5 for YRD652-ZW3 (2 Generation Keyless Touch Screen ▪ Deadbolt) 0x4DD2 for NF-YRD622-ZW3 (2 Generation Keyed Touch ▪ Screen Deadbolt) 0x4DD1 for NF-YRD612-ZW3 (2 Generation Keyed Push Button ▪...

  • Page 9: Command Class Security, Version 1

    o 0x8103 for YRC/D622-ZW3 & YRC/D642-ZW3 (2nd Generation Fire Rated Touch Screen Deadbolt) o 0x8104 for YRD410-ZW3, YRD420-ZW3, YRD430-ZW3 & YRD450-ZW3 (2nd Generation Assure Deadbolt) Table 1 - First 2 Digits of Product ID Z-Wave™ Type Platform Hex Value [0x8004/0x8002]-ZW2 0 0x06 [0x8004/0x8002]-ZW3 0 0x46...

  • Page 10: Command Class Power Level, Version 1

    Command Class Power Level, Version 1* * This command class requires security. This command class has been implemented per the Z-Wave Specification. ™ The Power Level command class was implemented to allow controllers to set the transmit power for the door lock. This could be useful in large networks with many nodes, so that the lock can find working routes back to the controller while transmitting at a lower power.

  • Page 11: Command Class Battery, Version 1

    For Firmware Target 0, the Firmware 0 Version (0x02) and Sub version (0x22) translate to module firmware decimal value of “2.34”. For Firmware Target 1 (the data under vg1), Firmware Version (0x2C) and Sub version (0x00) translate to lock firmware decimal value of “4.3.00”. Command Class Battery, Version 1* * This command class requires security.

  • Page 12: Command Class Door Lock, Version 4

    Command Class Door Lock, Version 4* * This command class requires security. Yale Z-Wave Plus ™ locks support three door lock modes: Door Secured (0xFF), Door Unsecured (0x00), and Door Unsecured with timeout (0x01). When Auto Relock is enabled, the lock will automatically relock after all unlock events. Yale Z- Wave Plus ™...
  • Page 13 Table 2 – Expected Reports for Set/Get Commands Slots 256- Command Slots 1-250 Slot 251 Slots 252-254 Slot 255 User Code CC User Code User Code User Code v1/v2: User User Code Report Report Report Report Code Get User Code CC Master User Code User Code...
  • Page 14 Table 3 - User ID Status User Code CC v1 vs v2 User ID Status User Code CC v1 Set User Code CC v1 Report Value Description Value Value Available 0x00 0x00 Enabled / Grant Access 0x01 0x01 0x02 Disabled 0x03 0x03 Messaging:...
  • Page 15 User ID User Code CC v2: Extended User Code CC v2: Extended User Status User Code Set Code Report Value Description Value Value Available 0x00 0x00 Enabled / 0x01 0x01 Grant Access Disabled 0x02 0x02 Messaging: The user code is accepted, but the lock does not grant access to the...

  • Page 16: Command Class Time Parameters, Version 1

    Command Class Time Parameters, Version 1* * This command class requires security. The controller must set the Time Parameters in the lock anytime the lock loses power. If the time is not set by the controller, then user codes with schedules applied to them cannot be granted access.

  • Page 17: Command Class Firmware Update Meta Data, Version 5

    Firmware Target 0 is used to determine the correct Z-Wave ™ processor image to download. ID 1 is always 0xA5, to signal this is an ASSA ABLOY Z-Wave ™ image, and ID 2 is specific to the region, with the lower nibble being 0x0 and the upper nibble being the value in Table 4 - Region-Specific Values for Firmware ID 0.

  • Page 18: Command Class Association, Version 2

    After an OTA is performed (a Firmware Update Status Report should return with successful), there is an additional step internally where we write/apply the image to the lock/module. When the image is being applied to the lock, the lock is unresponsive until completion of the apply image.

  • Page 19: Command Class Association Group Info, Version 3

    Command Class Association Group Info, Version 3* * Command Class Requires Security Yale locks support the Lifeline Association Group. Table 5 - Association Table Group ID Maximum Nodes Description Commands • Command_Class Battery Battery_Report • Command_Class_Configuration Configuration_Report • Command_Class_Notification Notification_Report •...
  • Page 20 The following are the actions to trigger the reports: Table 6 – Lifeline Report Trigger Table Report Command RF Trigger Manual Trigger Battery Report Any RF Lock Operation when lock is Any manual/keypad Lock Operation under the battery thresholds when lock is under the battery thresholds or Power Cycle Lock Configuration Report Configuration Set...

  • Page 21: Command Class Notification, Version 8

    Command Class Notification, Version 8* * This command class requires security. Table 7 - Notification Table Alarm Alarm Notification Alarm Reports Description Event type Level Type 0x01 Deadbolt jammed while locking 0x06 0x0B Deadbolt Jammed 0x09 0x02 Deadbolt jammed while unlocking 0x06 0x0B 0x (01 –...
  • Page 22 Manual Unlock 0x16 0x01 By key cylinder or inside thumb turn 0x06 0x02 RF Operate Lock 0x18 0x01 by RF module 0x06 0x03 RF Operate Unlock 0x19 0x01 by RF module 0x06 0X04 Auto Lock Operate 0x1B 0x01 Auto re-lock cycle complete, locked. 0x06 0x09 Locked...
  • Page 23 All Schedule Types 0x(01-max Schedule(s) has been enable/disabled for 0x65 0x06 0xFE Enabled/Disabled users) specified user ID 0x00 Master code was changed at keypad 0x06 0x12 Master Code changed 0x00 Master code was changed over RF 0x06 0x0E 0x70 0x(01-max User added.
  • Page 24 Power to the lock was restored and the Door Lock needs locks RTC was cleared. The controller 0x82 0x00 0x08 0x01 Time set should set the time to ensure proper logging. Low Battery Starting at 4.0V (0x8002 & 0x8004); 0x(Current 0xA7 4.6V (0x8109, 0x810A, 0x8103 &...

  • Page 25: Command Class Configuration, Version 4

    Command Class Configuration, Version 4* * This command class requires security. Table 8 - Configurable Parameters Length of Info Configuration Properties Info String (max length Param. allowed Num. Name Length Default is 90) 0x02 (Low Volume) Set Volume Level to high (1), [0x8002, low (2), or silent (3).
  • Page 26 Adjust the limit for wrong Wrong Code code entries allowed by your Entry Limit 1 byte 0x03 0x0A 0x05 lock. Set the language to English 0x01 0x03 0x01 (1), Spanish (2), or French Language* 1 byte (English) (French) (English) (3). Adjust the time your lock is Shut down 0x0A (10...
  • Page 27 One Touch 0x00 0xFF 0xFF Set One Touch Locking Locking 1 byte (Disable) (Enable) (Enable) feature to enable or disable. Privacy 0x00 0xFF 0x00 Set Privacy Button feature to Button 1 byte (Disable) (Enable) (Disable) enable or disable. Lock Status 0x00 0xFF 0x00...
  • Page 28 Command Class Application Status, Version 1 This command class has been implemented per the Z-Wave ™ Specification. Command Class Transport Service, Version 2 This command class has been implemented per the Z-Wave ™ Specification. Command Class Supervision, Version 1 This command class has been implemented per the Z-Wave ™...
  • Page 29 Command Class Basic, Version 2* * This command class requires security. This command class is mapped to Door Lock CC: Table 11 – Basic Mapping Overview Basic Command Door Lock Mapped Command Basic Set (Value) Door Lock Operation Set (Door Lock Mode) Basic Report (Current Value = 0x00) Door Lock Operation Report (Door Lock...
  • Page 30 Yale Assure Lock ® ® Electronic Interconnected Push Button ® Installation and Programming Instructions (YRC216/YRC612) Inside Outside of Door of Door 4" Touchscreen Shown - 5.5" Available Before you begin Network Module (Optional) DOWNLOAD THE BILT APP for step-by-step installation instructions &...
  • Page 31 Before You Begin Template Network Module (Optional) 1/8" 3/32" 1/8" 1" 2-1/8" 4-1/2" (114) 1-3/8" (35mm) Min to 1-3/4" (44.5mm) Max YRL EMICL PBINSTL FUL Rev B...
  • Page 32 Mark Door Reference Lines EXISTING 2-3/8" or 2-3/4" Backset Template YRL EMICL PBINSTL FUL Rev B...
  • Page 33 Preparing Door (if necessary) Template 4" 5.5" 2-3/8" Ø2-1/8" Ø1" 2-3/4" Drill holes 1/2 way thru door then complete from other side to prevent splitting. YRL EMICL PBINSTL FUL Rev B...
  • Page 34 Installing Strike Plates 7-16 / 8-32 x 1" UNCWS Frame 1" Dia. x 1"Deep Frame Inside of Door 1" Dia. x 1/2"Deep Door Frame YRL EMICL PBINSTL FUL Rev B...
  • Page 35 Determining Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “ ”, Hinges Left. Left Hand Reverse " ", Hinges Left. Open Inward.
  • Page 36 Changing Handing (if necessary) 4" Left Hand to 4" Right Hand Shown 4-24 x 1/4" PPHMS DO NOT TAMPER WITH OR LOOSEN E-CLIP AND ITS ASSEMBLY DO NOT LOOSEN THESE 6 SCREWS OR REMOVE COVER YRL EMICL PBINSTL FUL Rev B...
  • Page 37 Changing Handing (if necessary) continued YRL EMICL PBINSTL FUL Rev B...
  • Page 38 Lockset Handing Configurations For 5.5" For 5.5" For 4" 4" Right Hand For 4" 4" Left Hand Test Lever and Thumbturn After handing is changed, check that lever and thumbturn rotate freely. YRL EMICL PBINSTL FUL Rev B...
  • Page 39 Installing Fire Cups Inside of Door Both Fire Cups and a marked Latchbolt must be used to qualify for listing. YRL EMICL PBINSTL FUL Rev B...
  • Page 40 Adjusting Deadbolt Latch (If adjustable deadbolt latch provided) default 2-3/8" position optional 2-3/4" position Pull Press YRL EMICL PBINSTL FUL Rev B...
  • Page 41 Installing Deadbolt Latch & Latchbolt 7-16 / 8-32 x 1" UNCWS Inside of Door Bolt must be in retracted (unlocked) position before installing. Ensure arrow stamped on deadbolt Choose latchbolt based on backset. (2-3/8" or 2-3/4") Curved edge of latchbolt faces direction door closes.
  • Page 42 Installing Exterior Deadbolt M6x55 PPHMS Inside of Door YRL EMICL PBINSTL FUL Rev B...
  • Page 43 Installing Lock Chassis 10-32 x 1-1/2" PPHMS Inside of Door YRL EMICL PBINSTL FUL Rev B...
  • Page 44 Securing Back Plate to Door #6-32 x 1/2" POHMS Inside of Door Drill two pilot holes Ø1/8" x 1/2" deep Two #6-32 x 1/2" POHMS screws must be used to qualify for listing. YRL EMICL PBINSTL FUL Rev B...
  • Page 45 Testing Deadbolt & Latchbolt Operation Outside of Door YRL EMICL PBINSTL FUL Rev B...
  • Page 46 Attaching the Cable Assembly Test that cables are securely connected. Inside of Door Cable must be routed as shown to avoid interference with movement of lock. YRL EMICL PBINSTL FUL Rev B...
  • Page 47 Installing Interior Lock Orientation must match. Do not fasten lock to back plate until properly fitted. Inside of Door Turn thumbturn to adjust slot orientation. YRL EMICL PBINSTL FUL Rev B...
  • Page 48 Installing Interior Lock continued 10-32 x 5/8" POHMS 6-32 x 1" PPHMS Inside of Door DO NOT LOOSEN THIS SCREW YRL EMICL PBINSTL FUL Rev B...
  • Page 49 Installing Interior Lever Inside of Door " SNAP " Inside of Door Pull lever to ensure it is secure. YRL EMICL PBINSTL FUL Rev B...
  • Page 50 Testing Final Latchbolt Operation Inside of Door Outside of Door YRL EMICL PBINSTL FUL Rev B...
  • Page 51 Testing Final Deadbolt Operation YRL EMICL PBINSTL FUL Rev B...
  • Page 52 Testing Final Deadbolt Operation If testing fails, go back to beginning of Step 11 and check installation. YRL EMICL PBINSTL FUL Rev B...
  • Page 53 Installing Optional Network Module DO NOT install network module with batteries in unit. Damage may occur. Installing Batteries & Cover Tighten screw to replace cover. Bolt must be in retracted (unlocked) position before installing batteries. YRL EMICL PBINSTL FUL Rev B...
  • Page 54 Handing the Lock AFTER installing batteries and cover AFTER a factory reset, create Master code. See 1 of Programming Instructions. After entering the Master code: Press Advanced Lock Settings Press to Select Press Handing the Lock Press to Select Press to complete Lock will cycle motor to complete handing.
  • Page 55 Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Bolt will not extend and motor is grinding a. Enter your Master code. b. With the bolt retracted, press menu Option 3 for Advanced Lock Settings. c.
  • Page 56 Changing Lock: Replacing Cylinder 1. To remove cylinder: A. Remove keypad from door. B. Remove rubber gasket. C. Remove two screws holding plastic guide in place. D. Remove plastic guide. E. Remove screw with washer holding cylinder in place (visible after removing plastic guide).
  • Page 57 Programming Instructions Low Battery Warning- Flashes RED Lock-out Mode- Keypad Flashes Interior Lock Privacy Mode Button Keypad Master Code must be created before any further programming. Max User Codes = 250 with Z-Wave Plus or ZigBee network module Max User Codes = 25 without network module or with iM1 network module Max User Codes - 12 with Bluetooth YRL EMICL PBINSTL FUL Rev B...
  • Page 58 Creating Master Code Creating a Master Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. Press Press Press Enter 4-8 digit Master Code.
  • Page 59 Creating User Codes Master code must be created first. *Max user codes = 250 with Z-Wave Plus or ZigBee network module Max user codes = 25 without network module or with iM1 network module Max user codes - 12 with Bluetooth Enter Master code Press...
  • Page 60 Unlocking Door with Code Enter PIN Press "Unlock" Code Chart Duplicate if necessary PIN Code Management (With Network Module - Up to 250 Users) User Type User Name PIN Code Master User User User User User User User User User User User User...
  • Page 61 Resetting Lock to Factory Default Interior Lock When resetting the lock, all user codes, including the Master code*, are deleted. All (4" Shown) programming features are reset to original default settings (see below). 1. Remove the battery cover and batteries. 2.
  • Page 62 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the keypad flashes 8 times and the lock beeps 3 times as well.
  • Page 63 Feature Programming Through Menu Mode Using Master code* 1. Enter 4-8 digit master code* followed by key. 2. Enter digit corresponding to the function to be performed followed by the key. *The Master code must be registered prior to any other programming of the lock. Note: After Master code is entered, lock will automatically hand itself.
  • Page 64 Programming Troubleshooting Symptom Suggested Action • Press each keypad button for response when pressed. • Check batteries are installed and oriented correctly (polarity) Lock does not respond – in the battery case. door is open and • Check batteries are in good condition; replace batteries* accessible.
  • Page 65 Product Support Tel 1-855-213-5841 • www.yalehome.com Yale® ,Yale Real Living® and Assure Lock® are registered trademarks of Assa Abloy Residential Group. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. © Copyright 2018. All rights reserved. Reproduction in whole or in part without the express written permission of Assa Abloy Residential Group is prohibited.
  • Page 66 • Insert or remove Yale Smart Module • Reinstall batteries • Reinstall battery cover 6. If you're adding a new Yale Smart Module, follow the instructions included with it Trusted every day Part of ASSA ABLOY P/N AYR202-ZW-INSTAL-FUL Rev F...
  • Page 67 © Copyright 2020. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Home is prohibited. Trusted every day Part of ASSA ABLOY P/N AYR202-ZW-INSTAL-FUL Rev F...
