Summary of Contents for Assa Abloy Yale Assure Lock YRC256-ZW3
Page 1

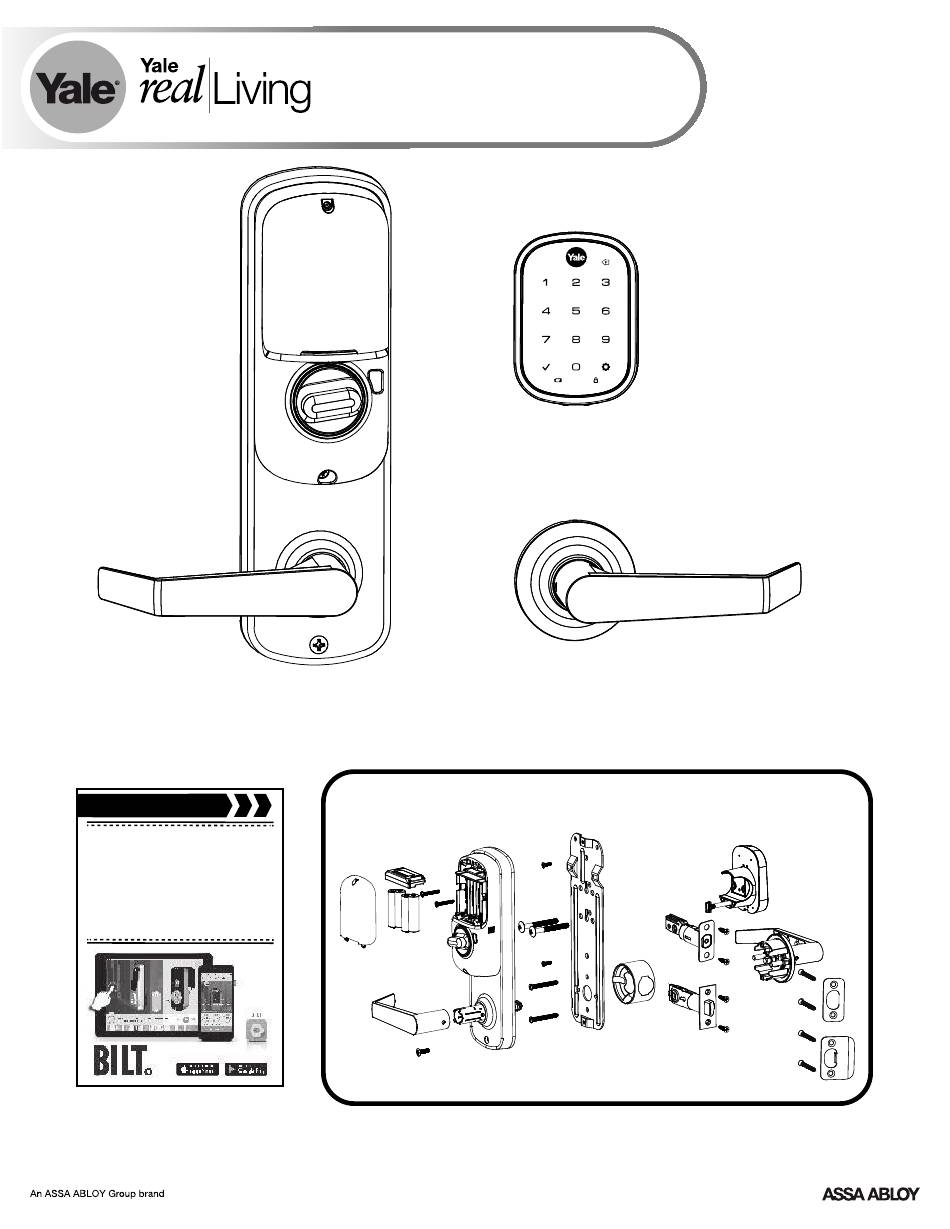

Yale Assure Lock ® ® Interconnected Key Free Touchscreen ® Installation and Programming Instructions (YRC256) Inside Outside of Door of Door 4" Shown - 5.5" Available Before you begin Smart Module DOWNLOAD (Optional) THE BILT APP for step-by-step installation instructions & to register your product Retrofitting or modifying this product may impact fire rating, safety features and warranty.
Page 5
Installing Strike Plates 7-16 / 8-32 x 1" UNCWS Frame 1" Dia. x 1"Deep Frame Inside of Door 1" Dia. x 1/2"Deep Door Frame P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 6
Determining Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “LH”, Hinges Left. Left Hand Reverse "LHR", Hinges Left. Open Inward.
Page 7
Changing Handing (if necessary) 4" Left Hand to 4" Right Hand Shown 4-24 x 1/4" PPHMS DO NOT TAMPER WITH OR LOOSEN E-CLIP AND ITS ASSEMBLY DO NOT LOOSEN THESE 6 SCREWS OR REMOVE COVER P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 9
Lockset Handing Configurations For 5.5" For 5.5" For 4" For 4" 4" Right Hand 4" Left Hand Confirm LH is Confirm RH is visible thru LH hole visible thru RH hole as shown for as shown for left hand installation. right hand installation.
Page 10
Installing Fire Cup Inside of Door Fire Cup and a UL marked Latchbolt must be used to qualify for UL listing. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 11
Adjusting Deadbolt Latch default 2-3/8" position optional 2-3/4" position Pull Press P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 12
Installing Deadbolt Latch & Latchbolt 7-16 / 8-32 x 1" UNCWS Inside of Door Bolt must be in retracted (unlocked) position before installing. Ensure arrow stamped on deadbolt is UP. Spacer collar must be used for 1" edge bore. Collar can be removed for Choose latchbolt 3/4"...
Page 13
Installing Exterior Deadbolt M6x44 PPHMS for standard door thickness shown Confirm bolt is retracted (unlocked). Choose through bolt appropriate Inside of Door for your door thickness. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 14
Installing Lock Chassis 10-32 x 1-1/2" PPHMS Inside of Door P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 15
Securing Back Plate to Door #6-32 x 1/2" POHMS Inside of Door Drill two pilot holes Ø1/8" x 1/2" deep Two #6-32 x 1/2" POHMS screws must be used to qualify for UL listing. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 16
Testing Latchbolt Operation Outside of Door P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 17
Attaching the Cable Assembly Inside of Door Test that cables are securely connected. Avoid interference with movement of lock when routing cable. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 18
Installing Interior Lock Inside of Door Turn thumbturn to adjust tailpiece orientation. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 19
Installing Interior Lock continued 10-32 x 5/8" POHMS 6-32 x 1" PPHMS Inside of Door DO NOT LOOSEN THIS SCREW P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 20
Installing Interior Lever Inside of Door "SNAP" Inside of Door Pull lever to ensure it is secure. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 21
Testing Final Latchbolt Operation Inside of Door Outside of Door P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 22
Testing Final Deadbolt Operation Confirm deadbolt operates smoothly with no resistance. If resistance, re- check installation and confirm mounting screws have not been over-tightened. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 23
Installing Optional Smart Module DO NOT install Smart Module with batteries in unit. Damage may occur. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 24
Installing Batteries & Cover "Welcome to Yale Real Living." Tighten screw to replace cover. Bolt must be in retracted (unlocked) position before installing batteries. P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 25
Handing the Lock AFTER installing batteries and cover or AFTER a factory reset, activate touchscreen and create Master PIN code. Lock will then automatically determine handing. See 1 of Programming Instructions for how to set master code. Congratulations, you've installed the Yale Assure Lock Interconnected Key Free Touchscreen (YRC256)! ®...
Page 26
Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Bolt will not extend and lock jam alarm occurs a. Confirm manual operation. b. Enter your Master PIN code. c. With the bolt retracted, press menu Option 3 for Advanced Lock Settings. d.
Page 27
Programming Instructions Exterior Escutcheon Interior Escutcheon "P" Key (Return to Previous) Speaker Lockout Mode Low Battery Indicator Failsafe 9 volt Privacy Battery Connection Button (Use Alkaline battery) Lock Activation Master PIN Code must be created before any further programming. Max User Codes = 250 with Z-Wave Plus or Zigbee network module Max User Codes = 25 without network module or with iM1 network module Max User Codes = 12 with Bluetooth P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A...
Page 28
Creating Master PIN Code Creating a Master PIN Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear key to continue."...
Page 29
Creating User PIN Codes Master PIN code must be created first. *Max user codes = 250 with Z-Wave or Zigbee network module Max user codes = 25 without network module or with iM1 network module Max user codes = 12 with Bluetooth "Menu Mode, enter number, press the gear key...
Page 30
Unlocking Door with PIN Code Enter PIN Code Press Code Chart Duplicate if necessary PIN Code Management (With Network Module - Up to 250 Users) User Type User Name PIN Code Master User User User User User User User User User User User...
Page 31
Resetting Lock to Factory Default When resetting the lock, all user codes, Interior Lock including the Master PIN code*, are deleted. All (4" Shown) programming features are reset to original default settings (see below). Reset Button 1. Remove the battery cover and batteries. Access 2.
Page 32
Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) PIN code access. When attempting to enter a code while the unit is in Lockout, the RED locked padlock will appear on the screen.
Page 33
Feature Programming Through Menu Mode Using Master PIN code* 1. Touch screen with back of hand or palm to activate. 2. Enter 4-8 digit master PIN code* followed by key. Lock Response: "Menu mode, enter number, press key to continue." 3.
Page 35
Ÿ Consult the dealer or an experienced radio/TV technician for help. Ÿ Warning: Changes or modifications to this device, not expressly approved by ASSA ABLOY Residential Group could void the user's authority to operate the equipment. Industry Canada: This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Page 36
• Insert or remove Yale Smart Module • Reinstall batteries • Reinstall battery cover 6. If you're adding a new Yale Smart Module, follow the instructions included with it Trusted every day Part of ASSA ABLOY P/N AYR202-ZW-INSTAL-FUL Rev F...
• Command Class Supervision • Command Class Indicator* • Command Class Basic* * Command Class Requires Security Association Table: Table 1 - Association Table Group Maximum Description Commands Nodes • Command_Class_Battery, V1 o Battery_Report • Command_Class_Configuration, V4 o Configuration_Report • Command_Class_Notification, V8 o Notification_Report •...
Page 42
Where Alarm 0x (01 – level represents Keypad Lock 0x12 0x06 0x05 user slot users) number Where Alarm 0x(01- level represents Keypad Unlock 0x13 user slot 0x06 0X06 users) number (0x00 = Master Code) by key cylinder 0x01 or inside thumb- 0x06 0x01 turn...
Page 43
user slot number Schedule(s) has Daily Repeating 0x(01- been set/erased Schedule 0x60 0x06 0xFE for specified Set/Erased users) user ID Schedule(s) has Year Day 0x(01- been set/erased Schedule 0x62 0x06 0xFE for specified Set/Erased users) user ID Schedule(s) has All Schedule 0x(01- been Types...
Page 44
0x00 alarm report. A disabled user Disabled user 0x(01- pin code was entered at 0x83 0x06 0xFE entered at the keypad users) keypad A valid user can be both a normal user and a Non-Access Valid user but 0x(01- user. If a non- outside of 0x84 access user is...
Page 45
** The Yale lock also supports a 3 low battery alarm: too low to operate. This alarm is sent out as a Battery Report (with value = 0xFF) through the Battery Command Class. This is the last low battery alarm level before the product stops functioning.
Configurable Parameters Table 3 - Configurable Parameters Info Configuration Properties Info String Param. Num. Name Format Length Default 0x01 Set Volume Level to Signed (High 0x03 0x02 (Low high (1), low (2), or Volume Integer 1 byte Volume) (Silent) Volume) silent (3).
Page 47
wrong code entry limit. Set the Operating Mode to normal 0x00 0x02 0x00 mode(0), vacation Operating Signed (Normal (Privacy (Normal mode(1) or privacy mode Integer 1 byte Mode) Mode) Mode) mode(2). Set One Touch One Touch Unsigned 0x00 0xFF 0xFF Locking feature to Locking Integer...
