MOD-1590 Backlit Reception Counter
Steps:
1) Connect power cords to Supernova lights.
2) Apply SEG Graphic to front frame.
See reverse side for SEG installation instructions.

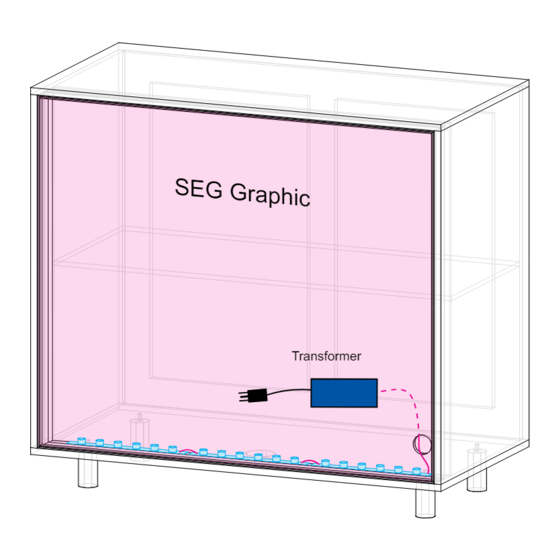

S E G G ra p h ic
Transformer

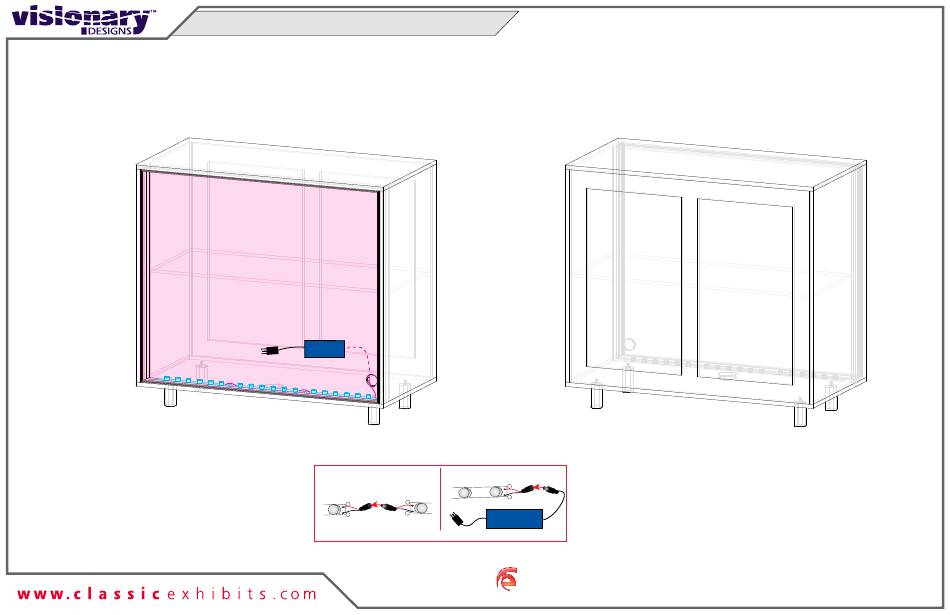

FRONT VIEW
BACK VIEW
Light to Light Attachment
Light to Transformer Attachment
+
Male
-
Female
Lights
+
+
Power
-
-
Transformer
96W / 4 Amp / 24V
Maximum of 7 lights per chain / 7 lights per Transformer
SETUP INSTRUCTIONS
