© 2023
Order #XXXXX
Item
Qty.
Description
1
1
38"h Q918 Vertical Extrusion
2
1
38"h Q918 Vertical Extrusion
3
1
38"h Q918 Vertical Extrusion
4
1
38"h Q918 Vertical Extrusion
5
1
38"h Q918 Vertical Extrusion
6
1
38"h Q918 Vertical Extrusion
7
1
32.155"w Z45 Horizontal Extrusion
8
1
32.155"w Z45 Horizontal Extrusion
9
1
32.155"w Z45 Horizontal Extrusion
10
1
32.155"w Z45 Horizontal Extrusion
11
1
15"w Z45 Horizontal Extrusion
12
1
15"w Z45 Horizontal Extrusion
13
1
15"w Z45 Horizontal Extrusion
14
1
15"w Z45 Horizontal Extrusion
15
1
15"w Z45 Horizontal Extrusion
16
1
15"w Z45 Horizontal Extrusion
17
1
32.155"w Z45 Horizontal Extrusion
18
1
32.155"w Z45 Horizontal Extrusion
19
1
32.155"w Z45 Horizontal Extrusion
20
1
32.155"w Z45 Horizontal Extrusion
--
2
Door
--
6
18"h Shelf Supports
16
12
2
8
1
Infill
6
20
*
Infill
Door
*
7
15
11
19
BACK VIEW

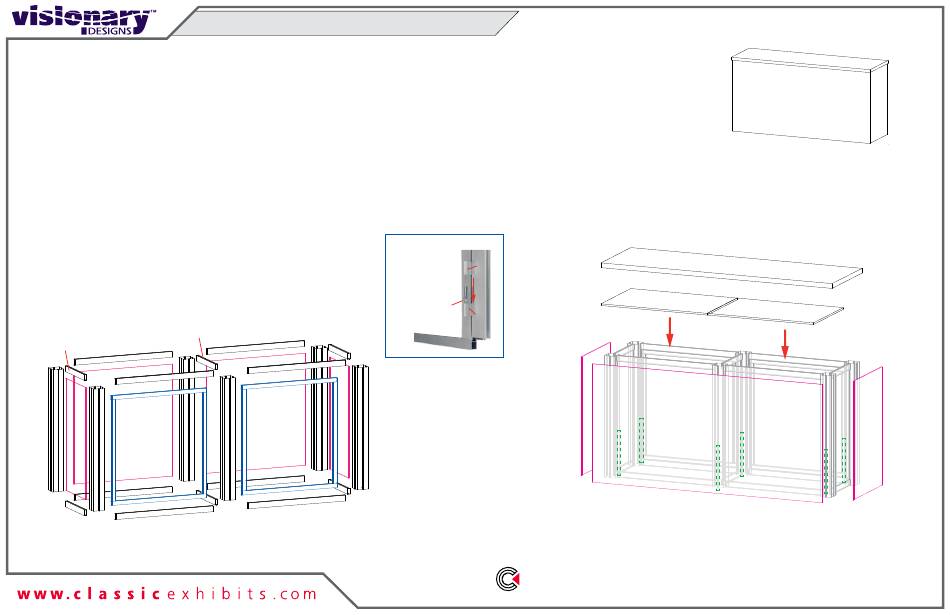

MOD-1594 Large Counter
Steps:
1) Assemble lower horizontals [7,9,11,13,15,17,19] between verticals [1,2,3,4,5,6].
2) Insert
infills
between verticals [1,2], [2,3], [3,4], [1,5].
3) Connect upper horizontals [8,10,12,14,16,18,20] between verticals [1,2,3,4,5,6].
4) Attach Doors between verticals [4,5], [5,6]. See
5) Affix shelf supports to inside of couter assembly using Velcro; place
shelf onto shelf supports.
6) Affix Sintra Panels to outside of assembly, using Velcro.
6) Attach Counter Top to top of assembly.
*
Slide pin into
hinge attached
to vertical.
Slide door
hinge over pin.
3
10
14
4
Infill
5
18
*
Infill
Door
*
9
13
17
Door Attachment
Door Attachment
Door
Hinge
Pin
Hinge
Graphic
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
detail.

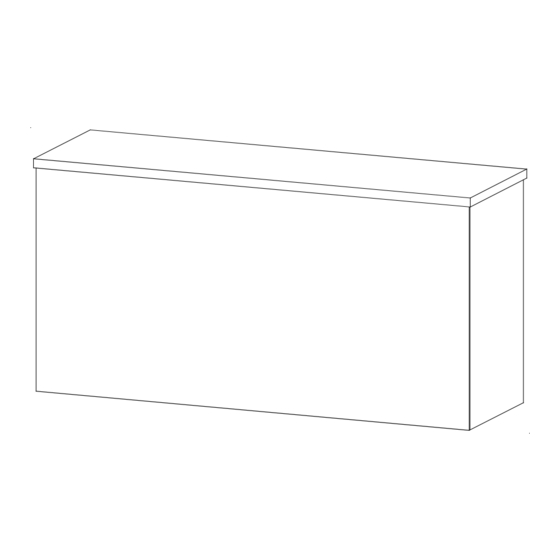

When assembled
Counter Top
Shelf
Shelf
Supports
Shelf
Supports
Graphic
FRONT VIEW
Shelf
Graphic
Supports
