QUICK START GUIDE
DISPENSERS
• DE224D (115v)
• 2 Tap Beer
30662_C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DE224D and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line DE224D

Summary of Contents for U-Line DE224D

  • Page 1 QUICK START GUIDE DISPENSERS • DE224D (115v) • 2 Tap Beer 30662_C...
  • Page 2 ® to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available worldwide.

  • Page 3: Table Of Contents

    This Quick Start Guide covers the basics of installation and general use of your product. CONTENTS Safety and Warning Environmental Requirements Electrical Door Swing Door Adjustments General Installation Control Operation First Use Airflow & Product oading Cleaning Warranty For more details, see the complete User Guide & Service Manual on u-line.com.

  • Page 4: Safety And Warning

    QUICK START GUIDE USER GUIDE u-line.com Safety and Warning NOTICE DANGER Please read all instructions before installing, operating, or servicing the appliance. Service must be done by factory authorized service personnel. Any parts shall be replaced Use this appliance for its intended purpose only and follow with like components.

  • Page 5: Environmental Requirements

    QUICK START GUIDE 16-1/2" 16-1/2" 90° 90° Door Swing Door Swing Environmental Requirements NOTICE Stainless Models Electrical installation must observe all state and Black and White Models local codes. This unit requires connection to a This model is intended for indoor/interior applications only 2115WC Models grounded (three-prong), polarized receptacle and is not to be used in installations that are open/...

  • Page 6: Door Adjustments

    QUICK START GUIDE Door Adjustments REVERSING THE DOOR Location of the unit may make it desirable to mount the HINGE COVER door on the opposite side of the cabinet. Hinge cover included with the literature bag is optional. The hinge hardware will be removed and reinstalled on the opposite side of the cabinet.
  • Page 7 QUICK START GUIDE Remove door by tilting forward and lifting door off Install top hinge and door: bottom hinge. Retain shoulder washers; they will be reused. Use a Philips screwdriver to remove hinge pin and reinstall on the opposite surface of the hinge. Remove three screws from hinge holes on the opposite side.

  • Page 8: General Installation

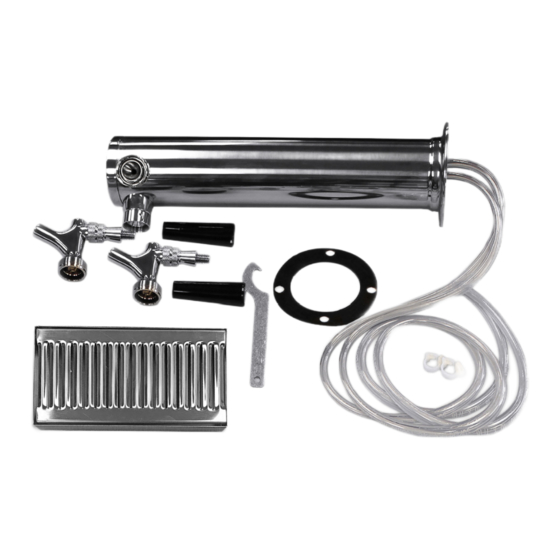

    General Installation U-Line Double Tap Kits are designed to work with the U-Line keg refrigerator model CDE215D. Tap kits can be installed directly on top of the keg refrigerator in a free-standing application or through a countertop in a built-in application.
  • Page 9 USER GUIDE QUICK START GUIDE u-line.com Install Tower on Keg Refrigerator Do not remove the protective film on the s ainless exterior until the tower is installed. Remove four screws and lift off cap plug and gas et to reveal mounting hole on top of refrigerator.
  • Page 10 USER GUIDE USER GUIDE QUICK START GUIDE u-line.com u-line.com Install Tower on Countertop Install Tower on Countertop (see template at the end of this section) (see template at the end of this section) Do not remove all the protective film on the s ainless exterior until the tower is installed.
  • Page 11 QUICK START GUIDE USER GUIDE u-line.com Template for Countertop Installation Note: Verify template has printed true to scale - double check hole dimensions and placement. 1 Inch 7-1/2“ TO SIDE OF REFRIGERATOR 2-3/4“ HOLE 12-1/2“ TO FRONT FACE OF REFRIGERATOR...
  • Page 12 QUICK START GUIDE USER GUIDE u-line.com CO2 Connection NOTE: Regulator and CO2 tank not included Attach regulator to CO2 tank. Hand tighten the coupling nut and then use an adjustable wrench for an additional quarter turn. DO NOT OVER TIGHTEN Attach 5/16 ”...
  • Page 13 USER GUIDE QUICK START GUIDE u-line.com Beverage Connection NOTE: Couplers not included Attach and clamp beverage tubing to tap couplers. 1/ 4 Attach tap couplers to kegs. Locate notch and rotate clockwise turn. 1/ 4 Press down and rotate clockwise an additional turn.
  • Page 14 USER GUIDE QUICK START GUIDE u-line.com LEVELING INFORMATION Setting CO2 Pressure Use a level to confirm the unit is l vel. Level should be To minimize foam for most beverages the pressure should placed along top edge and side edge as shown.

  • Page 15: Control Operation

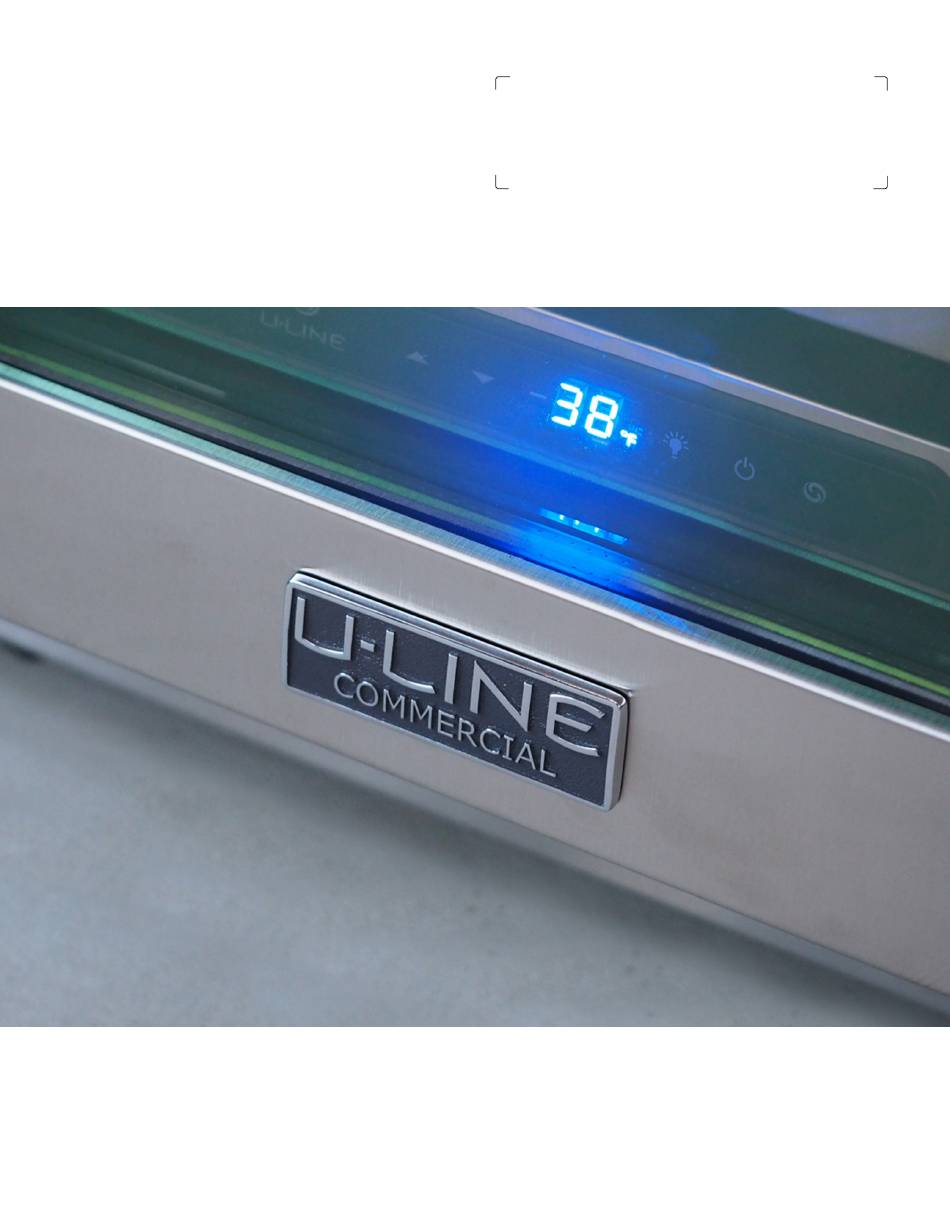

    If the temperature displayed is diffe ent than selected, the unit is progressing towards the selected temperature. Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. U-Line recommends allowing the unit to reach set points before loading.

  • Page 16: Airflow & Product Oading

    USER GUIDE temperatures and may freeze contents. Rust not cleaned up promptly can penetrate the u-line.com surface of the stainless steel and complete removal of the rust may not be possible. Cleaning Note: Cleaning soaps and vinegar solutions are not CLEAN INTERIOR COMPONENTS CLEANING VS.
  • Page 17 USER GUIDE QUICK START GUIDE u-line.com Beverage Line and Faucet Cleaning Clean the system using a suitable solution designed for beer- dispensing systems. Beer cleaning kits are also available. Solution and/or kit not included. Close CO tank. Pull pin on coupler to release pressure from keg.
  • Page 18 QUICK START GUIDE USER GUIDE u-line.com Remove faucet from tower with supplied faucet wrench. Disassemble, and place all the parts in drainage bucket. 10. Add washer and attach cleaning pump connector to tower. Tighten with faucet wrench. 11. Pump all the solution through the beverage line.
  • Page 19 QUICK START GUIDE USER GUIDE u-line.com DEFROSTING Under normal conditions this unit does not require manual defrosting. Minor frost on the rear wall or visible through the evaporator plate vents is normal and will melt during each cycle. If there is excessive build-up of 1/4” (6 mm) or more, manually defrost the unit.
  • Page 20 For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
