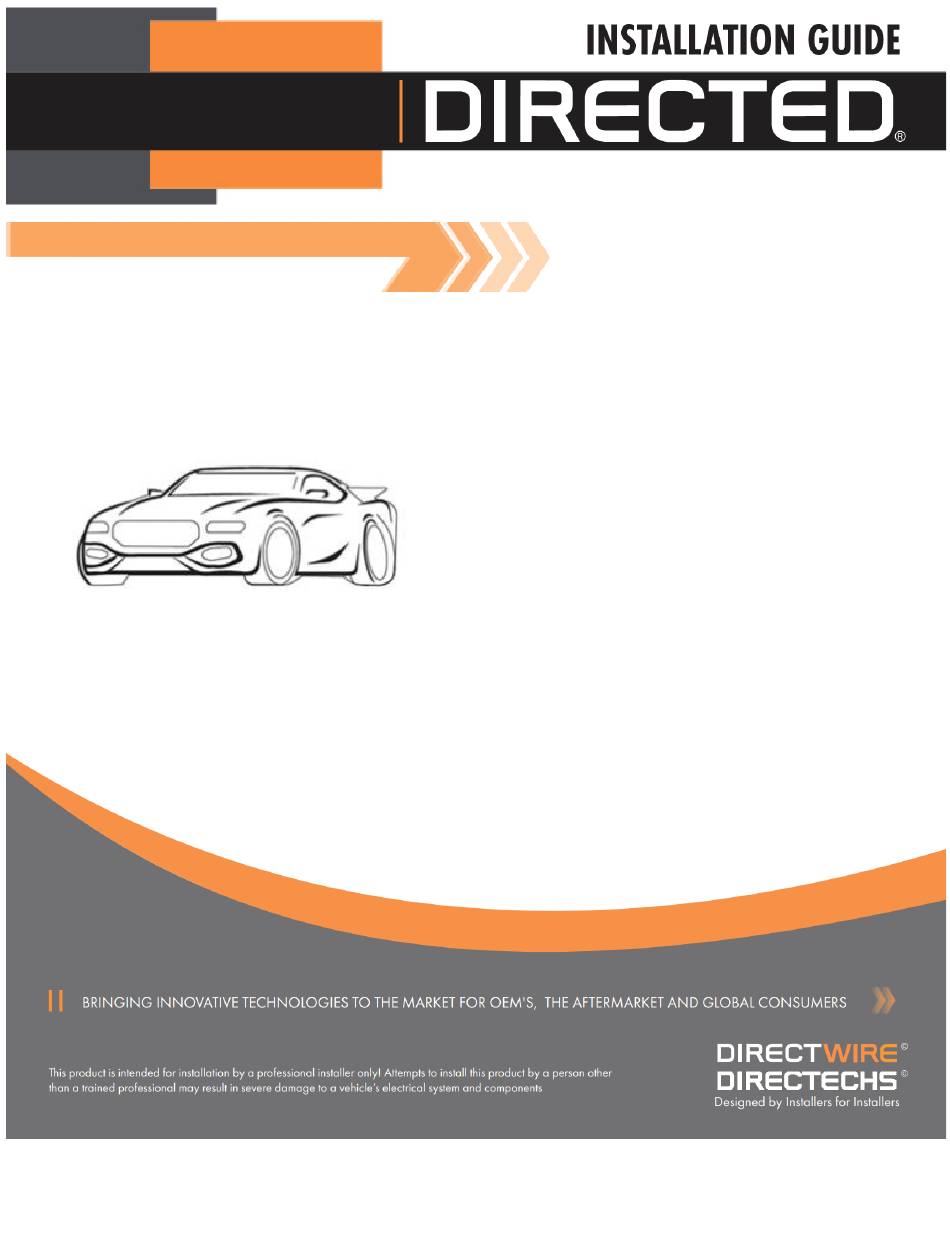

- Page 1 403.HK3 v3.04 2016 Hyundai Santa Fe Sport...
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Locating components in the vehicle Vehicle connections Module programming Connecting the module LED diagnostics and troubleshooting Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty Quick reference guide... -
Page 3: Introduction
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 4: Vehicle Function Compatibilities
Control of aftermarket alarm with OEM remote Door Locks Status Immobilizer Bypass-Data No Key Req'd E-Brake Status RAP Shut Down (Retained ACC Power) Ignition Status Remote Start Takeover 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 5: Pre-Installation And Application Warnings
However, for some vehicles, the immobilizer interrupt may not be required. If this is the case, the vehicle will crank but not remote start. Therefore, you must permanently reconnect the interrupt, leaving the Orange/Black and Yellow/Black connections, and retry the remote starter. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 6: Wiring Diagram
(black conn. at key switch) (+) Accessory: Blue, pin 2 If the vehicle cranks but does not start, (+) Ignition 1: Green, pin 4 reverse these two connections. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 7: Locating Components In The Vehicle
Locating components in the vehicle Driver Kick Panel Black 46-pin Joint Connector Green 30-pin Blue 31-pin White 1-pin White 48-pin 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 8: Vehicle Connections
(Data) Immo Data H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. - Page 9 Pink Starter Ignition Switch, black 6 pin plug, pin 3 Black Tachometer [1] Camshaft Position Sensor on engine driver side, gray 3 pin plug, pin Brown/Orange (2.0L, 2.4L) 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved.
-
Page 10: Module Programming
ON solid orange for 3 seconds, then shuts off when the programming is done. Turn the key to OFF, and remove it from the ignition barrel. You have successfully completed the module programming sequence. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 11: Connecting The Module
(12-pin) (D2D) (10-pin) (14-pin) W2W installation If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin harness to the module. (12-pin) (10-pin) (14-pin) 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 12: Led Diagnostics And Troubleshooting
External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. - Page 13 The smart key was not detected, which prevents the system from shutting down the vehicle. Flashes red x 3 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down. Flashes red x 4 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved.
-
Page 14: Soft Reset
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the & LED starts to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Release Solid 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 15: Feature Programming
To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 16: Feature And Option List
If the vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be executed. 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 17: Limited One Year Consumer Warranty
This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824 403.HK3 3.04 2016 Hyundai Santa Fe Sport ©2023 Directed. All rights reserved. -
Page 18: Quick Reference Guide
• Factory remote. Park (P). Park • Aftermarket remote. • Directed SmartStart application via your smartphone. Press the Remote Start button on the transmitter.* If applicable, you can also start the engine remotely by pressing the Lock button 3 times quickly &... - Page 19 The application enables a “Cloud-Connected Car” like never before, providing 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking car, app, end user, and the Internet. For more information, visit www.mysmartstart.com.
