SERVICE MANUAL
EN
Ref.
Replacement
No.
Part No.
1
85-436
2
54-308
3
54-4945
4
72-104
5
72-93
6
85-70
7
85-243
8
85-438
9
—
*▲■
10
*▲■
—
11
*▲■
—
77-2818-R8 (9/2021)

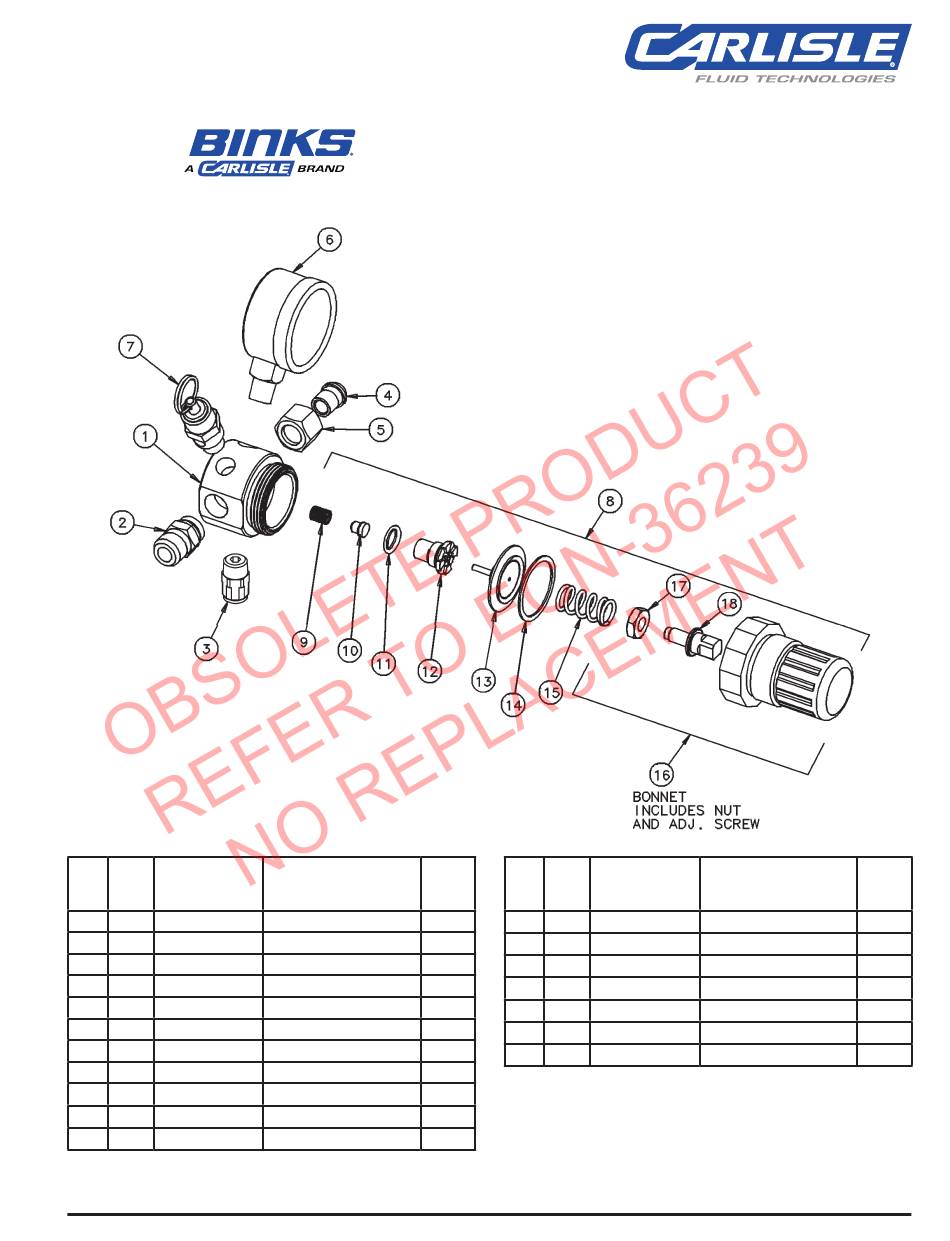

MODEL 85-445
AIR PRESSURE REGULATOR
85-445 PARTS LIST
Ind.
Description
Parts
Req'd.
REGULATOR BODY
1
AIR CONNECTION
1
TUBE FITTING
1
TAIL PIECE
1
SWIVEL NUT
1
GAUGE, (60 PSI)
1
SAFETY VALVE (55 PSI)
1
REGULATOR KIT (0-50 PSI)
—
VALVE SPRING
1
VALVE, (PTFE)
1
O-RING (VALVE SEAT)
1
Ref.
Replacement
No.
Part No.
12
*▲■
—
13
*▲■
—
14
*▲■
—
15
—
*▲
16
*▲
—
17
*▲
—
18
*▲
—
* Not available separately
Available in 85-438 Regulator Kit.
▲
Available in KK-4887-2 Regulator Repair Kit.
■
1 / 4
Ind.
Description
Parts
Req'd.
VALVE SEAT
1
RELIEVING DIAPHRAGM
1
SLIP RING
1
REGULATING SPRING
1
BONNET
1
NUT
1
ADJUSTING SCREW
1
