SERVICE MANUAL
EN
1/4 NPS air
connection
(unregulated)
To cup
(regulated)

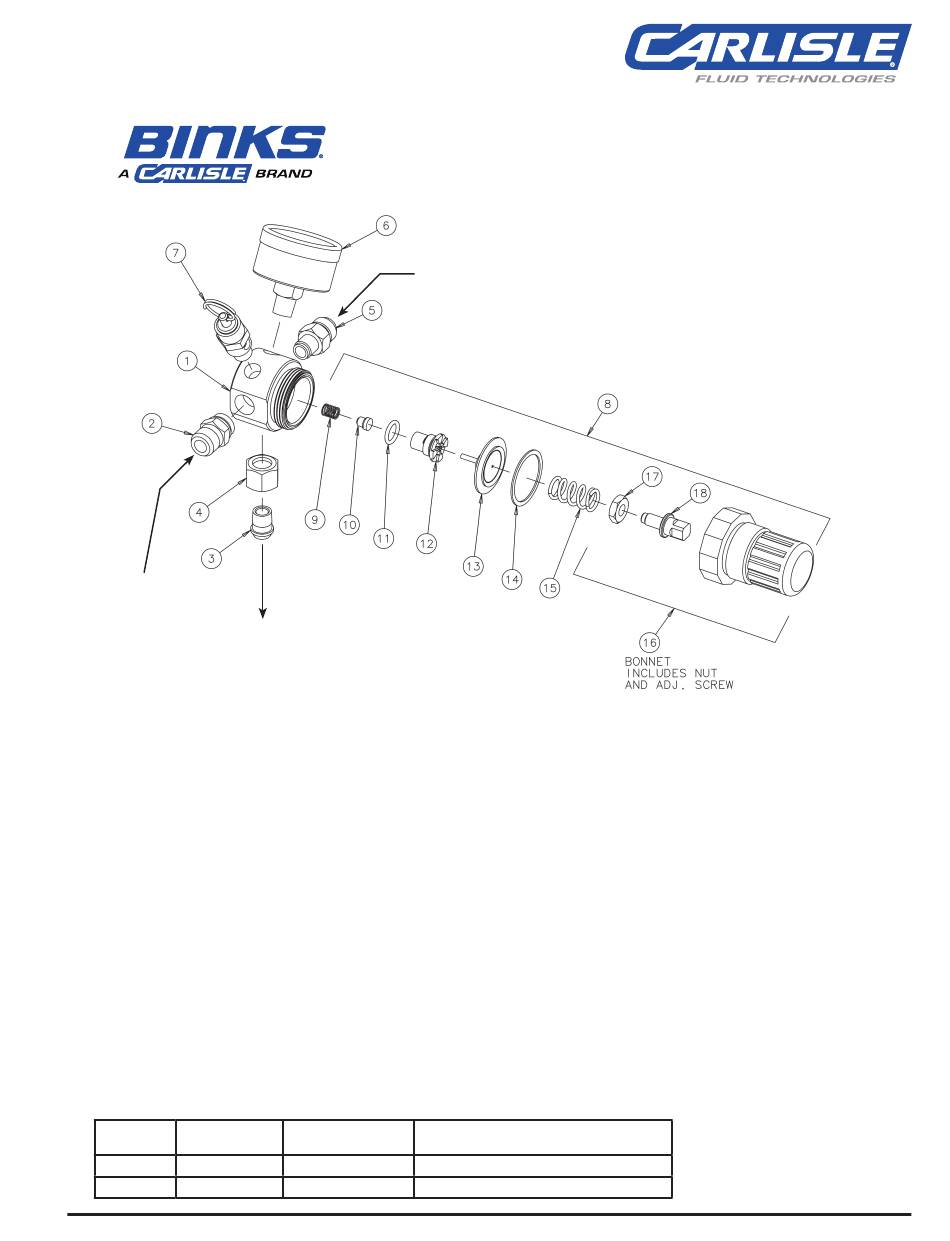

BINKS MODEL 85-449 (0-10 PSI) AND 85-450 (0-50 PSI) PRESSURE CUP REGULATORS
ITEM PART
NO.
NO.
DESCRIPTION
1
85-436
REGULATOR BODY ......................... 1
2
54-308
AIR CONNECTION,
3
72-104
TAIL PIECE .................................... 1
4
72-93
SWIVEL NUT,
5
71-28
AIR CONNECTION,
6
See Chart 1 GAUGE .......................................... 1
7
See Chart 1 SAFETY VALVE ............................... 1
8
See Chart 1 REGULATOR KIT ............................. 1
9
— * ▲
VALVE SPRING ............................... 1
*
Not available separately.
▲
Available in Kits 85-437 and 85-438. See Chart 1.
CHART 1
Regulator
Item #6 – Gauge
85-449
59-299 0 –15 PSI
85-450
59-369 0 –60 PSI
77-2843-R8 (11/2020)
MODELS 85-448, 85-449 & 85-450
AIR PRESSURE REGULATORS
1/4 NPS air connection
(unregulated)
When ordering, please specify Part No.
QTY.
.............. 1
1/4 NPS
...................... 1
1/4 NPS
.............. 1
1/4 NPS
Item #7 – Safety
Item #8 – Regulator Kit
Valve
TIA-4326 18 PSI
85-437 Low Pressure 0 –10 PSI (Red Spring)
85-243 55 PSI
85-438 High Pressure 0 – 50 PSI (Green Spring)
1 / 4
ITEM PART
NO.
NO.
DESCRIPTION
10
— * ▲
VALVE ............................................ 1
11
— * ▲
O-RING,
(VALVE SEAT)
12
— * ▲
VALVE SEAT ................................... 1
13
— * ▲
RELIEVING DIAPHRAGM ................. 1
14
— * ▲
SLIP RING ..................................... 1
15
— * ▲
REGULATING SPRING ..................... 1
16
— * ▲
BONNET ........................................ 1
17
— * ▲
NUT............................................... 1
18
— * ▲
ADJUSTING SCREW ........................ 1
QTY.
....................... 1
www.carlisleft.com
