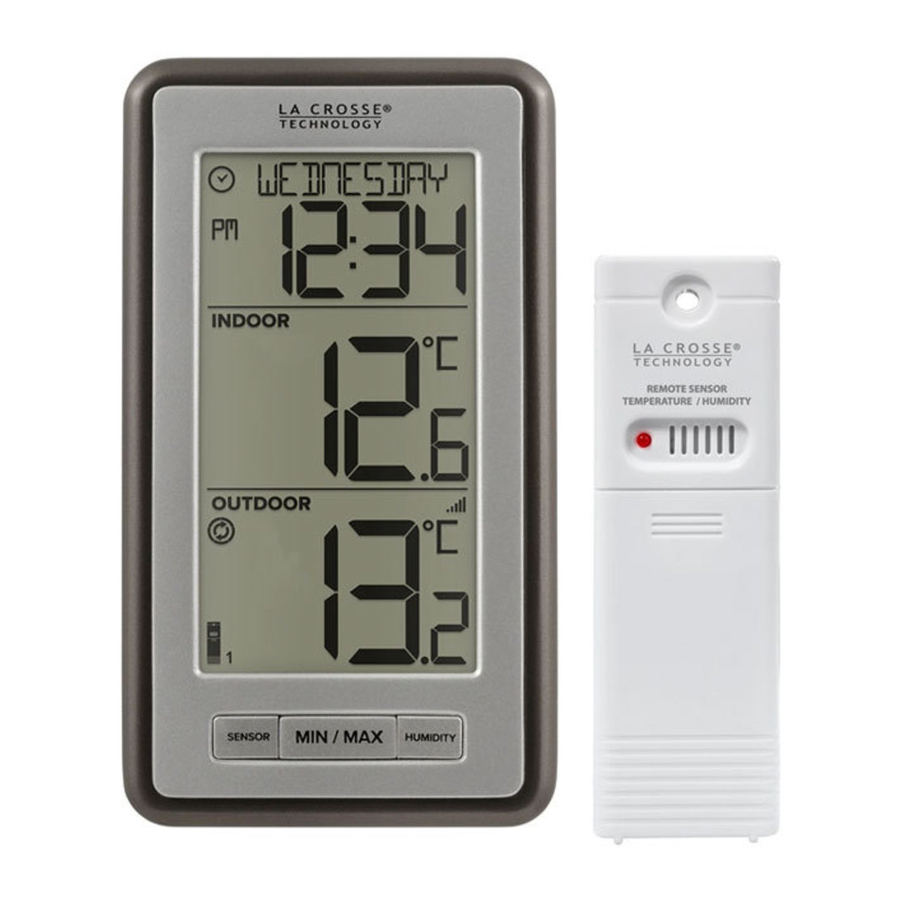

La Crosse WS-9160Uv2, WS-9160Uv3, WS-9160Uv3-BK-IT - Wireless Weather Station Manual

POWER UP

1. Insert 2-AA batteries into your Outdoor Sensor.
2. Insert 2-AA batteries into your Station
3. Once the sensor is reading to your station, place it outside in a shaded location to protect it from the sun's heat.


CUSTOM CALENDAR DISPLAY

• Press the DATE button to change the display of the Calendar, or have it not show.
• Station will stay on selection.


SETTINGS

1. Hold the SET button to enter the Settings Menu.
2. Use the + or - button to adjust values.
3. Press the SET button to confirm and move to next item or exit.

Settings Menu Order:

• Hello
• Language (English, Español, Français, Deutsch)
• 12/24 Hour Format
• Hour
• Minutes
• Year
• Month
• Date
• Month/Date, Date/Month
• Fahrenheit/Celsius
• Thank You

Language: The language selected in this menu will control other menu items as well as your full weekday readout.
Weekday: The Weekday will set automatically when your Year, Month and Date are set.

MIN/MAX RECORDS

Press the MIN/MAX button to toggle MIN/MAX readings with time/ date stamp. Time and date of the record will show.
Viewing Order:

• Indoor Minimum Temperature Record
• Indoor Maximum Temperature Record
• Outdoor Minimum Temperature Record Channel 1
• Outdoor Maximum Temperature Record Channel 1

Note: If additional Temperature/Humidity sensors are added, additional presses of the MIN/MAX button will show those records as well.

VIEW HUMIDITY

Press the HUMIDITY button to view Humidity readings for a brief time. Then the station will return to temperature readings.

OPTIONAL ADD-ON SENSORS

This station can read an add-on Rain Sensor to read in the Time Area. It can also read up to two additional Temperature Humidity Sensors.
Add Sensors

1. Install batteries into your add-on Rain or Temperature/Humidity sensor(s).
   Note: For Temp/Humidity sensors, be sure to select different channels (2 or 3) before you insert batteries.
2. Hold the SENSOR button until the Reception Indicator starts to animate. This will start a search for your sensors.
3. Your sensor(s) should connect within the next few minutes.

View Add-on Sensors:

• Press the RAIN button to view Rain readings and history.
• Press the SENSOR button to toggle through readings from sensors 1, 2 or 3.

Note: When multiple sensors are connected the you can view individual sensors or auto-scroll through all three channels. The auto-scroll indicator will lose one segment every 1 second, for 5 seconds, then switch to the next channel.
Purchase Extra Sensors
Visit lacrossetechnology.com/products/WS-9160Uv2#parts to find and purchase compatible add-on sensors.

BUTTON FUNCTIONS

SENSOR	Press to view Channels when add-on sensors are connected. Hold to search for Outdoor Sensors.
MIN/MAX	Press to view Min/Max Records.
HUMIDITY	Press to view Humidity readings.
DATE	Press to change or remove Calendar display.
RAIN	Press to view Rain History, when rain sensor added.
+ (PLUS)	Press to adjust settings. Hold to adjust quickly.
- (MINUS)	Press to adjust settings. Hold to adjust quickly. Hold to reset Min/Max Records while viewed.
SET	Press to switch from Rain back to Time readings. Hold to enter Settings.
DATE/RAIN	Hold together to Factory Reset Station.

SENSOR WEATHER SHIELD

• The Sensor Weather Shield is designed to protect your outdoor sensor from rain and snow.
• This shield will offer limited protection from the sun's heat.
• Optional purchase at: bit.ly/925-1418


SPECIFICATIONS

Station WS-9160Uv2 or WS-9160Uv3 or WS-9160Uv3-BK-IT:
Temperature Range: 32 F to 122F (0C to 50C)
Humidity Range: 10% - 99% RH
Power Requirements: 2 "AA" LR6 Batteries (not included)
Battery Life: Over 24 months with reputable batteries
Dimensions: 3.35" L x 1.06" W x 5.91" H (8.50cm L x 2.69cm W x 15.01cm H)

Outdoor TX141-Bv3 or TX141-Bv4:
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Transmission Range: Over 330 feet (100 meters) in open air RF 433MHz
Power Requirements: 2 "AA" LR6 Batteries (not included)
Battery Life: Over 24 months with reputable batteries
Dimensions: 1.57" L x 0.79" W x 5.11" H (3.98cm L x 2.0cm W x 13.0cm H)

CARE & MAINTENANCE

Battery replacement instruction:
When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury.

• Always purchase the correct size and grade of battery most suitable for the intended use.
• Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of different types.
• Clean the battery contacts and those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from product during periods of non-use. Battery leakage can cause corrosion and damage to this product.
• Remove used batteries promptly.
• For recycling and disposal of batteries, and to protect the environment please check the internet or your local phone directory for local recycling centers and/ or follow local government regulations.

Watch sensor mounting video: bit.ly/th_sensor_mounting
WE'RE HERE TO HELP!
If you require additional support, get in touch with our friendly customer support team based out of La Crosse, WI.
Phone: 1.608.782.1610
Online: bit.ly/contact_techsupport
Our knowledgeable customer support team is available: Monday-Friday, 8am-6pm CST.
