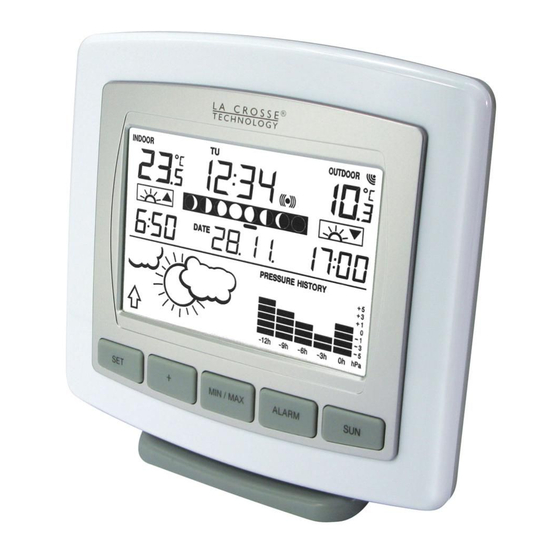

WIRELESS 868 MHz WEATHER STATION
INTRODUCTION
Congratulations on purchasing this weather station with wireless 868 MHz transmission of outdoor
temperature and display of indoor temperature and air pressure history.
radio controlled clock and daily alarm function.
as well as the moon phase are shown. This innovative product is ideal for use in the home or office.
« Instant Transmission+» is the up and coming state-of-the-art new wireless transmission
technology, exclusively designed and developed by LA CROSSE TECHNOLOGY.
"IT +" offers you an immediate update of all your outdoor data measured from the
transmitters: follow your climatic variations in real-time!
FEATURES
The weather station
LCD
Display
Function
Keys
•
DCF radio controlled time with manual setting option
•
Time reception ON/OFF (user selectable)
•
Time zone setting: -2 to +5 hours
•
24 hour time display (seconds displayed by pressing the SUN key)
•
Weekday, day and month display (year in setting mode)
•
Daylight saving time (DST) function selectable
Instruction Manual
It is further featuring a DCF-77
In addition, calendar, weather forecast, sunrise/ sunset time
22
Hanging hole
Battery
compartment
cover
Detachable
stand
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse WS9251
Summary of Contents for La Crosse WS9251
- Page 1 This innovative product is ideal for use in the home or office. « Instant Transmission+» is the up and coming state-of-the-art new wireless transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. “IT +” offers you an immediate update of all your outdoor data measured from the...
-
Page 2: How To Install And Replace Batteries In The Temperature Transmitter
• Daily alarm function • Weather forecast with weather tendency indicator • Temperature display in degree Celsius (°C) • Indoor temperature display with MIN/MAX recordings • Outdoor temperature display with MIN/MAX recordings, time and date • All MIN/MAX recordings can be reset •... -
Page 3: Dcf Radio Controlled Time
problems may occur. In the event of changing batteries in any of the units, all units need to be reset by following the setting up procedures. SETTING UP Note: This weather station receives only one outdoor transmitter. First, insert the batteries in the transmitter (see “How to install and replace batteries in the temperature transmitter”... -
Page 4: Battery Change
• Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/ or point its front or back towards the Frankfurt transmitter. • During nighttime, the atmospheric disturbances are usually less severe and reception is possible in most cases. -
Page 5: Lcd Screen
• At normal mode, press and hold the key for 2 seconds to reset ALL indoor/outdoor minimum/maximum temperature recordings to current readings • To stop the alarm sound ALARM key • To activate/deactivate the alarm and display alarm time • Press and hold for 2 seconds to enter the alarm setting mode •... -
Page 6: Manual Settings
* When the signal is successfully received by the weather station, the Outdoor reception icon will be switched on. (If not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the flashing of the icon shows that a reception is being done now. -
Page 7: Manual Time Setting
TIME RECEPTION ON/OFF SETTING Flashing In areas where reception of the DCF time is not possible, the radio controlled clock (RCC) function can be turned OFF. The clock will then work as a normal Quartz clock. (Default setting is ON). The digit “ON”... -
Page 8: Calendar Setting
The minute will be flashing. Use the + key to increase or MIN/MAX key to decrease the value. Press the SET key to enter “Calendar Setting” or exit the setting mode by pressing the ALARM key or SUN key. Note: The unit will still try and receive the signal despite it being manually set. -
Page 9: Alarm Setting
Note: 10 European countries / 193 cities can be chosen from. Every country/city is displayed in short code (default country is France = F). See the list at the beginning of this handbook for all the country/ city codes. French cities are coded from F01 to F95. The department name is in brackets ( ). With the desired country selected, press the SUN key to enter City setting mode. -
Page 10: Weather Forecasting Icons
TO EXIT SETTING MODES To exit the setting modes anytime, user can wait for automatic timeout to return to normal display. WEATHER FORECASTING ICONS Weather icons can be displayed in any of the following combinations: Cloud with Sun with cloud rain For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather. -
Page 11: Air Pressure History (Electronic Barometer With Barometric Pressure Trend)
noticeable change in the weather was when it was sunny (the sun icon only). Therefore, the next change in the weather will be cloud with rain icons since the indicator is pointing downwards. Note: Once the weather tendency indicator has registered a change in air pressure, it will remain permanently visualized on the LCD. - Page 12 DISPLAY OF INDOOR/OUTDOOR MAXIMUM AND MINIMUM RECORDS Press the MIN/MAX key several times to view the MIN/MAX indoor temperature, and MIN/MAX outdoor temperature sequentially. Date and time of recordings will be shown for outdoor data. RESETTING THE MAXIMUM/MINIMUM RECORDS In normal display mode, press and hold the MIN/MAX key for 2 seconds. This will reset ALL minimum and maximum temperature records to current readings in one time.
-
Page 13: Positioning The Weather Station
Neighbors using electrical devices operating on the 868 MHz signal frequency can also cause interference. Note: When the 868 MHz signal is received correctly, do not re-open the battery cover of either the transmitter or weather station, as the batteries may spring free from the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur. -
Page 14: Care And Maintenance
signal is not received, relocate the units or move them slightly as this may help the signal reception. CARE AND MAINTENANCE: • Extreme temperatures, vibration and shock should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings. •... - Page 15 • The unrestricted disposal of electronic waste may do harm on public health and the quality of environment. • As stated on the gift box and labeled on the product, reading the “User manual” is highly recommended for the benefit of the user. This product must however not be thrown in general rubbish collection points.
