This product offers
INVENTORY OF CONTENTS
1. Wireless Temperature Station
2. Wireless Temperature Sensor (TX40U-IT) and mounting bracket.
3. Instruction Manual

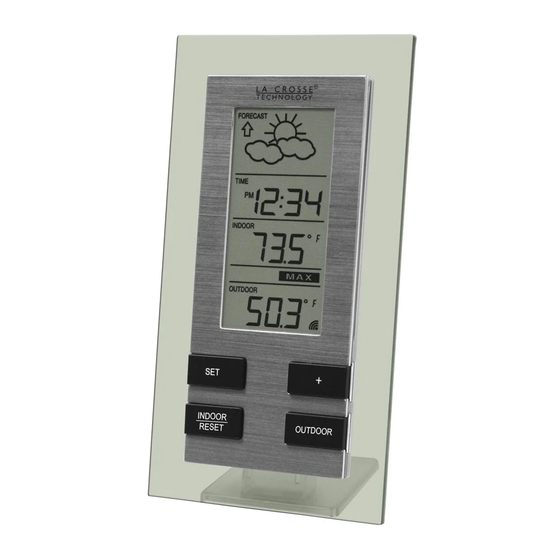

The Weather Station:
LCD
display
Function
keys
Features:
12/24 hour display
Calendar (year, month and day display in setting mode only)
Temperature display in degrees Celsius (ºC) or Farenheit (ºF)
Indoor and outdor temperature with MIN/MAX records
Manual reset of MIN/MAX records
3 weather forecast icons with weather tendency indicator
Wireless transmission at 915 MHz
Signal reception interval at 4 seconds
Low battery indicators
Wall mounting or table standing (detachable stand)
The Outdoor Temperature Transmitter
Remote transmission of outdoor temperature to weather station by 915 MHz
signals
Water resistant casing
Wall mounting and table-standing
WEATHER STATION
WS-9215U-IT
Instruction Manual
:
INSTANT TRANSMISSION is the state-of-the-art new
wireless transmission technology, exclusively designed
and developed by LA CROSSE TECHNOLOGY. INSTANT
TRANSMISSION offers you an immediate update (every 4
seconds!) of all your outdoor data measured from the
transmitters: follow your climatic variations in real-time!
1
Hanging hole
Battery
compartment
cover
Detachable stand

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-9215U-IT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for La Crosse WS-9215U-IT

Summary of Contents for La Crosse WS-9215U-IT

  • Page 1 This product offers INSTANT TRANSMISSION is the state-of-the-art new wireless transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you an immediate update (every 4 seconds!) of all your outdoor data measured from the transmitters: follow your climatic variations in real-time! INVENTORY OF CONTENTS 1.

  • Page 2: Battery Change

    SET UP: Note: This weather station receives only one outdoor transmitter. Do not mix old and new batteries. Do not mix alkaline, standard, or rechargeable batteries. 1. First, insert the batteries into the temperature transmitter. (see “Install and replace batteries in the temperature transmitter“).

  • Page 3: Function Keys

    FUNCTION KEYS: Weather station: The weather station has four easy to use function keys. SET key INDOOR/RESET key OUTDOOR key SET key Press and hold to enter manual setting modes: 12/24 hour time, manual time, calendar, ºF/ºC temperature unit setting + key To change any values in manual set modes INDOOR/RESET key...

  • Page 4: 12/24 Hour Time Display Setting

    * When the outdoor signal is successfully received by the weather station, this icon will be switched on. (If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception was successful (icon on) or not (icon off). MANUAL SETTINGS: The following manual settings are set in the setting mode: 12/24 hour time display setting...

  • Page 5: F/°C Temperature Unit Setting

    °F/°C TEMPERATURE UNIT SETTING Flashing The default temperature display is set to °F (degree Fahrenheit). To select °C (degree Celsius): 1. The “°F or C” will flash. 2. Use the + key to toggle between “°C” and “°F”. 3. Once the desired temperature unit is selected, confirm with the SET key and exit the setting mode. TO EXIT THE MANUAL SETTING MODE To exit the manual setting mode anytime during the manual setting, wait for automatic timeout.
  • Page 6 THE WEATHER TENDENCY INDICATOR Working together with the weather icons are the weather tendency indicators (located on the left and right hand side of the weather icons). When the indicator points upwards, it means that the air-pressure is increasing and the weather is expected to improve, but when indicator points downwards, the air- pressure is dropping and the weather is expected to become worse.

  • Page 7: Positioning The Weather Station

    915 MHz RECEPTION CHECK The weather station should receive the temperature data within 3 minutes after set-up. If the temperature data is not received 3 minutes after setting up (not successfully continuously, the outdoor display shows “- - -” ), please check the following points: 1.

  • Page 8: Care And Maintenance

    Temperature transmitter WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product.
  • Page 9 Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center.
  • Page 10 All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue.
