La Crosse 302-604 - Indoor Comfort Level Station Manual

Introduction

The Indoor Comfort Level Station is an ideal measuring instrument for checking room ambient conditions.
Checking indoor temperature and humidity can help achieve a comfortable and healthy living environment and may even save you heating costs.

Features

• Digital time
• Indoor temperature (°F or °C)
• Indoor relative humidity (%RH)
• Minimum and Maximum temperature and humidity records.
• Comfort level icon (smiley face) for humidity levels between 40% - 60%RH.
• Display large temperature or large humidity with the touch of a button.
• Wall hanging or free standing.
• Temperature range: -4°F to 122°F (-20°C to 50°C).
• "Lo" icon when temperature is below -4°F (-20°).
• Humidity range 20% to 99% RH.
• CR 2032 button cell battery included.

Set up

• Remove the stand (E) from the back of the station by carefully pulling it downwards.
• Open the battery compartment (F) by turning the lid with a coin counter clockwise.
• Remove the insulation strip from the battery.
• Close the battery compartment again.
• All LCD segments will light up for about a few seconds.
• The unit is now ready to use.

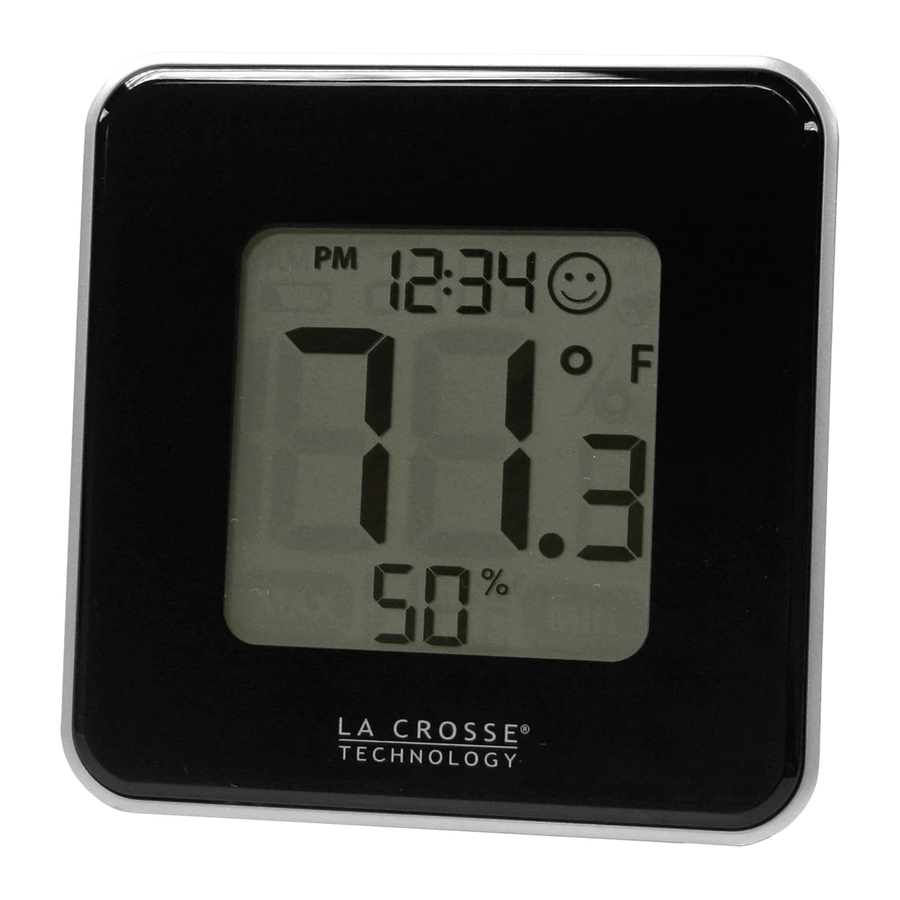

• The upper display shows the time and the comfort level, the middle display shows the current temperature and the lower display the relative humidity.

Display with removable stand.

Buttons

1. SET button
2. SWITCH button
3. MAX/MIN button

Housing

4. Wall mounting hole
5. Removable stand
6. Battery compartment

Set Time

Press and hold SET button for 3 seconds, to enter the time set mode.

• HOUR: The Hour digit is flashing. Press and release the SWITCH button to adjust the Hours. Be sure to AM or PM is showing as appropriate.
• MINUTES: Press and release the SET button again the Minutes digit is flashing. Press and release the SWITCH button to adjust the minutes. Hold the SWITCH button to change the Minutes quickly.
• CONFIRM: Press and release the SET button to confirm the time and return to a normal display.

Fahrenheit or Celsius

• Press and release the SET button to change between °C (Celsius) or °F (Fahrenheit) as temperature unit in normal mode.
  NOTE: With Fahrenheit as temperature unit, the clock automatically switches to the 12 HR system (PM appears on the display after noon).

Comfort Level Icon

• When the humidity is between 40% and 60% a smiling face icon will display in the upper right corner of the station to indicate the comfort level of indoor climate.

MAX/MIN Values

• VIEW: Press and release the MAX/MIN button. MAX appears on the display. The maximum temperature and humidity are displayed. Press and release the MAX/MIN button again. MIN appears on the display. The minimum temperature and humidity are displayed. Press MAX/MIN button again to return to normal mode.
• RESET: Press and release the MAX/MIN button to show MAX or MIN. Hold the SET button in the respective mode to clear the recorded MAX/MIN reading. The temperature and humidity will appear as: --.- °F and --.- % on the display.

Display options

• Press and release the SWITCH button, to choose between the large-scale display of temperature or humidity.

Positioning and mounting

• With the removable stand the instrument can be placed onto any flat surface or wall mounted at the desired location by the wall mounting hole at the back of the unit.

Battery replacement

Change the battery CR 2032 button cell when the battery symbol appears on the display

• Remove the stand (E) from the back of the station by carefully pulling it downwards.
• Open the battery compartment (F) by turning the lid with a coin counter clockwise.
• Remove the old battery and install a fresh CR 2032 battery. Observe correct polarity (+ facing up).
• Close the battery compartment again.

Low batteries should be changed soon to avoid the damage resulting from a leaking battery.

Attention

If you notice that the LCD appears faint or is not working properly, try a fresh battery before contacting customer support.
We recommend that you replace the batteries in all units regularly to ensure optimum accuracy of this unit.

Help us to keep our environment clean. Please do not dispose of old electronic devices and empty batteries in household waste. To protect the environment, take them to your retail store or to appropriate collection sites according to national or local regulations.

Maintenance

• Keep the instrument in a dry place.
• Do not expose the instrument to extreme temperatures, vibration or shock.
• Clean it with a soft damp cloth. Do not use solvents or scouring agents.
• If the unit does not work properly, change the battery.

Intended usage, safety information

• The product is not a toy. Keep it out of reach of children.
• The product is not to be used for medical purpose or for public information, but is determined for home use only.
• The specifications of this product may change without prior notice.
• Improper use or unauthorized opening of housing will void the warranty.

Specifications

Temperature range: -4°F....122°F (-20°C...50°C)
Precision: 32°F...+104°F ± 2°F, otherwise 3°F
Resolution: 0.1°F

Measuring range humidity: 20%...99%
Accuracy: 35%...75% ±4%

"Lo": = temperature is lower than -4°F

Battery: CR 2032 button cell battery

Product size: 4.125" L x 1.625" W x 4.125" H
