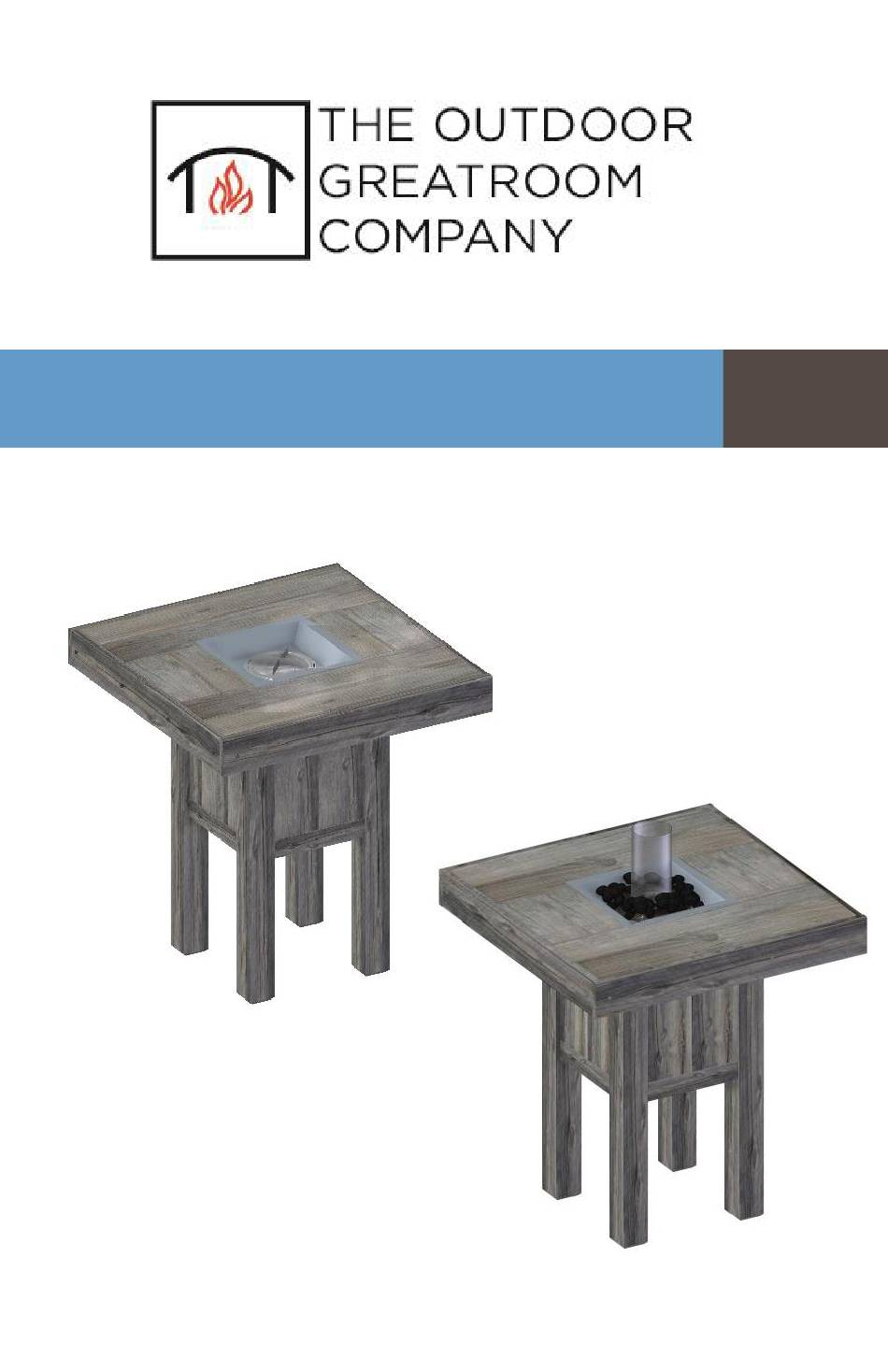

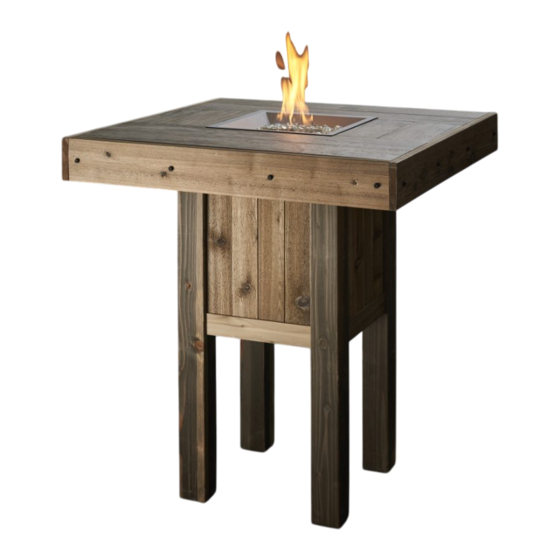

- Page 1 The Westport Fire Pit Table Installation Instructions for WP-1616 and WP-INT...
-
Page 2: Table Of Contents
IMPORTANT Please consult your Crystal Fire Manual or INT-EZ manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER OR INTRIGUE WITHOUT FIRST CONSULTING THE PROPER MANUAL Contents Required Tools……………………………………………….2... -
Page 3: Included With Your Fire Pit
Included With Your Fire Pit INT-EZ and Trim CF-1616-PTR Burner WP-TILETOP WP-BASE Top Attachment Bracket (2) Self-tapping Philips Head Screws (8) (WP-INT ONLY) 6 lbs. Tumbled Lava Rock (LAV-TMB) -
Page 4: Fire Pit Assembly Instructions
Fire Pit Assembly Instructions 1. Carefully remove product from packaging. Make sure that all parts are included and undamaged. Ensure you have the proper tools for assembly. 2. Place WP-BASE into the final location where you want your fire pit. 3. -
Page 5: Burner Installation Wp-1616
Burner Installation (WP-1616) Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Do not use Teflon tape or pipe sealant on flare fittings. 1. Attach Natural Gas supply line or included black rubber propane hose/regulator (depending on gas type) to control valve. - Page 6 3. Remove access door to fire pit and orient the burner in the Fire Pit as shown below. Sparker Electrode Control Panel Side Door Side 4. Attach Flex Line from burner to control valve as shown below. TIGHTEN CONNECTION SECURELY WITH WRENCH ...
- Page 7 5. Install Sparker box into control panel as shown below. Insert AAA Battery with Positive (+) end facing out. To ensure sparker box is working correctly, press button and listen for sparking behind the sparker box. 6. Connect sparker wire and ground wire from burner to sparker box as shown below.
-
Page 8: Position Your Propane Tank
Position Your Tank (If Applicable) Open the access door and connect the propane hose/regulator to the propane tank and hand tighten (DO NOT USE A WRENCH). Insert the propane tank by tipping at a 45 degree angle as shown in the picture in order to fit tank into access door opening. -
Page 9: Glass Installation
Glass Installation Scatter all the included glass beads evenly onto burner surface. DO NOT OPERATE CRYSTAL FIRE BURNER WITHOUT INCLUDED GLASS MEDIA OR OTHER APPROVED FIRE MEDIA IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to burner installation, including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. -
Page 10: Burner Installation Wp-Int
Burner Installation (WP-INT) Read and understand your INT-EZ owner’s manual before beginning burner installation or using the device. 1. Remove existing control panel from base: Use a Philips head screw driver to remove the 4 screws. 2. Replace existing control panel with intrigue control panel: Use a Philips head screw driver to replace the four screws in the four corners of the control... - Page 11 4. Make wire connections from burner to control panel: Use spade connectors provided to connect the wires from the intrigue (Brown) to the wires from the control panel (Black). Wires form INT-EZ Wires from control panel 5. Drop INT-EZ and trim into fire pit. Orient the INT-EZ Base so that the access door is easily accessible.
-
Page 12: Warranty Information
Please visit http://www.outdoorrooms.com/warranty-form to register your product. Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. 14400 Southcross Drive West • Suite 100 • Burnsville, MN 55306 Toll Free: 1-866-303-4028 •...
