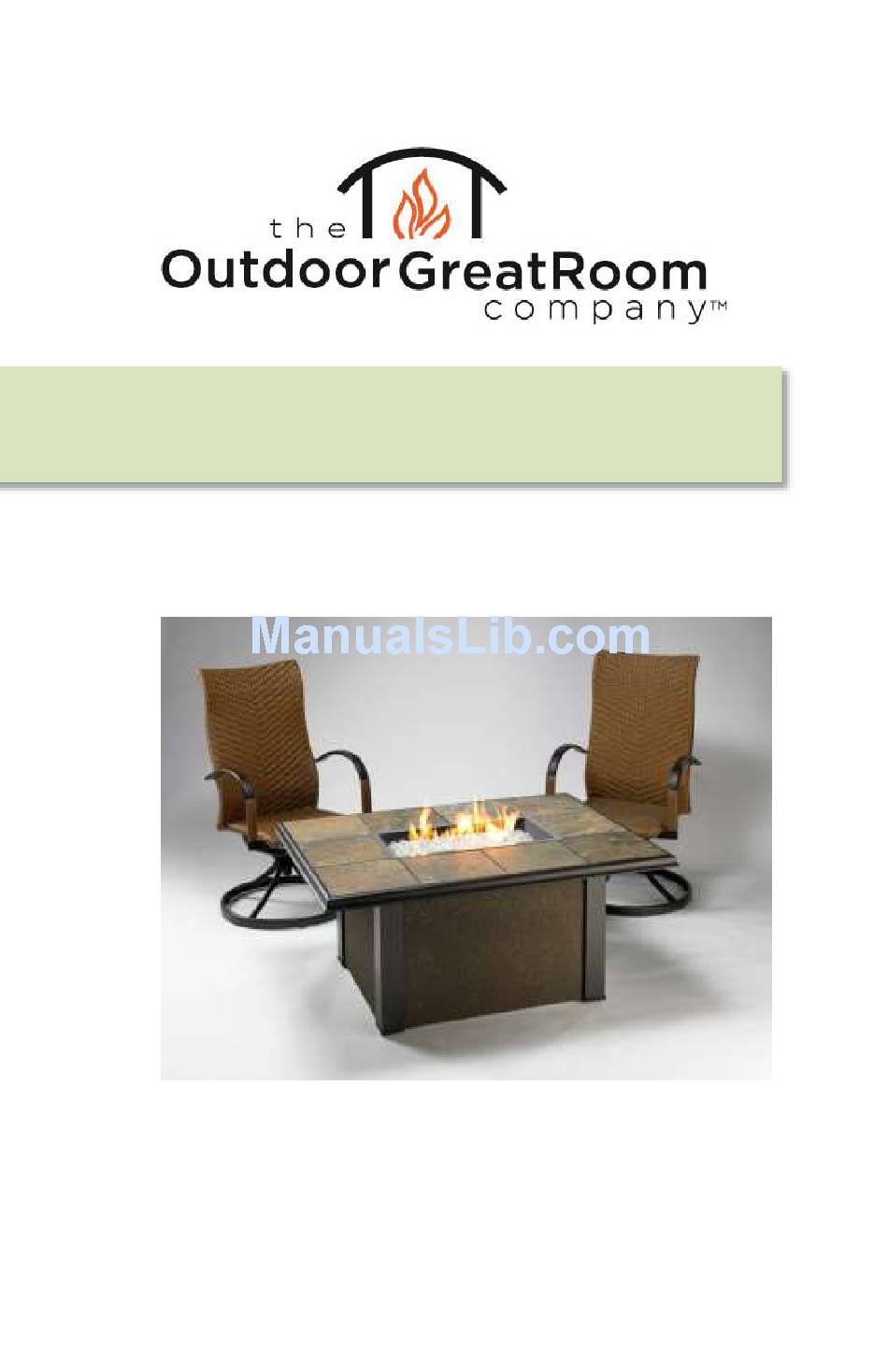

- Page 1 Napa Valley Fire Pit Table Installation Instructions For Models: NAPA-VALLEY-1224-K, NV-1224-BRN-K, NV-1224-BLK-K, NV-1224-GRY-K, NV-1224-BLK-W-K P a g e...
- Page 2 Contents Contents……………………………………………………..2 Required Tools…………………………………………..3 Placing and Assembling the Table…………………….………………………………………4 Gas Connection………………………….…………….5 Igniter Installation…………….………………………...6 P a g e 90221:D 4.28.2014...
-
Page 3: Required Tools
Required Tools Utility Knife To cut and remove packaging 2 Open Ended Wrenches To make gas connections Leather Gloves To protect hands from rough edges found on the coffee table. One (1) AAA Battery (not included) Required for piezoelectric igniter installation. -
Page 4: Table
Placing and Assembling the Fire Pit table 1. Remove all components from packaging and inspect for damage or missing parts. 2. Move the base to desired location and set into place. When locating your coffee table, refer to the Crystal Fire manual and maintain clearance to combustibles. -
Page 5: Gas Connection
Read and understand your Crystal Fire owner’s manual before beginning burner hookups or using the device. Gas Connection 1. With proper orifice installed for the application and metal flex hose attached (see burner owner’s manual) set burner in base with burner neck pointed toward the control panel. -
Page 6: Igniter Installation
Igniter Installation (If your igniter only has one port on the back, please ignore instructions for grounding. Your igniter is a self-grounding model) 1. Make sure the valve is in the OFF position 2. Unscrew sparker cap and hex nut (sparker included with burner). - Page 7 3. To properly install ignition system, an Ignition and Ground wire need to be attached to the igniter box. Start by plugging the black Ignition wire hanging from the burner in to one side of the back of the igniter (either side is fine).
- Page 8 Locating your Tank 1. Your tank should be positioned so that the fuel can be shut off after each use. 2. Slide the tank into the framework past the line shown below (table style may vary). This is to allow the door to close completely.
- Page 9 Door Installation *Exact model may differ Door support Set door on supports and close. Magnet will hold door in closed position. Finishing touches Once fire pit is set up and in the desired position, scatter decorative glass on burner surface forming an even layer of beads.
- Page 10 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CF-1224 BURNER WITHOUT FIRST CONSULTING THE MANUAL.
- Page 11 11 | P a g e...
- Page 12 © 2013 The Outdoor GreatRoom Company 2015 Silver Bell Road • Suite 195 • Eagan, MN 55122 12 | P a g e Toll Free: 1-866-303-4028 • Sales@OutdoorRooms.com...
