Outdoor GreatRoom Company WP-1616 Installation Instructions Manual

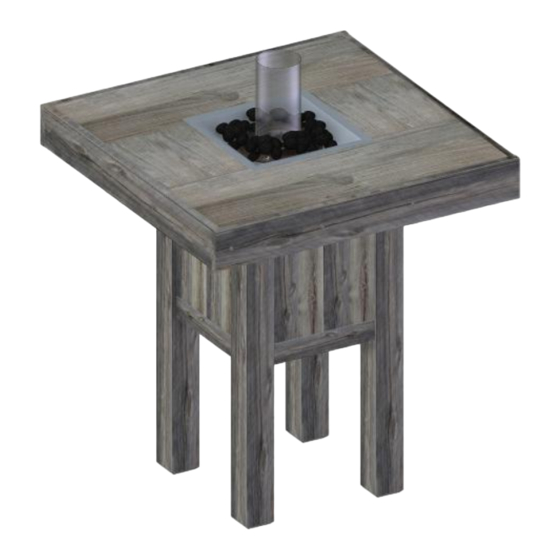

The westport fire pit table
Hide thumbs
Also See for WP-1616:
- Installation instructions manual (7 pages) ,
- Installation instructions manual (12 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Outdoor GreatRoom Company WP-1616
Summary of Contents for Outdoor GreatRoom Company WP-1616
- Page 1 The Westport Fire Pit Table Installation Instructions for WP-1616 and WP-INT...
- Page 2 IMPORTANT Please consult your Crystal Fire Manual or INT-EZ manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. DO NOT ATTEMPT TO INSTALL CRYSTAL FIRE BURNER OR INTRIGUE WITHOUT FIRST CONSULTING THE PROPER MANUAL...
- Page 3 To secure gas connections Leather Gloves To protect hands from glass and sharp edges during installation One AAA Battery (WP-1616) or 2 D-Cell Batteries (WP-INT) Required for Electric Spark igniter installation Power Drill with Philips head bit To attach mounting brackets to secure tile top to base.
- Page 4 Included With Your Fire Pit Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA. INT-EZ and Trim CF-1616-PTR Burner WP-TILETOP WP-BASE Top Attachment Bracket (2) Self-tapping Philips Head Screws (8) 14400 Southcross Drive West •...
- Page 5 4. Make wire connections from burner to control panel: Fire Pit Assembly Instructions Use spade connectors provided to connect the wires from the intrigue (Brown) to the 1. Carefully remove product from packaging. Make sure wires from the control panel (Black). that all parts are included and undamaged.
- Page 6 Burner Installation (WP-1616) Burner Installation (WP-INT) Read and understand your INT-EZ owner’s manual before Read and understand your Crystal Fire owner’s manual before beginning burner installation or using the device. beginning burner hookups or using the device. Do not use Teflon tape or pipe sealant on flare fittings.
- Page 7 TIGHTEN CONNECTIONS SECURELY WITH TWO WRENCHES Glass Installation Ensure all connections are secure and leak free before using fire pit. 3. Remove access door to fire pit and orient the burner in the Fire Pit as shown below. Sparker Electrode Control Panel Side ...
- Page 8 5. Install Sparker box into control panel as shown below. Insert AAA Battery with Positive (+) end Position Your Tank facing out. To ensure sparker box is working correctly, press button and listen for sparking behind the sparker box. (If Applicable) 6.
