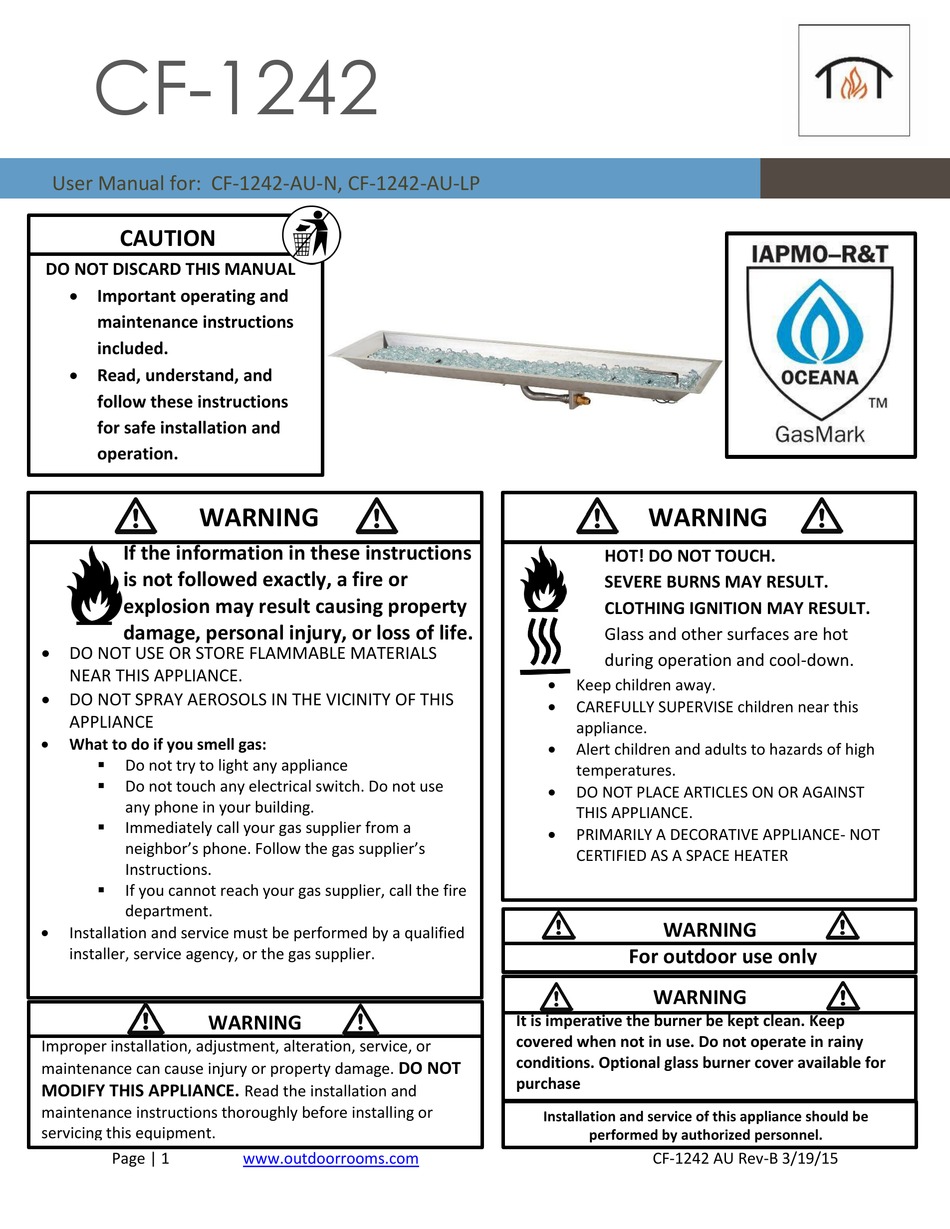

CF-1242
User Manual for: CF-1242-AU-N, CF-1242-AU-LP
CAUTION
DO NOT DISCARD THIS MANUAL
 Important operating and
maintenance instructions
included.
 Read, understand, and
follow these instructions
for safe installation and
operation.
WARNING
If the information in these instructions
is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
 DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch. Do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
Instructions.
If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
WARNING
Improper installation, adjustment, alteration, service, or
maintenance can cause injury or property damage.
MODIFY THIS APPLIANCE.
maintenance instructions thoroughly before installing or
servicing this equipment.
Page | 1
DO NOT
Read the installation and
www.outdoorrooms.com
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot
during operation and cool-down.
Keep children away.
CAREFULLY SUPERVISE children near this
appliance.
Alert children and adults to hazards of high
temperatures.
DO NOT PLACE ARTICLES ON OR AGAINST
THIS APPLIANCE.
PRIMARILY A DECORATIVE APPLIANCE- NOT
CERTIFIED AS A SPACE HEATER
WARNING
For outdoor use only
WARNING
It is imperative the burner be kept clean. Keep
covered when not in use. Do not operate in rainy
conditions. Optional glass burner cover available for
purchase
Installation and service of this appliance should be
performed by authorized personnel.
CF-1242 AU Rev-B 3/19/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF-1242 and is the answer not in the manual?

Questions and answers

Summary of Contents for Outdoor GreatRoom Company CF-1242

  • Page 1 CF-1242 User Manual for: CF-1242-AU-N, CF-1242-AU-LP CAUTION DO NOT DISCARD THIS MANUAL  Important operating and maintenance instructions included.  Read, understand, and follow these instructions for safe installation and operation. WARNING WARNING If the information in these instructions HOT! DO NOT TOUCH.
  • Page 2 As the owner of an Outdoor GreatRoom Company fire pit, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings.
  • Page 3: Table Of Contents

     Owner’s Manual Glass Burner Fence Kit*  Glass Burner Fence Kit* * Glass Burner Fence Kit does not protect against rain. See page 15 of this manual for optional rain cover Page | 3 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 4: Listing And Code Approvals

    IAS requirements for Outdoor Gas Fireplaces, AS4565:2004 & AS4558:2011 and operation as described in these installation and operating instructions. The installation must conform with local codes or, in absence local codes, AS/NZ5601.1:2010/AG601 Page | 4 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 5: Getting Started

     Installation other than as instructed installation. Follow these instructions by the Outdoor GreatRoom carefully during installation to ensure Company. maximum safety and benefit. Any such action may cause a fire hazard Page | 5 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 6: Framing Clearances

    Four sided room with no ceiling and at least 10 meters square burner. Two sided room with ceiling, two sides open 50% Three sided room 25% open with ceiling and 30% of the three side wall unobstructed. Page | 6 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 7 This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Page | 7 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 8 At least 30% of the remaining wall area is open and unrestricted. In the case of balconies, at least 20% of the total wall area shall be an remain open and unrestricted. Page | 8 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 9 Page | 9 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 10: Burner Assembly

    A percentage of glass beads may arrive split in half. This is normal. Additional beads may split after use. This is also normal due to the physical properties of glass. DO NOT BURN WITHOUT GLASS BEADS Page | 10 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 11: Gas Hookup And Information

    AS4558:2011 Installation should be done by an authorized leak check solution following testing. installer approved and/or licensed as required by the locality. Fittings and connections may have loosened during shipping and handling Page | 11 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 12 CHECK ENTIRE SYSTEM FOR LEAKS BEFORE OPERATING. IF AN INSTALLER IS Gas from CONVERTING THE UNIT FROM NATURAL control valve GAS TO LP, RE-CHECK ALL CONNECTIONS FOR LEAKS BEFORE USE. Flare Nut Injector Page | 12 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 13 NATURAL GAS, RE-CHECK ALL CONNECTIONS FOR LEAKS BEFORE USE. Gas input Gas flow from valve to burner Natural gas regulator (locate under drip guard) Gas out Incoming gas Gas control supply (hard valve piped) Page | 13 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 14: Lighting And Operation

    When you light the appliance, you may notice that it produces heat which may have an odor. If you feel this odor is excessive it may require an initial three to four hour continuous burn. Page | 14 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 15 We recommend that you record the following Homeowner Reference Information pertinent information about your appliance Model name:______________________________ Date of purchase/installation_________ Serial Number:___________________________ Location on appliance:_________________ Dealer purchased from:____________________ Dealer Phone:________________________ Notes:________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________ Page | 15 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 16: Troubleshooting

    Check that tip of sparker is within 6mm of grounding Igniter tip set too far from grounding probe. Gently bend igniter tip or grounding probe by probe hand to achieve a smaller gap. Page | 16 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 17: Service And Maintenance

    Maintenance and Service Tasks For service calls: Contact the dealer your product was purchased from first. Contact the Outdoor GreatRoom Company at 1-651-287-7460 or sales@outdoorrooms.com if further assistance is needed. Inspect Maintenance Tasks Burner Assembly Remove decorative glass and examine burner.
  • Page 18: Reference Materials

    Glass guard kit Optional Accessories Glass burner cover Vinyl fire pit cover Natural gas conversion kit LPG conversion kit For more information, you can visit us online at Http://www.OutdoorRooms.com Or Call Us At: 1-651-287-7460 Page | 18 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 19: Dimensional Information

    Dimensions approximate. Always measure before installing permanent gas lines. Valve input location is roughly centered in the base. Suggested minimum interior dimensions of a non-combustible fire pit Page | 19 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 20: Wiring Diagram

    If wiring needs to be repaired or disassembled, disconnect the fire pit from gas supply before anything is done to electrical components. Igniter/Flame Sensor ON/OFF Switch Battery Pack RED + Ground Contacts Gas valve Control Box Optional 3V DC Power connection Page | 20 www.outdoorrooms.com CF-1242 AU Rev-B 3/19/15...
  • Page 21: Limited One Year Warranty

    The maximum amount recoverable under this warranty is limited to the purchase price of the Product and, if The Outdoor GreatRoom Company is unable to provide replacement or repair in an expedient and cost-effective manner, The Outdoor GreatRoom Company may discharge all obligations under this warranty by refunding the purchase price of the Product.
