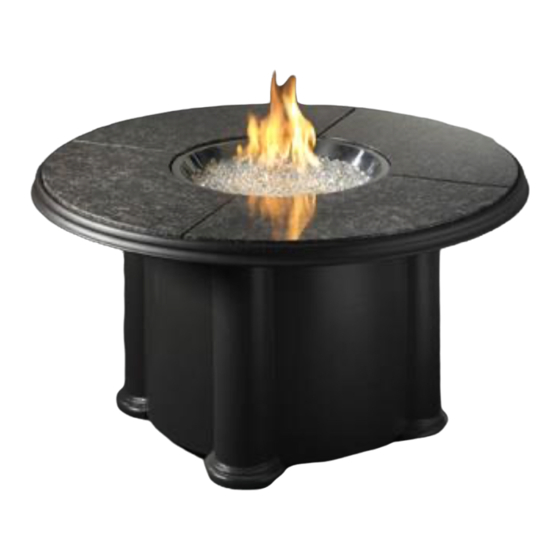

- Page 1 Colonial and Grand Colonial Fire Pit Tables Installation Instructions for Colonial-48-M-K, Col-48-MNB-K, Grand-Colonial-48-K, CM-48-DIN-K, MNB-48- DIN-K, GC-48-DIN-K, CM-48-PUB-K, MNB-48-PUB-K, GC-48-PUB-K Chat/Dining/Pub Height Colonial Tables P a g e...
- Page 2 Contents Included Components……………..………………..………3-6 Assembly Iinstructions…………………………………….7-13 Gas Connections…………………………………………..…….14 Installing Igniter………………………….…………………15-16 Placing propane tank and finishing touches……..17 Required Tools Utility Knife To cut and remove packaging 2 Open Ended Wrenches To make gas connections Leather Gloves To protect hands from rough edges found on the coffee table.
- Page 3 Granite Pieces (x4) Top-Securing Bracket (x4) #8-1/2” washer head screw (x4) Included with Chat Height Colonial with Supercast Top (Model: Colonial-48-M-K, Col-48-MNB-K) (Instructions begin on page 9) Base with door Supercast Tabletop with center burner cover P a g e...
- Page 4 Included with Dining Height Grand Colonial (Model: GC-48-DIN-K) (flip to page 11 for assembly instructions) Dining-height base Tabletop Frame with door Granite Pieces (x4) Lazy Susan/Burner Cover Base Anchor Top mounting Bracket #8-1/2” washer head screw (x8) (qty. 8) Note: A hardware pack is included with the aluminum tabletop frame.
- Page 5 Included with Dining Height Colonial with Supercast Top (Model: CM-48-DIN-K, MNB-48-DIN-K (flip to page 10 for assembly instructions) Dining-height base with door Supercast Tabletop with center burner cover Base Anchor Included with Pub Height Colonial with Supercast Top (Model: CM-48-PUB-K, MNB-48-PUB-K (flip to page 10 for assembly instructions) Dining-height base with door...
- Page 6 Included with Pub Height Grand Colonial (Model: GC-48-PUB-K (flip to page 11 for assembly instructions) Pub-height base Tabletop Frame with door Granite Pieces (x4) Lazy Susan/Burner Cover Base Anchor Top mounting Bracket #8-1/2” washer head screw (x8) Note: A hardware pack is included with the aluminum tabletop frame.
- Page 7 Assembling the Grand Colonial Instructions For Model Grand-Colonial-48-K ONLY 1. Remove all components from packaging and inspect for damage or missing parts. 2. Move the base to desired location and set into place before installing granite. - When locating your coffee table, refer to the Crystal Fire manual and maintain clearance to combustibles.
- Page 8 4. With top centered on base and one hole approximately centered on each corner of the base, insert a mounting clip into mounting hole (refer to image at right.) 5. Insert one of the included screws through the hole in the mounting clip and screw into the table base.
- Page 9 Colonial Table Setup Instructions For Model Colonial-48-M-K and COLONIAL -48-MNB-K ONLY Remove all components from packaging and inspect for damage or missing parts. Place the fiberglass table base in your desired location on flat, level ground. Line up top as shown to ensure foam pads contact the underside of the top.
- Page 10 Dining and Pub-height Colonial Table Setup Instructions For Models CM-48-DIN-K, MNB-48-DIN-K, CM-48-PUB-K, MNB-48-PUB-K ONLY Remove all components from packaging and inspect for damage or missing parts. Place the fiberglass table base in your desired location on flat, level ground. Line up top as shown to ensure foam pads contact the underside of the top.
- Page 11 Dining and Pub-height Grand Colonial Table Setup INSTRUCTIONS FOR MODELS GC-48-DIN-K, GC-48-PUB-K ONLY Remove all components from packaging and inspect for damage or missing parts. Place the fiberglass table base in your desired location on flat, level ground. See page 13 for important anchoring instructions.
- Page 12 Insert M6x16 hex key screws as shown and tighten with the included Hex key. Repeat for remaining sides Using the included #8-1/2” Washer head screws, secure mounting brackets to base. Use extreme caution not to over-tighten the screws in order to keep them from stripping.
- Page 13 Insert granite panels into the frame, polished side up as shown. Gently lower your crystal fire burner into the burner cutout and continue to page 14 for gas hookup and igniter hookup instructions Anchoring Instructions for Dining and Pub-Height Colonials Pub-height Colonial models must be anchored to the surface they are located on in commercial or other environments where tipping risk is present.
-
Page 14: Gas Connection
Read and understand your Crystal Fire burner owner’s manual before beginning burner hookups or using the device. Gas Connection 1. With proper orifice installed for the application (#43 for propane, #31 for natural gas) and metal flex hose attached, set burner in base. 2. -
Page 15: Igniter Installation
Igniter Installation 1. Make sure the valve is in the OFF position *Gas valve can be turned to adjust flame height 2. Unscrew sparker cap and hex nut (sparker included with burner). Install as shown below. Wall of base 15 | P a g e... - Page 16 3. To properly install ignition system, an Ignition and Ground wire need to be attached to the igniter box. Start by plugging the black Ignition wire hanging from the burner in to one port on the back of the igniter (either side is fine).
-
Page 17: Finishing Touches
Locating your Tank 1. Your tank should be positioned so that the fuel can be shut off after each use. 2. Set tank inside base with adequate clearance to burner so the two are not touching. 3. Confirm all hoses are clear and not touching the burner. - Page 18 IMPORTANT Please consult your Crystal Fire instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CF-20 BURNER WITHOUT FIRST CONSULTING THE MANUAL.
- Page 19 19 | P a g e...
- Page 20 © 2014 The Outdoor GreatRoom Company 20 | P a g e...
