Summary of Contents for Outdoor GreatRoom Company Linear Fire Pit Table

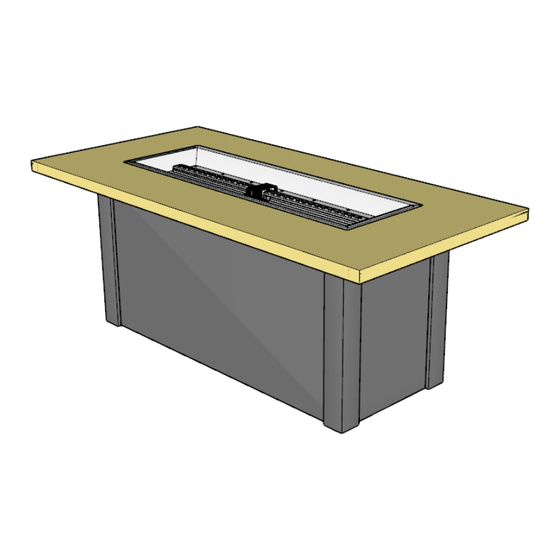

- Page 1 Linear Fire Pit Table Installation Instructions for: • Havenwood models • Key Largo models • Providence models P a g e...
-
Page 2: Table Of Contents
Contents Required tools…………………………………………………………………………………2 Placing and Assembling the Fire Table……..………………………………………3 Sparker Installation…………………………………….……………….…….………..….5 Gas Connections…………….………………………………………….…………………...5 Thermocouple Installation…………………………………………………….………..6 Electrode Installation…………………………..........…6 Locating Propane tank………..………………………………………………………..…7 Finishing Touches……………………………….……………………………………………8 Service Parts………………………………………………………………………………….10 Required Tools • 2 Open Ended Wrenches - To make gas connections. • Leather Gloves - To protect hands from rough edges found on the table. -
Page 3: Placing And Assembling The Fire Table
Placing and Assembling the Fire Table 1. Remove all components from packaging. 2. Move the base section to desired location. 3. When locating your table, refer to the Crystal Fire® Plus manual and maintain clearance to combustibles. 4. Adjust leveling legs on bottom to ensure tank door operates smoothly. - Page 4 8. Carefully set Burner into place. See the sections labeled Gas Connection and Ignitor Installation to install gas lines and piezo electric igniter. P a g e...
-
Page 5: Sparker Installation
CF-SPARKER Installation • Remove CF-SPARKER cap and hex nut. Insert AAA battery (not included) with + end out. • Install CF-SPARKER into control panel as shown below. • Depress CF-SPARKER button to test your sparker. Locate and orient sparker box on control panel as shown. -
Page 6: Thermocouple Installation
Thermocouple Installation • Refer to Crystal Fire® Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. Electrode Installation • Connect igniter and ground wire to sparker box. Both wires can connect to either connection point. The unit will operate in either configuration. - Page 7 Locating your Tank (If applicable) 1. Tilt your propane tank into the slide out tank drawer. 2. With the propane tank and control valve in the OFF position, connect the Regulator Hose, included with the Crystal Fire® Plus burner, to your propane tank.
- Page 8 Gas Line Location • If the fire pit is to be supplied by natural gas or hard piped propane system, locate your plumbing outside the area of the tank drawer. Gas can be stubbed up within the shaded area indicated below. 30-5/8 x 12-7/8 P a g e...
-
Page 9: Finishing Touches
Finishing touches • Once fire pit is set up and in the desired position, scatter decorative glass on burner surface forming an even layer of beads. • Cover ignitor with decorative glass beads. DO NOT BURN WITHOUT GLASS OR OTHER APPROVED DECORATIVE FIRE MEDIA DO NOT BURN WITH GLASS BURNER COVER INSTALLED WARNING... - Page 10 IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to hooking up your linear burner, including safety information, proper tightening of connections with two wrenches and full burner setup and lighting instructions. DO NOT ATTEMPT TO INSTALL CFP1224 BURNER WITHOUT FIRST CONSULTING THE CRYSTAL FIRE®...
-
Page 11: Service Parts
Service Parts • Refer to Crystal Fire® Plus instruction manual for burner service parts. Part 24” 42” Base Black HWB-1224-BASE HWB-1242-BASE Graphite HWG-1224-BASE HWG-1242-BASE White HWW-1224-BASE HWW-1242-BASE Key Largo stucco 3007-012 Providence 3007-013 Drawer Assembly Black 3007-015-Black Graphite 3007-015-Graphite White 3007-015-White Key Largo Stucco 3007-015-Stucco... - Page 12 Thank you for purchasing an Outdoor GreatRoom Company product! This fire pit was made with pride in the USA with US & imported parts. Warranty: Fire pit tables are covered under a 1-year manufacturer’s warranty. Please visit https://www.outdoorrooms.com/product-registration to register your product. St.
