ASX370CSSC27SUFAH-GEVB
ASX370CS
Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 2X system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 2X Controlled MClk
Two-wire Serial Interface
Selectable Base Address
Parallel Interface
MIPI Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2016
April, 2016 − Rev. 0

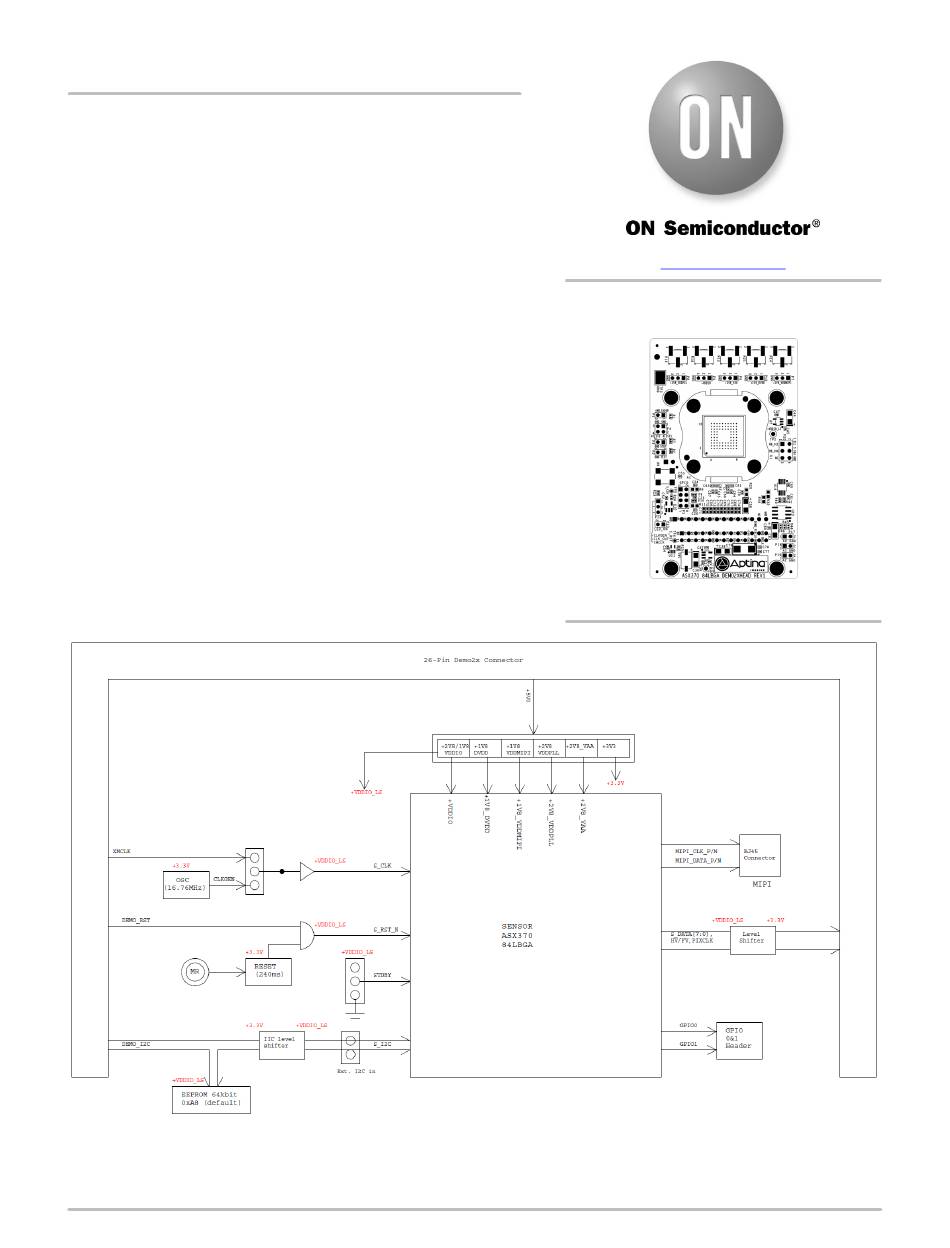

Figure 2. Block Diagram of ASX370CSSC27SUFAH−GEVB
EVAL BOARD USER'S MANUAL
Figure 1. ASX370CS Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2408/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASX370CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ON Semiconductor ASX370CS

  • Page 1 The evaluation boards are designed to demonstrate the features of EVAL BOARD USER’S MANUAL image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 2X system. Test points and jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 ASX370CSSC27SUFAH−GEVB Top View +2V8_VDDPLL P8 +1V8_VDDMIPI P7 +VDDIO P9 +1V8_DVDD P10 +2V8_VAA P6 SADDR P1 ATEST P4 STANDBY P3 2-Wire Master P20 TEST_EN P2 GPIO P5 MCLK_IN P14 ON_LED P13 EEPROM ADDR P17, P18, P19 RESET SW1 Figure 3. Top View of the Board − Default Jumpers Bottom View MIPI Connector J1 Baseboard Connector J3...
  • Page 3 ASX370CSSC27SUFAH−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 When Pushed, 240 ms Reset Signal will be Sent to ASX370 Interfacing to ON Semiconductor Demo 2X Baseboard The ON Semiconductor Demo 2X baseboard has a similar The four mounting holes secure the baseboard and the 26-pin connector which mates with P2 of the headboard.
  • Page 5: Additional Information
