AP0100AT2L00XUGAH-GEVB
AP0100AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
ON Semiconductor's image sensors products. This headboard is
intended to plug directly into the Demo 2× system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
•
Clock Input
Default – 27 MHz Crystal Oscillator
♦
Optional Demo 2× Controlled MClk
♦
•
Two Wire Serial Interface
•
Parallel Interface
•
HiSPi (High Speed Serial Pixel) Interface
•
ROHS Compliant
Block Diagram
This document, and the information contained herein, is CONFIDENTIAL AND PROPRIETARY and the property of Semiconductor
Components Industries, LLC., dba ON Semiconductor. It shall not be used, published, disclosed or disseminated outside of the Company, in
whole or in part, without the written permission of ON Semiconductor. Reverse engineering of any or all of the information contained herein is
strictly prohibited.
© Semiconductor Components Industries, LLC, 2015
September, 2015 − Rev. 0
Arrow.com.
Downloaded from

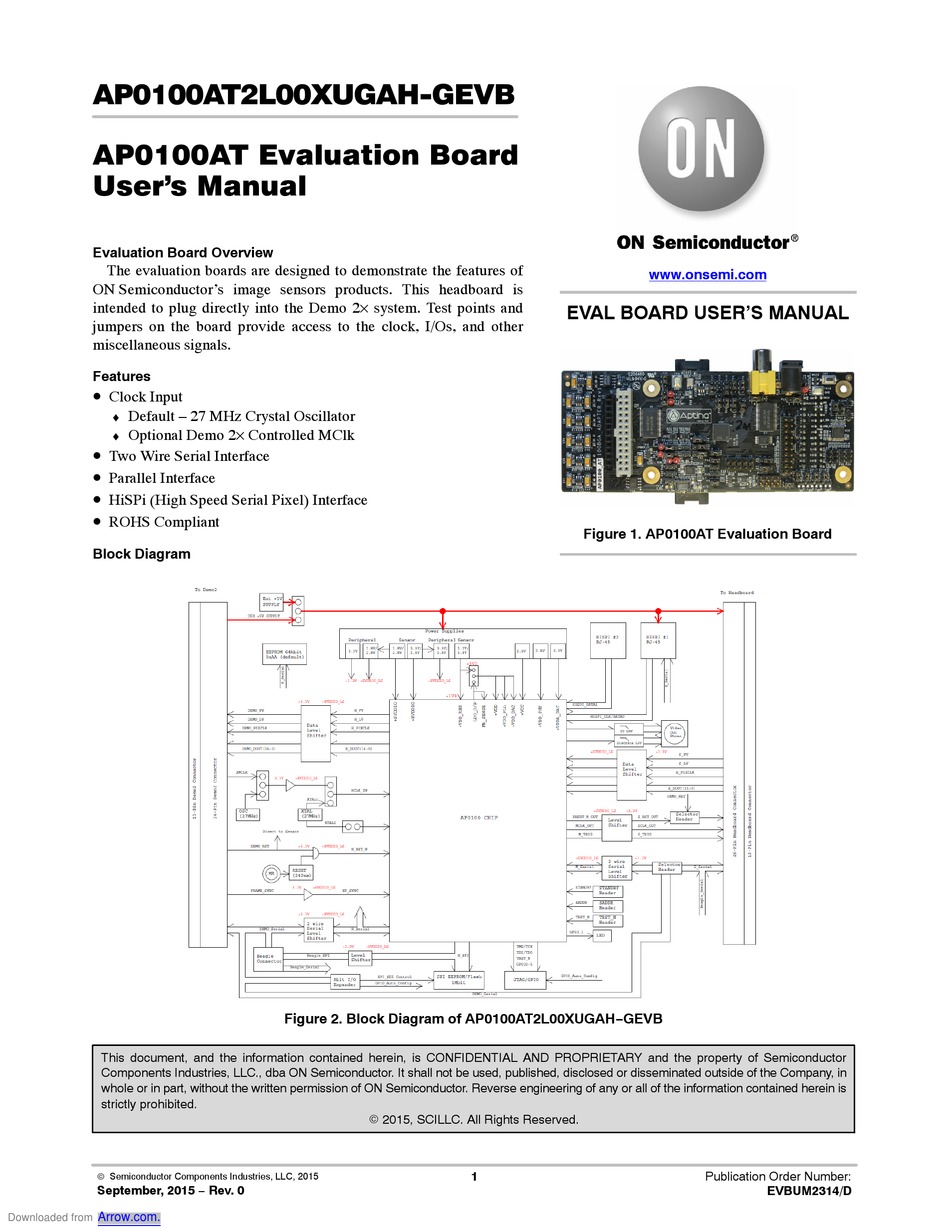

Figure 2. Block Diagram of AP0100AT2L00XUGAH−GEVB
E 2015, SCILLC. All Rights Reserved.
www.onsemi.com
EVAL BOARD USER'S MANUAL

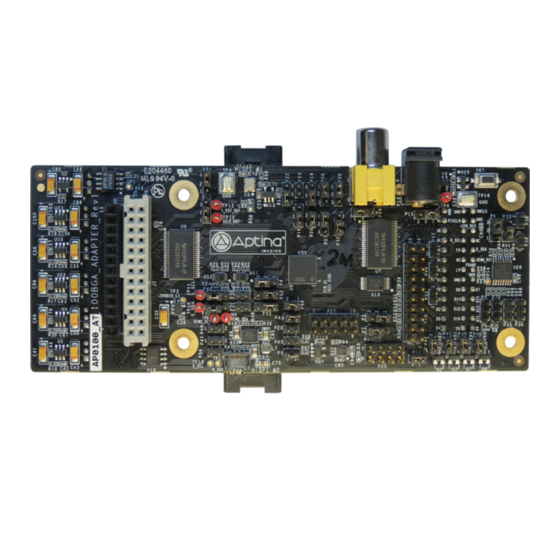

Figure 1. AP0100AT Evaluation Board
1
Publication Order Number:
EVBUM2314/D
