AP0202ATSL00XUGAH3-GEVB
AP0202AT Evaluation Board
User's Manual
Evaluation Board Overview
The evaluation boards are designed to demonstrate the features of
image sensors products from ON Semiconductor. This headboard is
intended to plug directly into the Demo 3 system. Test points and
jumpers on the board provide access to the clock, I/Os, and other
miscellaneous signals.
Features
Clock Input
Default – 27 MHz Crystal Oscillator
Optional Demo 3 Controlled MClk
Two Wire Serial Interface
Selectable Base Address
Parallel Interface
HiSPi (High Speed Serial Pixel) Interface
ROHS Compliant
Block Diagram
© Semiconductor Components Industries, LLC, 2015
November, 2015 − Rev. 0

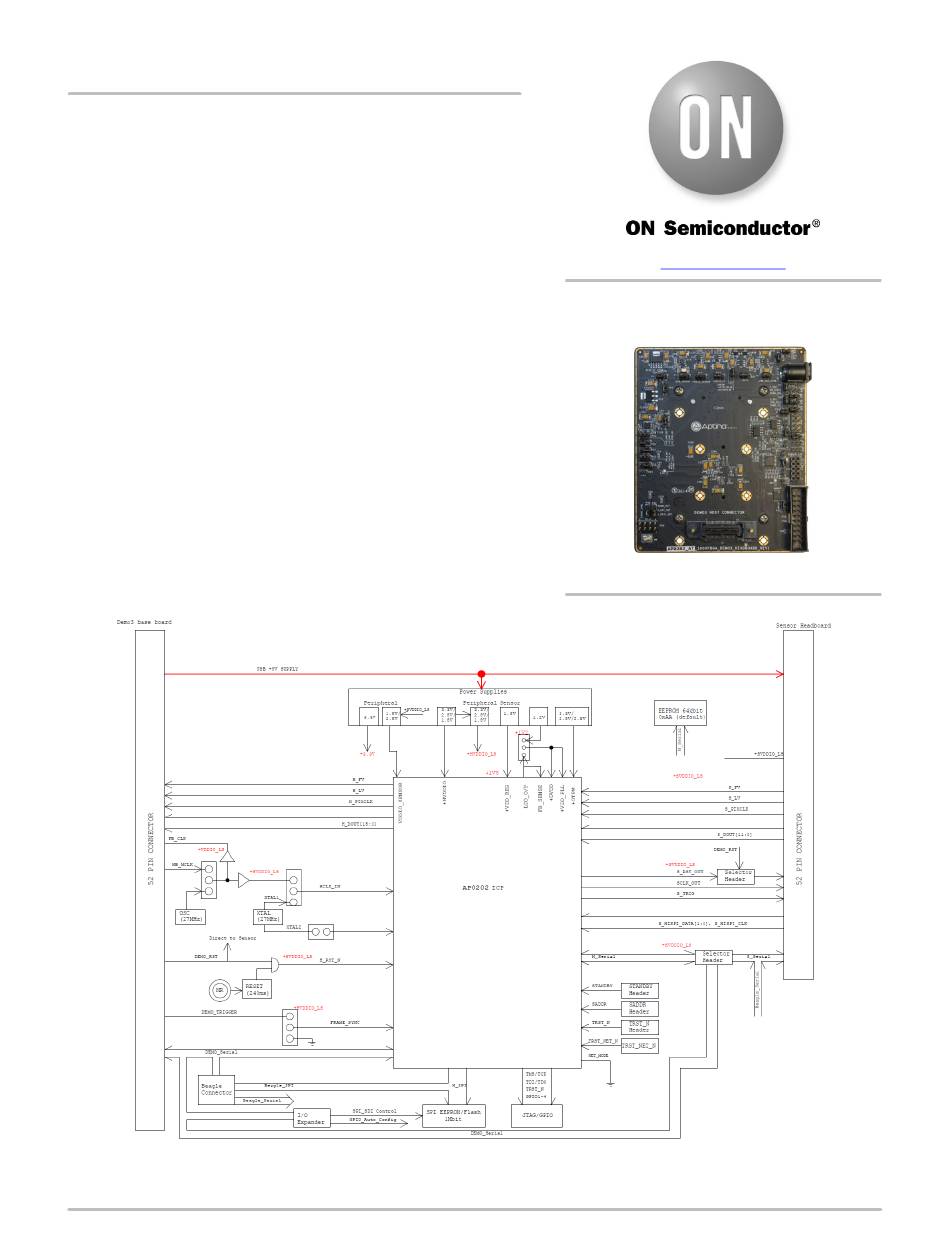

Figure 2. Block Diagram of AP0202ATSL00XUGAH3−GEVB
EVAL BOARD USER'S MANUAL

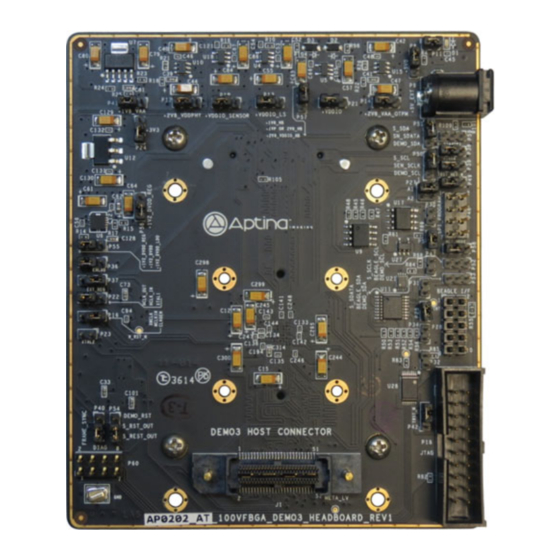

Figure 1. AP0202AT Evaluation Board
1
www.onsemi.com
Publication Order Number:
EVBUM2329/D

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP0202ATSL00XUGAH3-GEVB and is the answer not in the manual?

Questions and answers

Summary of Contents for ON Semiconductor AP0202ATSL00XUGAH3-GEVB

  • Page 1 Evaluation Board Overview The evaluation boards are designed to demonstrate the features of www.onsemi.com image sensors products from ON Semiconductor. This headboard is intended to plug directly into the Demo 3 system. Test points and EVAL BOARD USER’S MANUAL jumpers on the board provide access to the clock, I/Os, and other miscellaneous signals.
  • Page 2 AP0202ATSL00XUGAH3−GEVB Top View Headboard Connector P6 RESET Switch SW7 Figure 3. Top View of the Board − Default Jumpers Bottom View +VDDIO P21 +VDDIO Select P57 +2V8_VAA_OTPM P14 +VDDIO_LS P13 ON_LED P11 +VDDIO_SENSOR P19 +5V0 P8 +2V8_VDDPHY P12 +1V8_VAA P41 SEN_SDATA P51 +3V3 P24 TRIGGER P59...
  • Page 3 AP0202ATSL00XUGAH3−GEVB Jumper Pin Locations The jumpers on headboards start with Pin 1 on the leftmost side of the pin. Grouped jumpers increase in pin size with each jumper added. Pin 1 Pins 1−4 Figure 5. Pin Locations for a Single Jumper. Pin 1 is Located at the Leftmost Side and Increases as it Moves to the Right Pin 1 Pins 1 and 2...
  • Page 4 AP0202ATSL00XUGAH3−GEVB Table 1. JUMPERS AND HEADERS (continued) Jumper/Header No. Jumper/Header Name Pins Description +VDDIO 2−3 (Default) Using On-Board Power Supply 1−2 Using +1V8_HB or +2V8_HB Power Supply from Demo 3 Baseboard P22, P23 OSC/XTAL Select P22 2−3, Oscillator/Demo Clock Selected P23 Open (Default) P22 1−2, On-Board Crystal Selected...
  • Page 5 When Pushed, 240 ms Reset Signal will be Sent to AP0202 Interfacing to ON Semiconductor Demo 3 Baseboard The ON Semiconductor Demo 3 baseboard has a similar The four mounting holes secure the baseboard and the 52-pin connector which mates with J1 of the headboard.
  • Page 6: Technical Support

    LIMITATIONS OF LIABILITY: ON Semiconductor shall not be liable for any special, consequential, incidental, indirect or punitive damages, including, but not limited to the costs of requalification, delay, loss of profits or goodwill, arising out of or in connection with the board, even if ON Semiconductor is advised of the possibility of such damages. In no event shall ON Semiconductor’s aggregate liability from any obligation arising out of or in connection with the board, under any theory of liability, exceed the purchase price paid for the board, if any.
