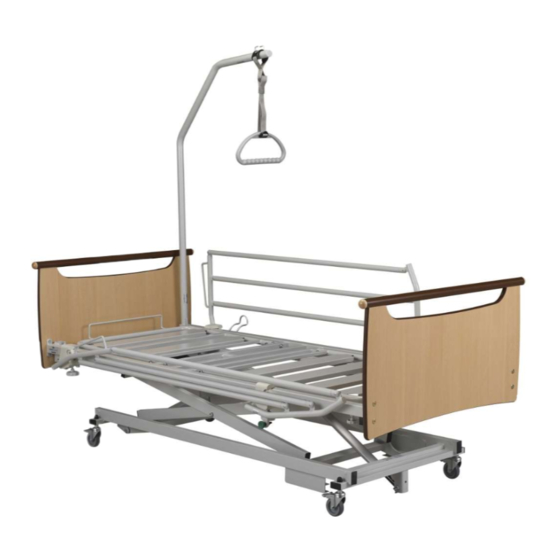

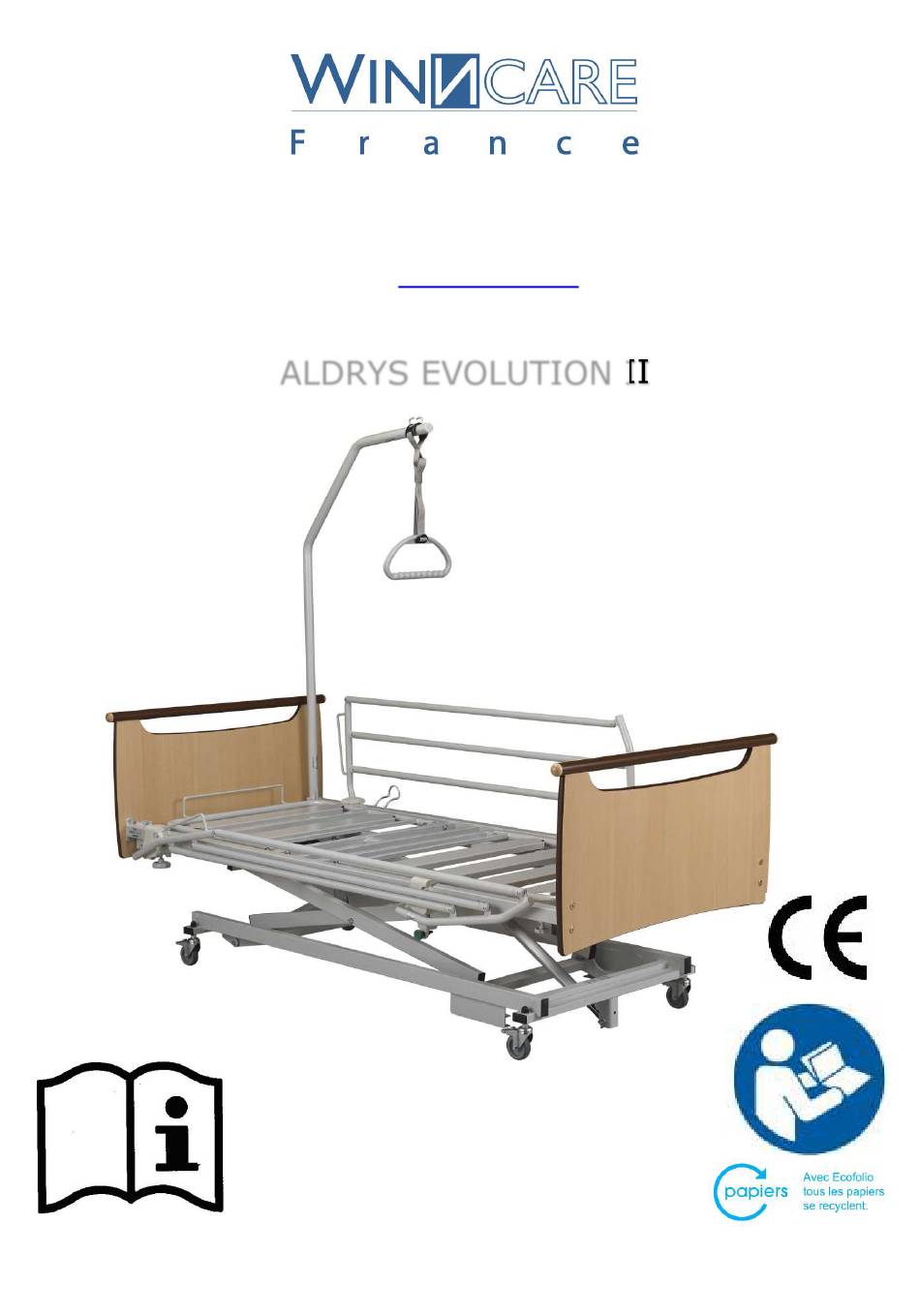

- Page 1 4 Le Pas du Château 85670 SAINT PAUL MONT PENIT TEL : +33 (0)2 51 98 55 64 FAX : +33 (0)2 51 98 59 07 Email : info@medicatlantic.fr Site Internet : http://www.winncare.fr ALDRYS EVOLUTION II AL5R/P/C 2019_04_01 580034 Anglais...
-
Page 2: Table Of Contents
1. TRANSPORT AND STORAGE 2. BED ENVIRONMENT CONDITIONS 3. GENERAL USE 3.1. P RECAUTIONS FOR USE 3.2. E LECTRICAL CHARACTERISTICS 3.2.1. E LECTRICAL DATA 3.2.2. P ROTECTION LEVEL AGAINST DUST AND LIQUID PENETRATION 3.2.3. E LECTROMAGNETIC COMPATIBILITY 3.2.4. E QUIPOTENTIALITY 4. - Page 3 9.1. B OARDS 9.2. M ETAL SIDE RAILS 9.3. W OODEN BARRIERS 9.4. A LUMINUM HALF SIDE RAILS 9.5. A NGLED LIFTING POLE AND STAND 10. SPECIFIC FUNCTIONALITIES 10.1. W ALL STOP 11. MAINTENANCE 11.1. I DENTIFICATION 11.2. I NSTRUCTIONS FOR DISMANTLING THE MOTORS 11.3.
-
Page 4: Transport And Storage
Dear Sir/Madam, You have acquired a WINNCARE medical bed equipped with its accessories, and we thank you for your custom. Our beds and their accessories are designed and manufactured in compliance with the essential requirements of the European Directive 93/42/EEC and 2007/47/EEC. - Page 5 The wired control must be hooked to the headboard when not in use. In the case of the use of infrared remote control(s), WINNCARE allows the establishment of a single bed in the same room (or in a close environment) or a second bed only if the infrared options of 2 beds concerned are different (I and I1).
-
Page 6: Electrical Characteristics
Only use original parts and accessories supplied by WINNCARE to guarantee safety and maintain product conformity. The bed must not be modified. Abnormal use of the bed may damage it or cause accidents to users, in which case the warranty shall be annulled. -
Page 7: Protection Level Against Dust And Liquid Penetration
PROTECTION TYPE VOLTAGE FREQUENCY INDEX LA27 / LA24 / LINAK actuator IP 66 24V DC LA34 / LA40 CA40 / CB6 / Supply box IP 66 230V AC 50 Hz CB16 / CO61 / CO41 Connection box IP 66 24V DC Operator’s side control IP 66 24V DC... -
Page 8: Electromagnetic Compatibility
3.2.3. Electromagnetic compatibility The bed will not move automatically when subject to electromagnetic disturbances within the limit of the values indicated below. Manufacturer’s declaration and guide – electromagnetic emissions The medical bed (see references in contents) has been designed for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment. -
Page 9: Equipotentiality
Radiated RF 3 V/m 3 V/m EN 61000-4-3 80 MHz to 800 MHz 80 to 800 MHz 80 MHz to 2.5 GHz 800 MHz to 2.5 GHz 2 to 2.5 GHz where is the maximum output power rating of the transmitter in watts (W) according to 10 V/m the transmitter manufacturer and d the recommended separation distance in meters (m). -
Page 10: Bed Boards 90Cm/100Cm Width Compatible
4. BED BOARDS 90cm/100cm WIDTH COMPATIBLE Item L=90cm L=100cm MEDIDOM II (2)(4) P318-00 P323-00 MEDIDOM II HOTELIER (4)(6) P326-00 COTE DE LUMIERE (5) P360-00 DAGONE (5) P388-00 ELEGANTTI P414-00 LOUIS PHILIPPE (1)(2) P415-00 COTE DE LUMIERE with wooden barriers (2)(5) P549-00 VAL DE VIE with wooden barriers (2)(4) P552-00... -
Page 11: Compatible Accessories
Stainless steel intravenous stand on base Y0300 Lifting pole on U shaped base, fixed height Only accessories and boards supplied by WINNCARE guarantee you a compatibility with our products. Incompatible accessories and boards can pose RISKS... -
Page 12: Use
6. USE 6.1. Purpose of bed Depending on their configuration, Aldrys Evolution beds are intended for home use (HAD – MAD), EPHAD and HPA. Aldrys Evolution beds with the emergency flattening option of the back rest and locking of functions are designed for medical care centers. -
Page 13: Technical Characteristics
Raise the Aldrys Evolution bed to a minimum height of 30 cm when using a patient lift or overbed table. WINNCARE recommends the use of a patient lift or a dining table bases with less than 120 mm high. Version (C) -
Page 14: Weight
6.4.2. Weight Normal load in use: 170 kg (Patient 135 kg, Mattress 20kg. Accessories 15kg) Base and Head-end bed Foot-end bed TOTAL brace base base Bed, version manual crank leg rest (without 85,5 kg 41,5 kg 23 kg 21 kg boards) (C) Bed, version electric folding leg rest (without 89,5 kg... -
Page 15: Remote Control
6.6. Remote control Carry out a test cycle when the bed is empty to familiarise yourself with the bed functions. Lifting and lowering of back rest Lifting and lowering of variable height Lifting and lowering of electric folding Simultaneous lifting and lowering of back rest and folding KEY TO LOCK A FUNCTION KEY IN VERTICAL... -
Page 16: Braking
6.7. Braking 6.7.1. Separate braking Check that the wheels are locked by trying to move the bed. If this is not done, the patient or another person who leans on the bed may fall. 6.7.2. Centralized braking (option A) -
Page 17: Assembling And Dismantling
7. ASSEMBLING AND DISMANTLING 7.1. Assembling 1. Place the base with the cross brace in the braked position. 2. Position the head-half of the bed base on the cross brace and secure the 2 pins (A). 3. Take out the power lead on the head end above the cross member, secure it on the structure using the clip and plug into the mains. -
Page 18: Dismantling
7.2. Dismantling 1- Brake the castors and lift the bed to its highest position. 2- Dismantle the accessories: lifting pole, side rails and boards. 3- Unplug the electric lead of the leg rest motor (Use a screwdriver to release the jack wire) (E). 4- Remove the clip in the middle of the two ½... -
Page 19: Operation Of The Sleeping Surface
8. OPERATION OF THE SLEEPING SURFACE 8.1. Back rest 8.1.1. Standard back rest In the event of a power cut or failure, flatten the back rest as follows : a) Disconnect the power supply. b) Dismantle the headboard . c) Stand at the head of the bed and take hold of the back rest handle with one hand. Push or lift to compensate the pressure exerted by the patient and unhook the clip ... -
Page 20: Emergency Release Of The Back Rest (Cardio Pulmonary Resuscitation)
8.1.3. Emergency release of the back rest (Cardio Pulmonary Resuscitation) 1) Grasp the back rest with one hand. 2) With the other hand, activate one of the two handles on the back rest while lowering. If the handle is released, the back rest will stop moving. Release handles To reactivate the cardiopulmonary resuscitation system of high-load beds (270Kg), actuate the backrest electric actuator to its minimum position by pressing the... -
Page 21: Metal Side Rails
Removing a bed board : Assemble the highest board on the head side. 9.2. Metal side rails To positionning the side rail : Feet side Head side Insert amount of the side rail folded in the grip jaw on the head side of the bed to hear “CLIC”. ... -
Page 22: Wooden Barriers
To lower the side rail : Feet side Head side To raise the side rail : Check that the side rail is locked by trying to fold it without using the release pin 9.3. Wooden barriers See the attached instructions for fitting the wooden side rail. ... -
Page 23: Aluminum Half Side Rails
9.4. Aluminum half side rails See the attached instructions for fitting the aluminum half side rails. To raise the side rail. 1-In intermediate position : Raise the top side rail with both hands until it locks. Check that it is properly slot in by trying to get it down without using the unlocking buttons. 2-In high position : ... -
Page 24: Angled Lifting Pole And Iv Stand
To lower the side rail. Raise the top side rail. Press on the two unlocking buttons with both hands. Support the rail as it lowers. 9.5. Angled lifting pole and IV stand In case of psycho-behavioral problems of the patient, it is necessary to fix the stem to the bed with the screw and the washer provided. -
Page 25: Specific Functionalities
10. SPECIFIC FUNCTIONALITIES 10.1. Wall stop The wall stop can be mounted on the cross member of the head-end of the base. Remove the cross member plug and insert the stop pin in the hole of the cross member. -
Page 26: Maintenance
No maintenance should be done in the presence of a patient on the bed. 11.1. Identification Warning Manufacturer’s address WINNCARE MEDICATLANTIC 4 LE PAS DU CHATEAU ST PAUL MT PENIT. Complies with the 85670 . FRANCE. +33(0)2 51 98 55 64... -
Page 27: Maintenance
11.3. Maintenance Quality control of medical beds will be made by technical staff or trained biomedical and taking into account the normal conditions of use specified in the user guide, on a bed equipped with its accessories, including its barriers if necessary. The bed must be available to perform all quality control at least once a year, but also on special request and corrective maintenance on the performance that could be affected by the intervention. -
Page 28: Quality Inspection Of Medical Beds
11.4. Quality inspection of medical beds ANNUAL MAINTENANCE OF MEDICAL BEDS IDENTIFICATION ESTABLISHMENT Type model / Trademark : Date of manufacture : Serial or park number : Application Environment VISUAL CONTROL Congruent Improper applicable Identification - label General cleanliness Condition and attachment of head and footboards Lifting pole (fastening, strap, winder, …) Sleeping surface (bedspring) Verification of tightenings, diverse nuts and bolts, pins, pivot... -
Page 29: Cleaning And Disinfection
11.5. Cleaning and disinfection High pressure cleaning, machine cleaning, washing tunnel or jet cleaning is prohibited. Unplug the mains lead. Check that all the electrical parts are connected together. All the sockets of the supply box must be used or filled, otherwise its watertightness is not guaranteed. -
Page 30: Lifetime
Do not rinse or wipe. Check the operation of all the bed functions Repair if necessary Pack in thermoplastic film Warning In the event of additional precautions (Contact precautions, Droplets or Air), apply the measures recommended by the hospital hygiene department The use of a Javel water solution of more than 5000ppm (0.5% of active chlorine) should be justified by a microbiological risk and only applied for the required time (Risk of ageing of some materials, especially their colour). -
Page 31: Troubleshooting Guide
11.8. Troubleshooting Guide DEFAULT POSSIBLE CASE HELP The whole bed is not working The bed is not electrically powered Check the electrical connection (Green power LED on controlbox) The remote control is fully locked Unlock the remote control The infrared remote control is not powered or is not Remove the rear cover connected to the receiver. -
Page 32: Scrapping
Environment Department of Winncare at n ° +33 (0)2.51.98.55.64 Winncare also encourages you to limit the possible effects of waste on the environment and public health in all other countries, by complying with local selective sorting laws, separating waste from Electrical and Electronic...
