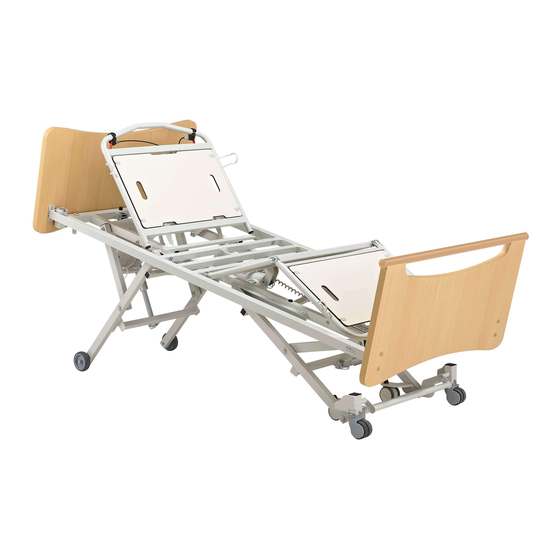

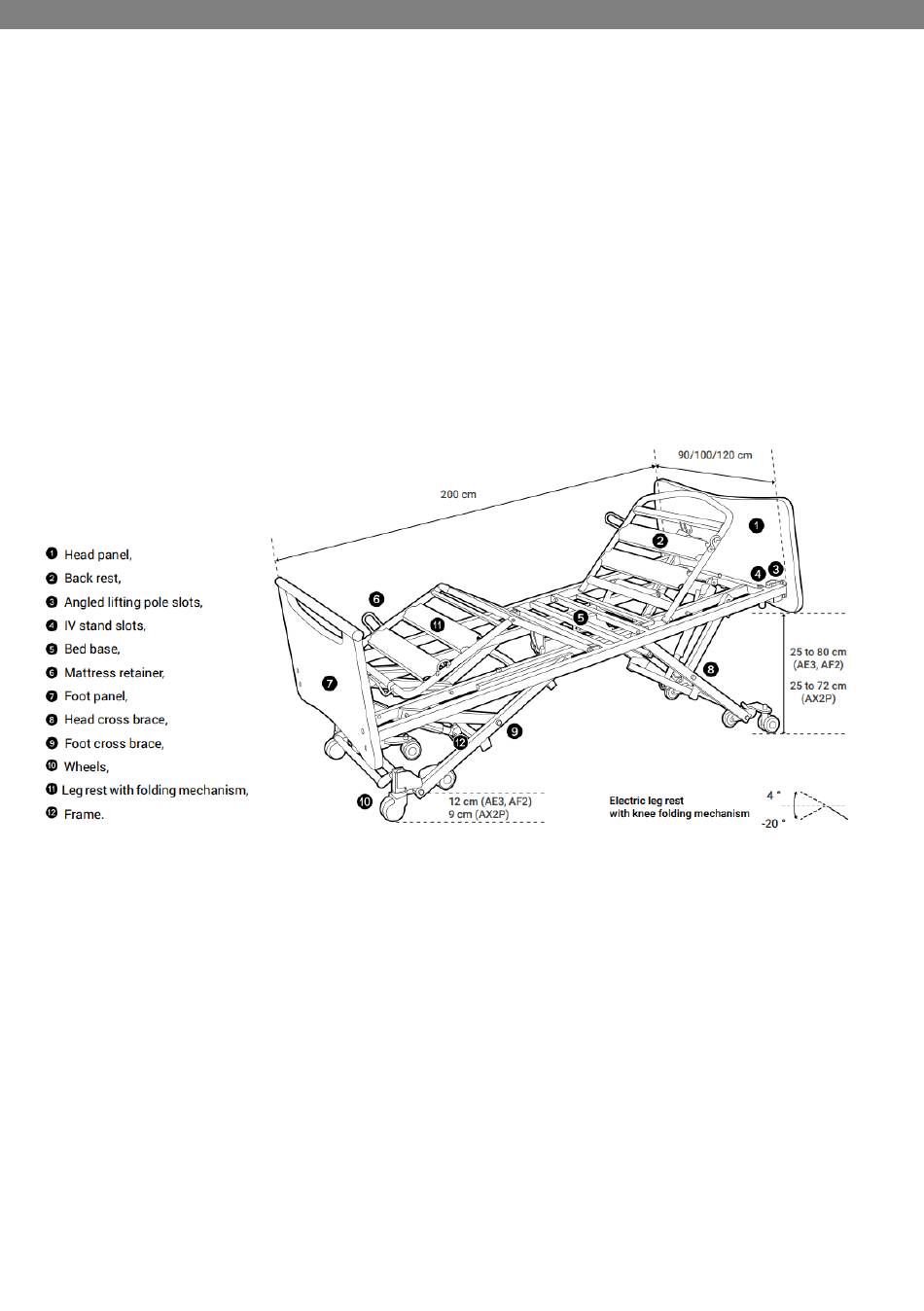

- Page 1 WINNCARE France Technical Manual AERYS Medical Beds TM_AERYS_EN 16/10/2024 - 1 -...
-
Page 2: Table Of Contents
Barriers, SAM, and accessories ....................... - 10 - Wall stop A670-00 without breaking (AERYS & AERYS COMFORT) ..........- 10 - Wall stop A670-00B with optional masked wheels (AERYS & AERYS COMFORT) ......- 10 - Wall stop A663-00 (AERYS XXL) ...................... - 11 - Trendelenburg / back tilt ........................ -
Page 3: Transport And Storage
WINNCARE France TRANSPORT AND STORAGE For transport, the bed should be in its low position, and strapped and protected. The wired control and supply lead should be attached to the bed base. The head and foot boards are protected and strapped to the sleeping surface. -
Page 4: Immunity Test
WINNCARE France emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions Class B CISPR 11 The medical bed (see references in contents) can be used Harmonic emissions in all domestic environments, including those directly... -
Page 5: Equipotentiality
WINNCARE France 180°, 225°, 270° 0% U ; 1 cycle and 315° 70% U ; 25/30 cycles at 0° 0% U ; 1 cycle 70% U ; 25/30 cycles at 0° Voltage 0% U ; 250/300 interruptions 0% U ; 250/300 cycles... -
Page 6: Electrical Components
WINNCARE France LECTRICAL COMPONENTS Warning: Maximum operating time → Read the recommendations on the electrical label on the bed. Meaning of protection ratings: IP66: Protection against solids: Totally protected against dust, Protection against water intrusion: Protected against strong water jets from all directions to the lance (12.5 mm nozzle, distance 2.5 m to 3 m, flow rate 100 L/min... -
Page 7: Electrical Connection Diagram
REMOTE CONTROL AERYS USTOMISED VARIABLE HEIGHT POSITION All AERYS bed controls (except Infra Rouge, for which the wired nurse keypad must be used) can be used to store a stop at a personalized variable height position (factory-set floor/sleeping surface position at 330 mm) by simultaneously pressing the two variable height buttons (5-second continuous beep). -
Page 8: Lock Remote Control Functions
WINNCARE France OCK REMOTE CONTROL FUNCTIONS • Mechanical locking HL-- • Magnetic locking KH21 AERYS ESET OF THE BED WITHOUT LATERAL DISPLACEMENT - 8 -... -
Page 9: Reset Of The Aerys Bed With Lateral Displacement
WINNCARE France AERYS ESET OF THE BED WITH LATERAL DISPLACEMENT PTION Option U: 3-function remote control (no Anti-Trendelenburg or Anti-Trendelenburg access), Option I: Infrared remote control, Option R: wired nurse unit, Option N: remote control on FPP flexible arm. - 9 -... -
Page 10: Installing Accessories And Special Features
WINNCARE France INSTALLING ACCESSORIES AND SPECIAL FEATURES , SAM, ARRIERS AND ACCESSORIES Please refer to the instruction for use for these products. A670-00 (AERYS & AERYS COMFORT) ALL STOP WITHOUT BREAKING • Version without locking • Version with locking Warning: After fitting the wall stop, lower the bed against the wall to ensure that the head carriage does not move when the bed is raised, and to prevent damage. -
Page 11: Wall Stop A663-00 (Aerys Xxl)
3 seconds. WINNCARE France recommends leaving a space of at least 50 cm between the headboard and the wall in the case of use of the Trendelenburg position with a bracket or IV pole. - Page 12 WINNCARE France • AERYS & AERYS COMFORT Forward tilt 17° Trendelenburg 12° Trendelenburg 5° Upon activation of the function Trendelenburg, 1 stop occurs 5°, to reach the position Trendelenburg 12°. To resume the movement, release the button and press again or staying press 3 seconds.
-
Page 13: Power Supply Unit Initialization
WINNCARE France Trendelenburg 11° Trendelenburg 4° Upon activation of the function Trendelenburg, 1 stop occurs 4°, to reach the position Trendelenburg 12°. To resume the movement, release the button and press again or staying press 3 seconds. The forward tilt position occurs at 15°. -
Page 14: Troubleshooting Guide
WINNCARE France OPERATION OF THE NIGHT LIGHT (option) TROUBLESHOOTING GUIDE DEFAULT POSSIBLE CASE HELP The bed is not electrically Check the electrical connection powered (Green power LED on control box) The remote control is fully Unlock the remote control locked... - Page 15 WINNCARE France key is pressed on the remote control A continuous beep sounds when a key The backup battery has Reconnect the bed to the mains to recharge is pressed on the reached its last cycle the battery remote control...
-
Page 16: Maintenance
WINNCARE France MAINTENANCE Warning: No maintenance should be done in the presence of a patient on the bed. DENTIFICATION NSTRUCTIONS FOR DISMANTLING THE MOTORS Warning: Unplug the device before dismantling. Dismantle when the bed is empty or in the side position. - Page 17 WINNCARE France Verification that the electrical leads are connected all along the metal jambs to prevent shearing of these leads when the variable height is being activated. Verification that all the electrical leads and plugs are in good condition. Replacement if there is the slightest alteration (wear, shearing, damage, etc.).
-
Page 18: Medical Beds Control Sheet
WINNCARE France EDICAL BEDS CONTROL SHEET - 18 -... -
Page 19: Cleaning And Disinfection
WINNCARE France LEANING AND DISINFECTION High pressure cleaning, or jet cleaning is prohibited. Unplug the mains lead. Check that all the electrical parts are connected. All the sockets of the supply box must be used or filled, otherwise its watertightness is not guaranteed. -
Page 20: Scrapping
WINNCARE France at n ° +33 (0)4.66.02.15.15. WINNCARE France also encourages you to limit the possible effects of waste on the environment and public health in all other countries, by complying with local selective sorting laws, separating waste from Electrical and Electronic Equipment (EEE), as well as batteries and accumulators. - Page 21 WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE Tél. : +33 (0)4.66.02.15.15 Fax. : +33 (0)4.66.02.15.00 Email: contact@winncare.fr www.winncare.com...
