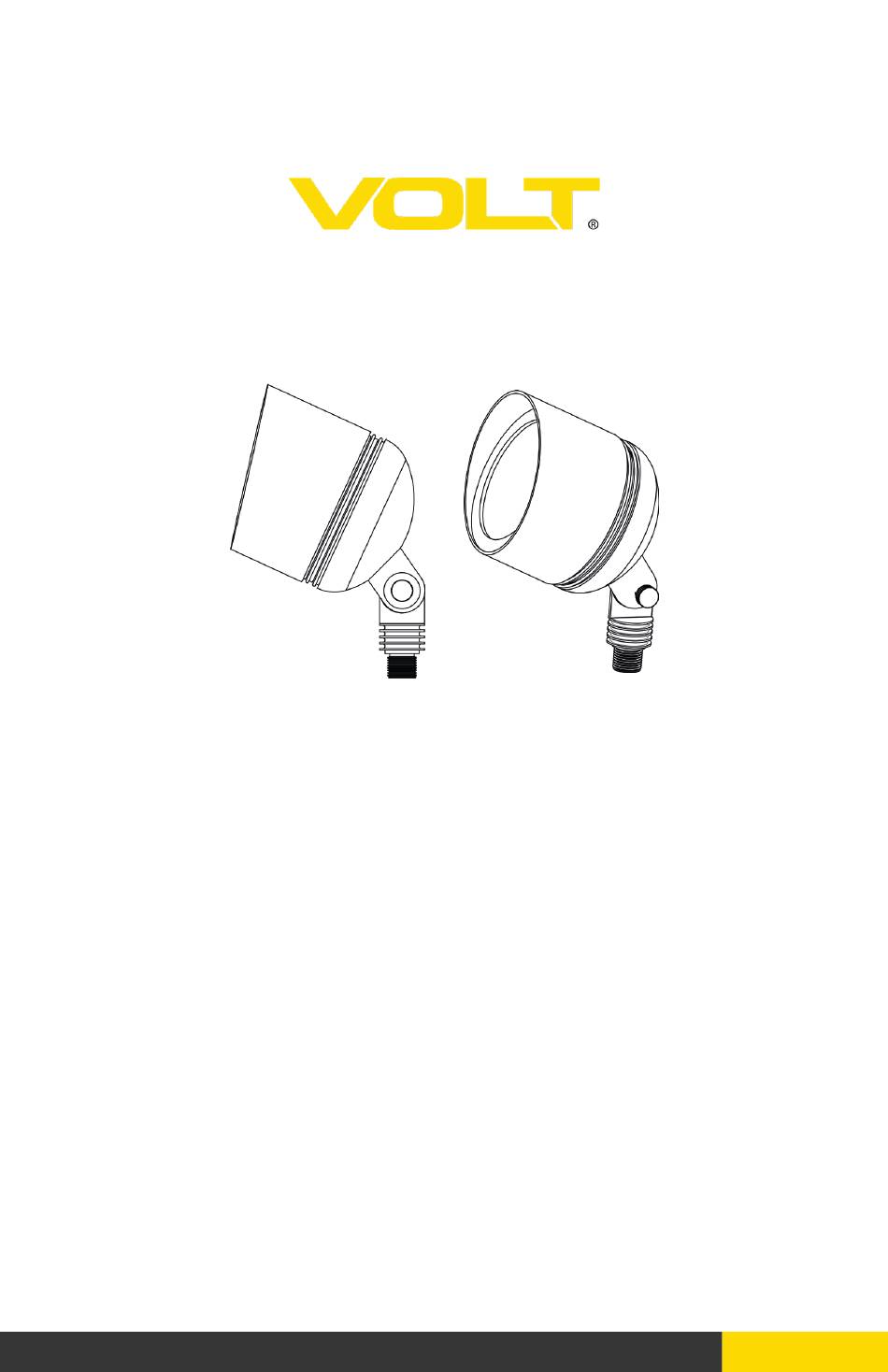

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Big Par36 Brass Black Flood ® ITEM: VFL-4520-BBK 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Big Par36 Brass Black Flood Light VFL-4520-BBK ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture B. (1) Stake PRODUCT DIMENSIONS ” ” 2” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Big Par36 Brass Black Flood Light VFL-4520-BBK ® INSTALL LAMP Use a PAR36 lamp (sold Lamp separately), with correct wattage and type as marked on luminaire label. Connect supply wires to screws Supply Wire on the bottom of lamp, tighten until snug with screwdriver.
- Page 5 Install Fixture to Stake Clear away an area in the Luminaire ground at the wireway slot on Wireway Slot top of the stake. Lay luminaire pigtail into the wireway slot Base and secure the fixture onto the Pigtail stake. Tighten until snug. Stake Wire Connection Pigtail...
- Page 6 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
