Summary of Contents for Volt VFL-4028

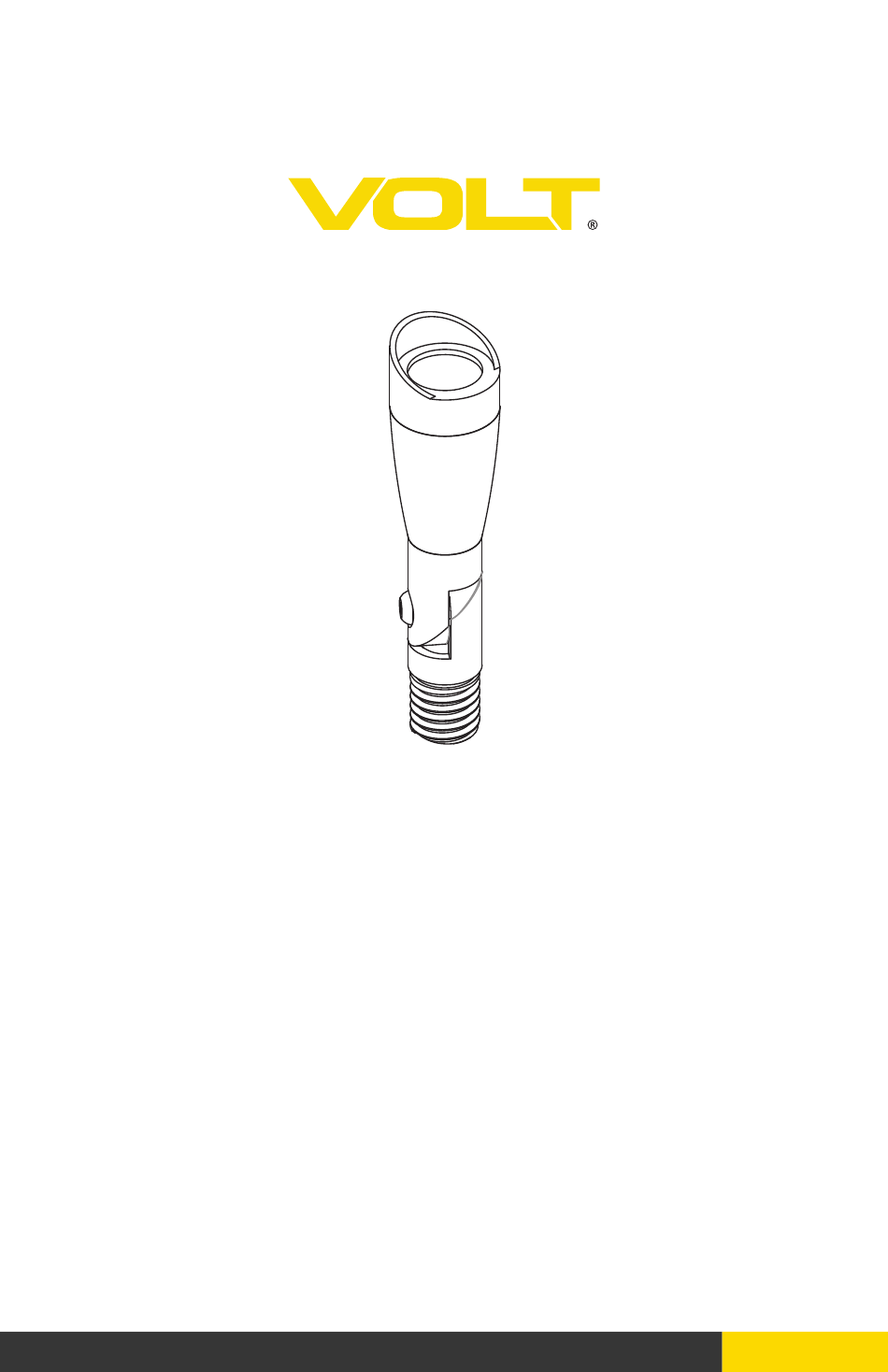

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Nano Integrated LED Flood Light ® ITEM: VFL-4028 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Nano Integrated LED Flood Light - VFL-4028 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body C. (1) Stake B. (1) Allen Wrench PRODUCT DIMENSIONS 0.75” 2.48” INSTALL FIXTURE BODY TO STAKE Pass the supply wires of the fixture body through the wireway slot on the stake. Thread the Fixture Body fixture body onto the stake.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Nano Integrated LED Flood Light - VFL-4028 ® INSERT STAKE INTO SOIL Insert the stake into the desired soil until flange of Fixture Body stake is flush to the ground. Stake Ground Soil WIRE CONNECTIONS Strip both leads from Main Supply Cable luminaire pigtail.
