INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

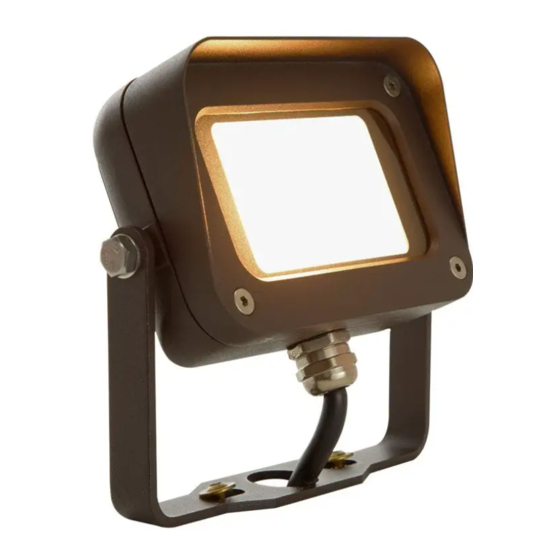

LED Flood Light with Yoke Mount
®
VFL-451X-ABZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2021, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Related Manuals for Volt VFL-451X-ABZ
Summary of Contents for Volt VFL-451X-ABZ
- Page 1 VFL-451X-ABZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS VOLT LED Flood Light with Yoke Mount ® VFL-451X-ABZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture body Parts Required A. (1) Mounting Accessory C. (1) Hex Nut B. (1) Coupler Product Dimensions 1.18” 1.1” 8.27” 0.79” 5.12” 0.63” 4.83” 7.67” 3.16” 2” 5.33” 4.06” 3.66” 6.62” 4.73” 7.89” 1.04” 2.08” 1.5” 2.74”...
- Page 4 INSTALLATION INSTRUCTIONS VOLT LED Flood Light with Yoke Mount ® VFL-451X-ABZ Install Stake Determine the desired location Board for mounting the stake. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 5 Wire Connections Wire Connectors Fixture Wires Main Supply Cable Strip both leads from the fixture wires. Using two UL listed wire connectors (sold separately), connect the leads from the fixture wires to the main supply cable leads. Adjust Fixture Body Direction Adjust the fixture body to Rotate the desired orientation and...
