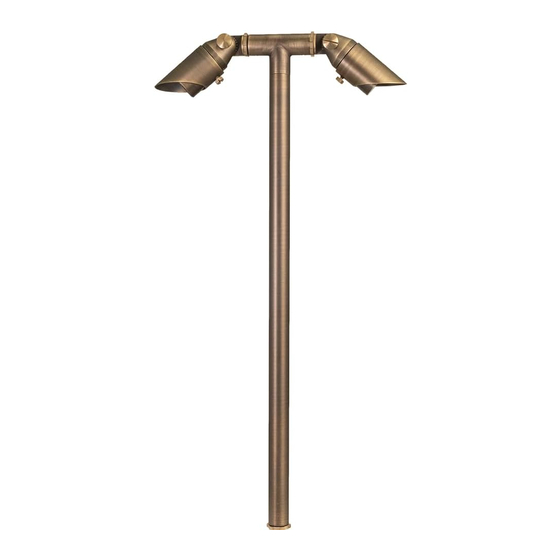

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Top Dog Scotty Mini Twinnovator Brass Path & Area Light ® ITEM: VPL-3398 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 INSTALLATION INSTRUCTIONS VOLT Top Dog Scotty Mini Twinnovator Brass Path & Area Light - VPL-3398 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture PACKAGE CONTENTS A. (2) MR11 Lamps PRODUCT DIMENSIONS 14” 5.7” 6.25” 4” 2.25” 25.25” INSTALL STAKE Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Top Dog Scotty Mini Twinnovator Brass Path & Area Light - VPL-3398 ® REMOVE GLARE GUARD AND LENS Fixture Loosen the set screws and remove the glare guards from the lens. Then Lens remove the lens from the fixture.
- Page 5 INSTALL FIXTURE TO STAKE Clear away area in ground at wireway slot in top of stake. Align the wireway slots on base and stake. Lay luminaire pigtail into wireway slots and screw fixture into stake. Tighten until snug to secure base. Fixture Wireway Slot Pigtail...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Top Dog Scotty Mini Twinnovator Brass Path & Area Light - VPL-3398 ® ADJUST ANGLE OF LAMP Adjustment By using screwdrivers, loosen Screws adjustment screws and adjust lamps to your desired angles and then tighten adjustment screws.
- Page 7 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
