INSTALLATION INSTRUCTIONS
VOLT
®

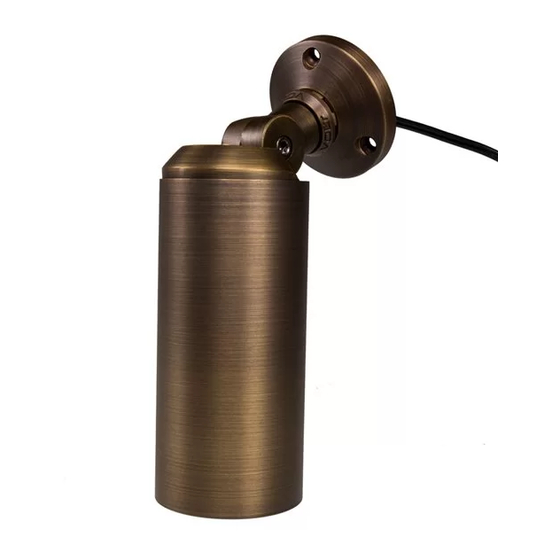

LED Top Dog Tommy Light
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2015, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt LED Top Dog Tommy Light
Summary of Contents for Volt LED Top Dog Tommy Light
- Page 1 LED Top Dog Tommy Light Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2015, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@voltlighting.com • 813.978.3700...
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT LED Top Dog Tommy Light ® Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
Package Contents A. (1) Fixture Parts Required (Sold Separately) C. (1) LED MR16 Lamp A. (3) Self-tapping Screws B. (3) Wall Anchors Product Dimensions 5.5” 2.5” Remove Shield and Glare Guard Use a screwdriver to unlock the screw. Then, remove the glare guard from the shield. -
Page 4: Install Lamp
INSTALLATION INSTRUCTIONS VOLT LED Top Dog Tommy Light ® Install Lamp Insert lamp with correct wattage and type marked on fixture label. CAUTION: Do not exceed maximum wattage marked on luminaire label. Socket NOTE: DO NOT touch lamp with bare hands. Use soft cloth to Lamp handle lamp. -
Page 5: Install Fixture
Install Fixture Determine your desired location Wall Anchor for the fixture. Pass self-tapping (Sold Separately) screws through the holes on the [Optional] surface mount. Thread self-tapping screws into wall surface to secure the fixture. Self-tapping Screw (Sold Separately) NOTE: Wall anchors (Sold separately) are required for brick walls or concrete walls. - Page 6 INSTALLATION INSTRUCTIONS VOLT LED Top Dog Tommy Light ® Adjust Angle of Lamp Loose adjustment screw and adjust lamp to your desired angle and then tighten adjustment screw. Adjustment Screw Install/Replace Lamp Unscrew screws on glare guards and remove glare guards and shields to expose the lamp and replace it with correct wattage and type marked on fixture label.
- Page 7 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2015, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
