4.5 Sourcing volts

To source volts follow these steps:
1. Select lower display from the Main Menu.
2. Choose [VOLTS] from the primary parameters. Switch to input/
output control and select output [OUT].
3. Connect the leads for the voltage source terminals, as shown in
Figure 12.
4. Enter the voltage using the keypad.

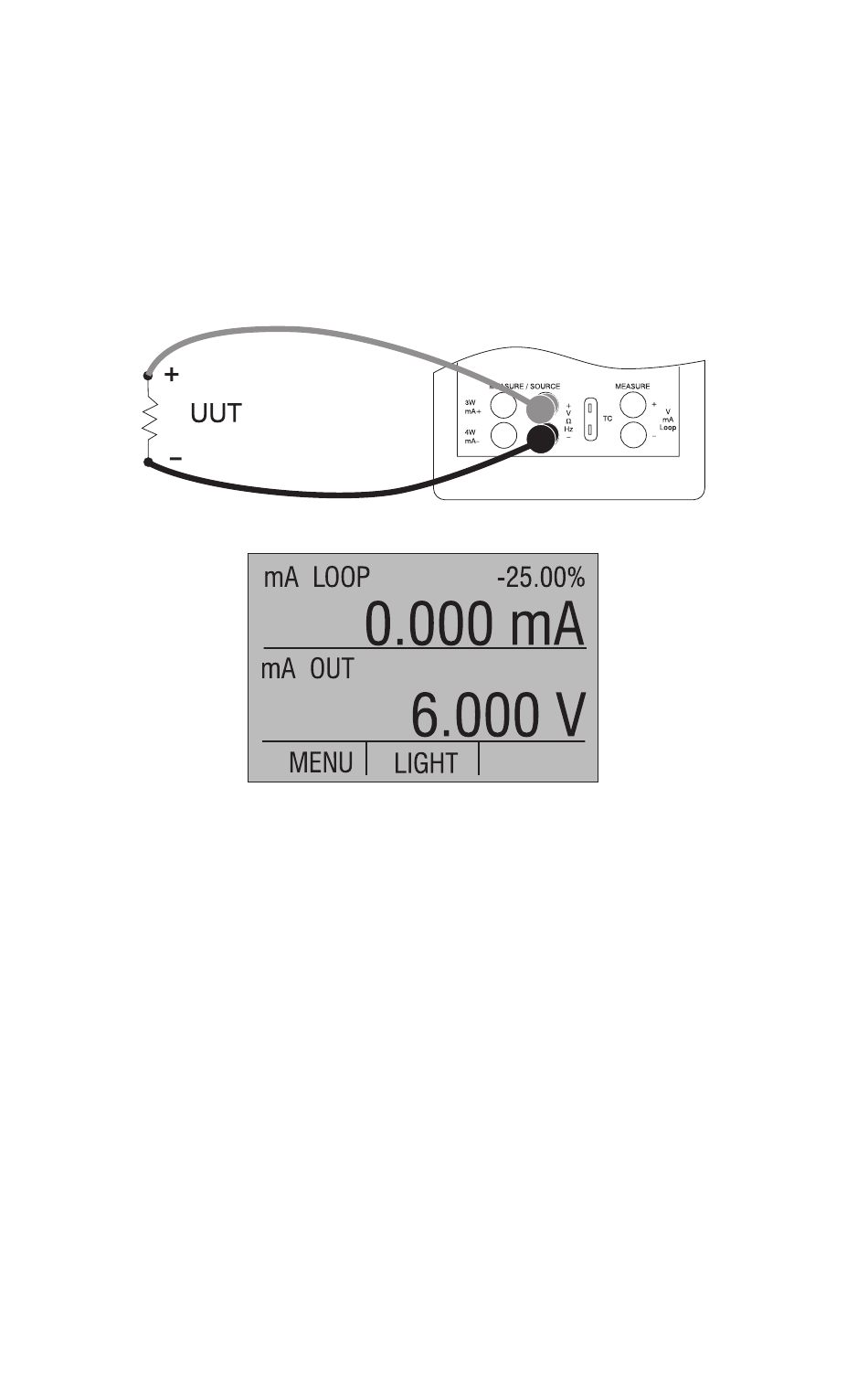

Figure 12. Connections for Sourcing Voltage and Frequency

4.6 Sourcing frequency

To source a signal use these steps:
1. Switch to the lower display and select frequency from the
primary parameters.
2. Select output, and than choose the frequency units.
3. Connect the leads to the frequency output terminals as shown in
Figure 12.
4. Enter the desired frequency using the keypad.
5. To change the amplitude, select [FREQ LEVEL] from frequency
level menu.
6. Enter the amplitude.

4.7 Sourcing a pulse train

The calibrator can produce a pulse train with an adjustable number
of pulses at a desired frequency. For example, setting the frequency
to 60Hz and the number of pulses to 60 would produce 60 pulses for
