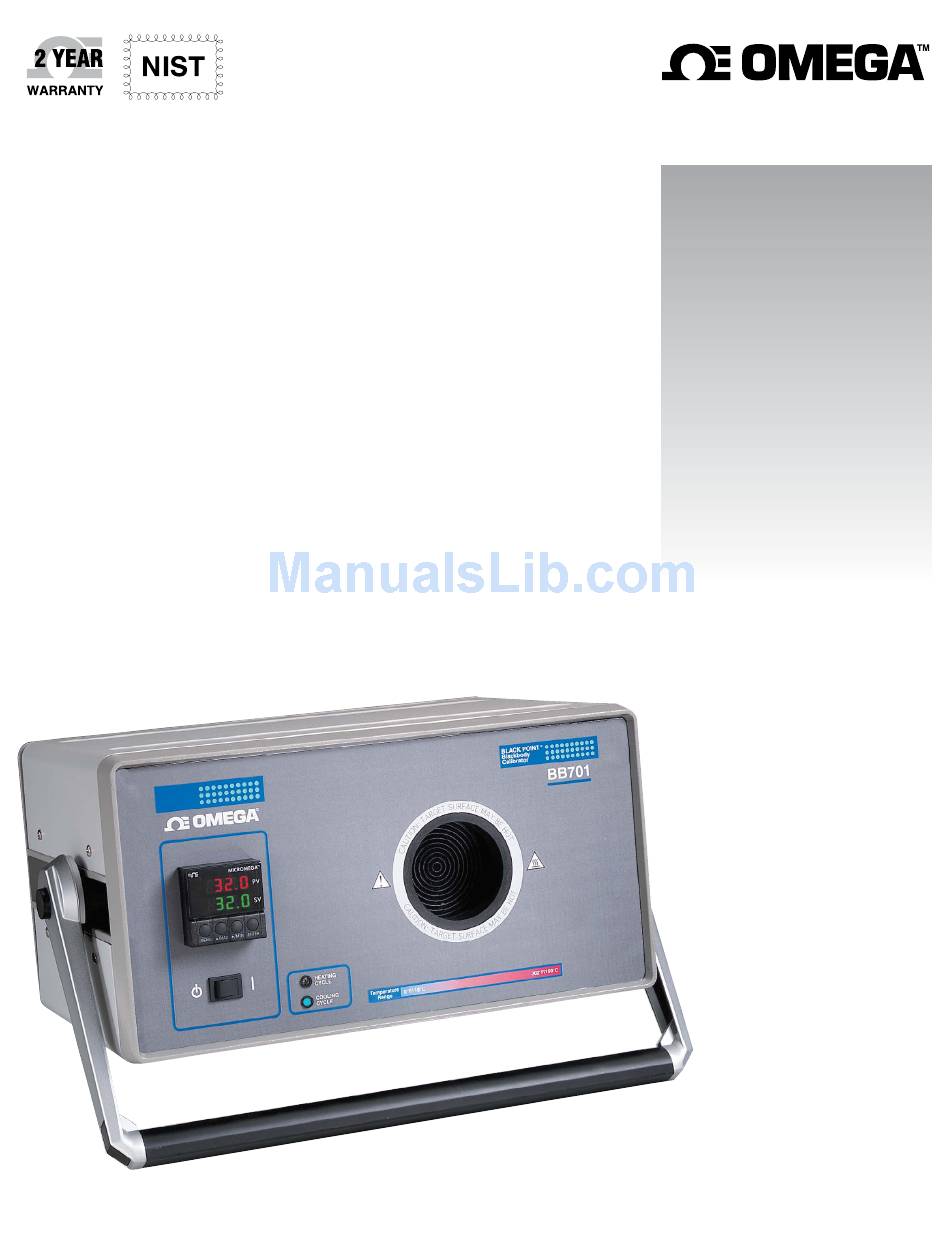

- Page 1 User’s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info BB701 Blackbody Calibrator...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
BB701 Table of Contents Section ................Page Section 1 Introduction ................. 1-1 1.1 Precautions ................1-1 1.2 Safety Warnings and IEC Symbols ........1-1 1.3 General Description .............. 1-2 Section 2 Installation ................... 2-1 2.1 Unpacking and Inspection ........... 2-1 2.2 Mounting ................ - Page 4 5. Menu Hierarchy Showing Factory Default Settings ......3-4 6. Changing The Controller’s Parameter Settings ........3-5 7. Heat Up/Cool Down Transition Time Table ........3-5 8. Connecting the BB701 to a Computer’s Serial Port ......4-1 9. Internal Reference Probe Connections ..........6-1...
-
Page 5: Section 1 Introduction
BB701 Section 1 - Introduction Your BB700 Series Blackbody Calibration Source has been designed for ease of use and reliability whenever you have the need to test or calibrate non-contact infrared temperature instruments. It is important that you read this manual completely and follow all safety precautions before operating this instrument. -
Page 6: General Description
Figure 1. IEC symbols 1.3 General Description The Model BB701 is a portable, rugged, bench-top, hot/cold blackbody calibration source with a built-in precision PID digital controller. The calibrator is used to test and calibrate infrared pyrometers. The large 2.5 inch Diameter target plate has an emissivity of 0.95 and can be set to any temperature between... -
Page 7: Section 2 Installation
4.4 to 43°C (40 to 110°F). 2.3 Ambient Temperature The target plate of the BB701 can achieve any temperature within the specified temperature range of -18 to 149°C (+0 to 300°F) when being operated in normal ambient temperature environments. The maximum specified target plate temperature of 149°C (300°F) can be achieved over the entire specified ambient... -
Page 8: Power Connection
2.4 Power Connection Standard (115 VAC~, 50/60 Hz models) The BB701 comes with a standard North American 3-prong AC power cord. Do not use any other power cord other than the one provided. This cord provides the proper grounding and has been safety tested by the proper safety agencies. -
Page 9: Section 3 Operation
BB701 Section 3 - Operation 3.1 Front Panel Controls and Indicators SETPOINT TEMPERATURE HOT CYCLE INDICATOR PROCESS TEMPERATURE COLD CYCLE INDICATOR BLACK POINT Blackbody Calibrator BB701 70.0 PV 32.0 SV Temperature 0ϒ F/-18ϒ C 300ϒ F/149ϒ C Range POWER TARGET PLATE... - Page 10 BB701 Cold Cycle Indicator: When this Blue L.E.D. is illuminated, the unit is cooling down the target plate. NOTE: P.I.D. Control: Proportional, integral, derivative control ( P.I.D.) is a temperature control algorithm used in high-end temperature controllers. The controller causes the process to attain the desired temperature by turning the process on or off.
-
Page 11: Back Panel Connections
BB701 Back Panel Connections VENT AIR PURGE NOZZLE REFERENCE PROBE PORT AC POWER INPUT SERIAL PORT FOOTING Figure 4. Back Panel AC Power Input: The customer connects the power cord to the AC Power Input. As a safety precaution, the power cord cannot be connected if the fuse compartment is open. -
Page 12: Changing The Temperature Setpoint
BB701. A detailed description of this port is described in Section 4. Changing the Temperature Setpoint The layout of the front panel is shown in Figure 3. The BB701 incorporates a PID digital setpoint controller. The upper display indicates the blackbody target plate temperature known as (PV) Process Variable, while the lower display indicates the programmed setpoint known as (SV) Setpoint Variable. -
Page 13: Changing The Controller's Parameter Settings
NOTE: Only the boldface parameters are active for the default mod of operation. The other parameters are not valid for operation with the BB701. They are only listed for the sake of complete documentation of the controller. 1. Press the key to enter the programming mode. -
Page 14: Target Plate Air Purge
BB701 Target Plate Air Purge The BB701 comes with a nitrogen air purge collar that surrounds the target plate. When connected to a nitrogen gas source the target plate is kept free of condensation at lower temperatures. Snow is likely to form on the plate when it is kept at temperatures below freezing temperature. -
Page 15: Section 4 Serial Communication
The RS232 port is optically isolated to eliminate ground loop problems. Below is a pinout diagram for the serial port of the BB701 as well as the pinout for a 9-pin PC serial port. Use a straight DB9 (female) to DB9 (male) connector cable to connect your computer to the BB701. - Page 16 BB701 Parameter List (only relevant parameters shown): PAR#: Parameter: Range/Units: Process Temp. Input determined Setpoint Input determined Baud Selection bAUd Baud Selections: Code: Baud: Parity: Data Bits: Stop Bits: 3.o.7 6.o.7 12.o.7 1200 2 (factory default settings) 24.o.7 1200 3.n.8 6.n.8...
- Page 17 BB701 XXX.X format is used to express temperature, be sure to enter a new value that conforms to the same format). <units> - This optional control word is used to specify units, C for °C (F for °F). [CR/LF] – Every transmission must be terminated with a carriage return [CR] character.
-
Page 18: Section 5 Maintenance
BB701 Section 5 - Maintenance Calibration This unit has been fine tuned at the factory and calibrated to give optimum performance of its full temperature range. It is recommended that the unit be returned annually for re-calibration. Cleaning CAUTION: Remove all electrical connections and power before attempting any maintenance or cleaning. - Page 19 For continued protection against the risk of fire replace with only the same size, type and rating fuse indicated here and on the rear panel of your unit. For model: BB701 use 1 ea. 250 VAC~, F1A (Fast-Acting, 4 Amp) UL./CSA APPROVED (.25 dia.
-
Page 20: Section 6 Reference Probe
BB701 Section 6 - Reference Probe An RTD probe has been embedded into the target plate heater assembly to be used as a reference. A connector has been provided with your calibrator for connection to this reference probe. TARGET PLATE ASSEMBLY... -
Page 21: Section 7 Specifications
BB701 Section 7 - Specifications Target Plate Temperature Range: -18.8 to 150°C (+0 to 300°F). Accuracy: ±0.8°C + 1 Digit (±1.4°F) [worst case] Display Accuracy: ±0.3°C (±0.6°F) [over entire scale] RTD Accuracy: ±0.375°C (±0.75°F) [worst case] Stability: ± 0.1°F or less... -
Page 22: Section 8 Troubleshooting Guide
BB701 Section 8 - Troubleshooting Guide Problem Solution 1. Unit will not turn on. a. Check all electrical connections. b. Check rear panel fuses. c. Unit requires service, contact our customer service department. 2. Unit turns on but the target a. -
Page 23: Section 9 Glossary Of Terms Used In This Manual
BB701 Section 9 - Glossary of Terms Used in This Manual Blackbody A theoretical object that radiates the maximum amount of energy at a given temperature, and absorbs all the energy incident upon it. Calibration The process of adjusting an instrument or compiling a deviation chart so that its reading can be correlated to the actual value being measured. - Page 24 BB701 The OMEGA Family of Blackbody Calibrators Listed below is a selection guide of OMEGA’s current line of blackbody calibration sources in addition to the one you have selected. This family of rugged, portable and accurate calibrators cover a wide range of temperatures, target plate sizes and features making them perfect for infrared pyrometer field service testing and laboratory calibrations.
- Page 25 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 26 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE M U Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies M U Wire: Thermocouple, RTD & Thermistor M U Calibrators & Ice Point References M U Recorders, Controllers &...
