Altronix TROVE T1KE34D Installation Manual page 7

2.00" (50.8mm)
1.25"
(31.8mm)
1.5"
(38.1mm)
6.25" (158.8mm)
1.25" (31.8mm)
1.00" (25.4mm)
2.00" (50.8mm)
T1KE34D/38D / T2KE3316D Installation Guide

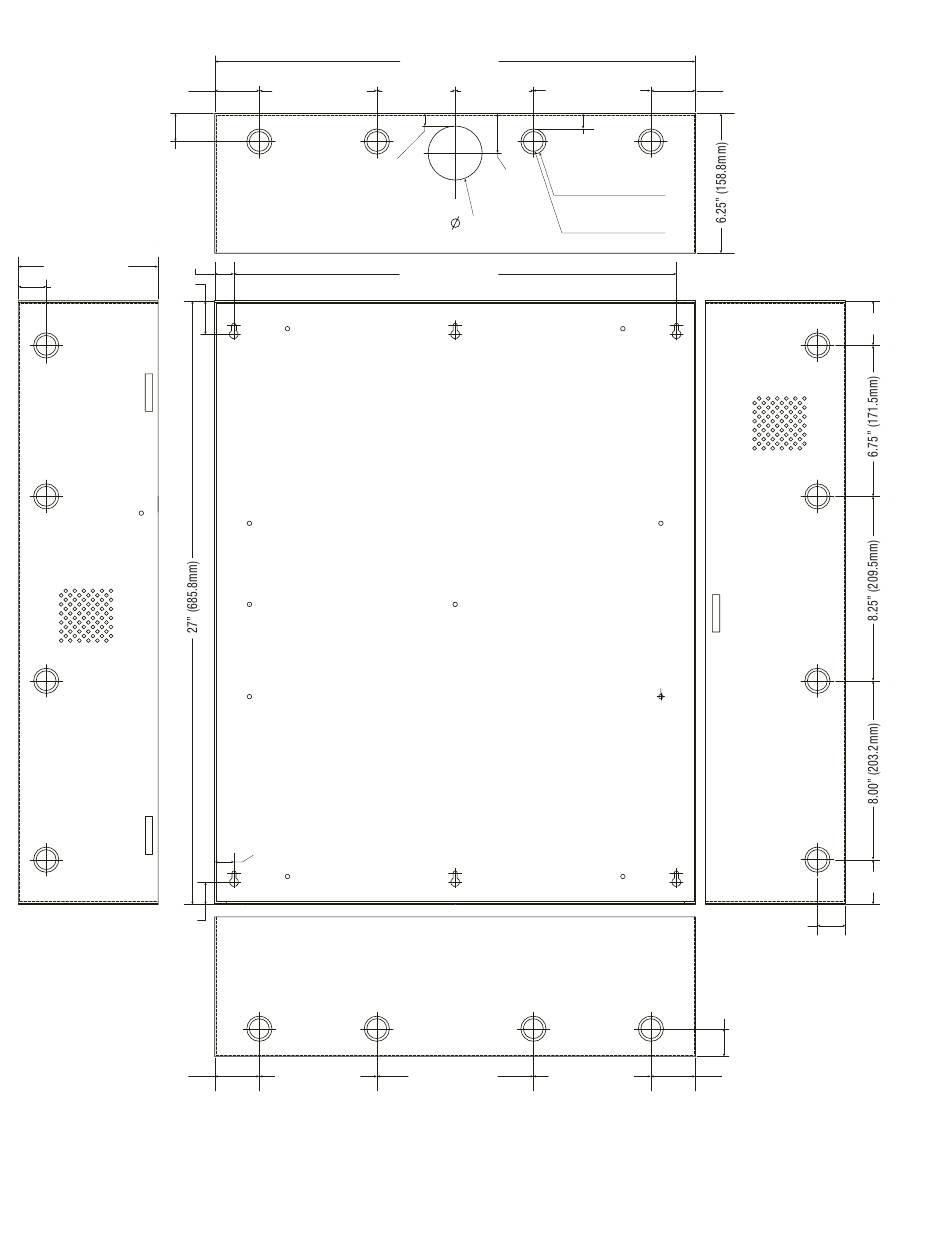

T2KE3316D Enclosure Dimensions (H x W x D approximate):
27.25" x 21.5" x 6.5" (692.2mm x 552.5mm x 165.1mm)
5.25" (133.35mm)
0.5625" (14.3mm)
0.85" (21.6mm)
5.25" (133.4mm)
21.50" (546.1mm)
5.25" (133.35mm)
3.5"(88.9mm) 3.5"(88.9mm)
0.685" (17.4mm)
1.77"
(45mm)
2.415" (61.3mm)
19.80" (502.9mm)
7.00" (177.8mm) 5.25" (133.4mm)
2.00" (50.8mm)
Knockouts
1.125" (28.3mm)
0.885" (22.5mm)
1.25" (31.8mm)
1.25" (31.8mm)
2.00" (50.8mm)
2.00" (50.8mm)
2.00" (50.8mm)
