Altronix TROVE T1KE34D Installation Manual page 5

1. Fasten mounting magnets (provided) to Kisi Pro Controllers with screws and spacers (provided) using the controllers' mounting holes
(Fig. 4, pg. 5).
2. Attach mounting magnets to TLU2 in the approximate position as shown below (Fig. 4, pg. 5).
Note: Kisi Pro Controllers should be properly oriented.
Please make sure that they are mounted correctly, as shown in Fig. 4 below.
3. Fasten TLU2 backplane to Trove2 enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Kisi
Pro Controller

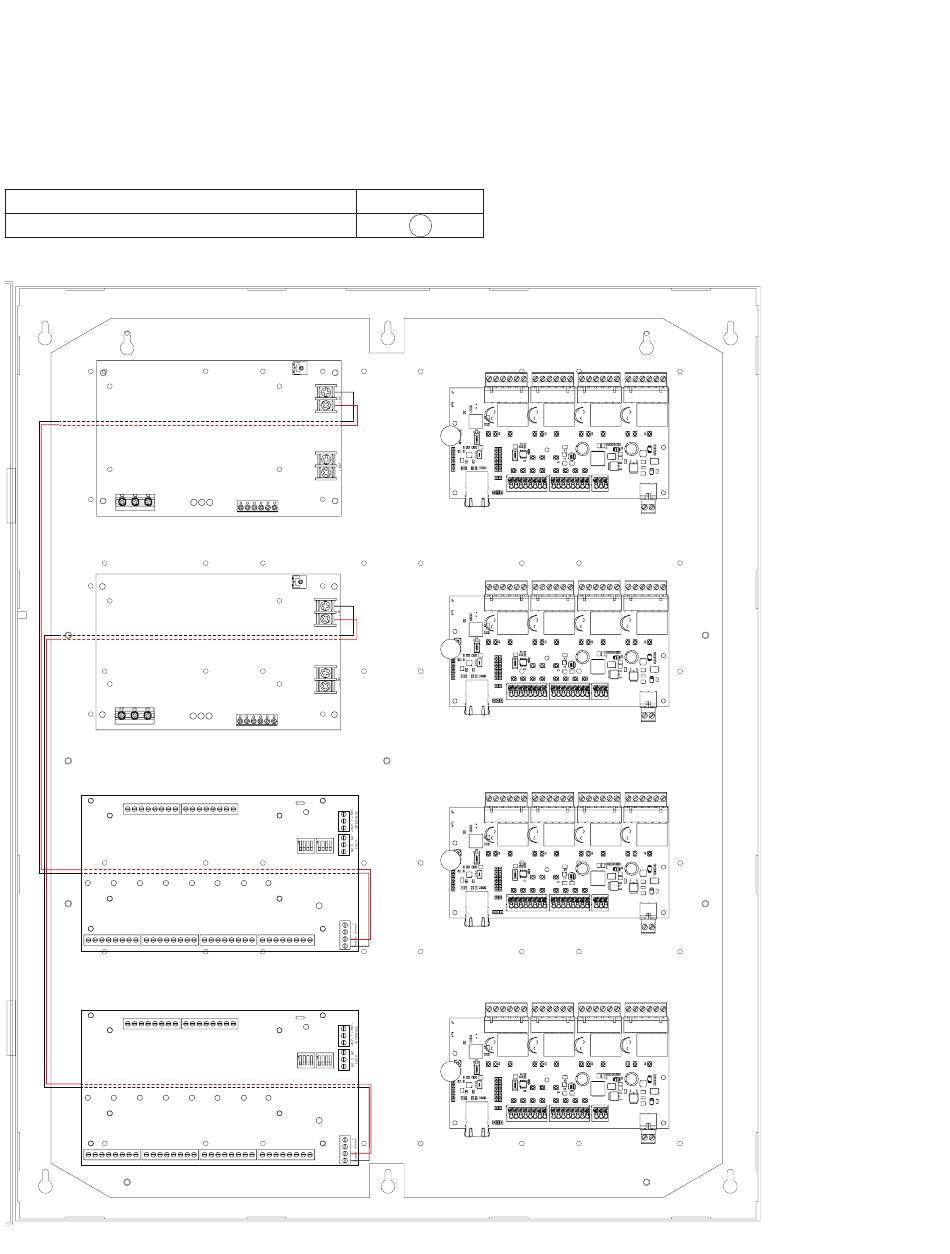

Fig. 4 - T2KE3316D Configuration
Power Supply
L G N
Power Supply
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4
F1 F2 F3 F4
ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4
F1 F2 F3 F4
ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
T1KE34D/38D / T2KE3316D Installation Guide
T2KE3316D: Configuration of Kisi Pro Controllers:
AC DC BAT
BAT FAIL NC C NO NC C NO AC FAIL
AC DC BAT
BAT FAIL NC C NO NC C NO AC FAIL
FACP
TRIGGER
TRG
INPUT
5 6 7 8
F5 F6 F7 F8
O N O N
1 2 3 4 1 2 3 4
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
FACP
TRIGGER
TRG
INPUT
5 6 7 8
F5 F6 F7 F8
O N O N
1 2 3 4 1 2 3 4
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
Pem Mounting
A
A
A
A
A
- 5 -
