Altronix TROVE T1KE34D Installation Manual page 3

1. Fasten mounting magnets (provided) to Kisi Pro Controllers with screws and spacers (provided) using the controllers' mounting holes
(Fig. 2, pg. 3).
2. Attach mounting magnets to TLU1 in the approximate position as shown below (Fig. 2, pg. 3).
Note: Kisi Pro Controllers should be properly oriented.
Please make sure that they are mounted correctly, as shown in Fig. 2 below.
3. Fasten TLU1 backplane to Trove1 enclosure utilizing hardware (provided).
Access Controller Position Chart for the Following Models:
Kisi
Pro Controller

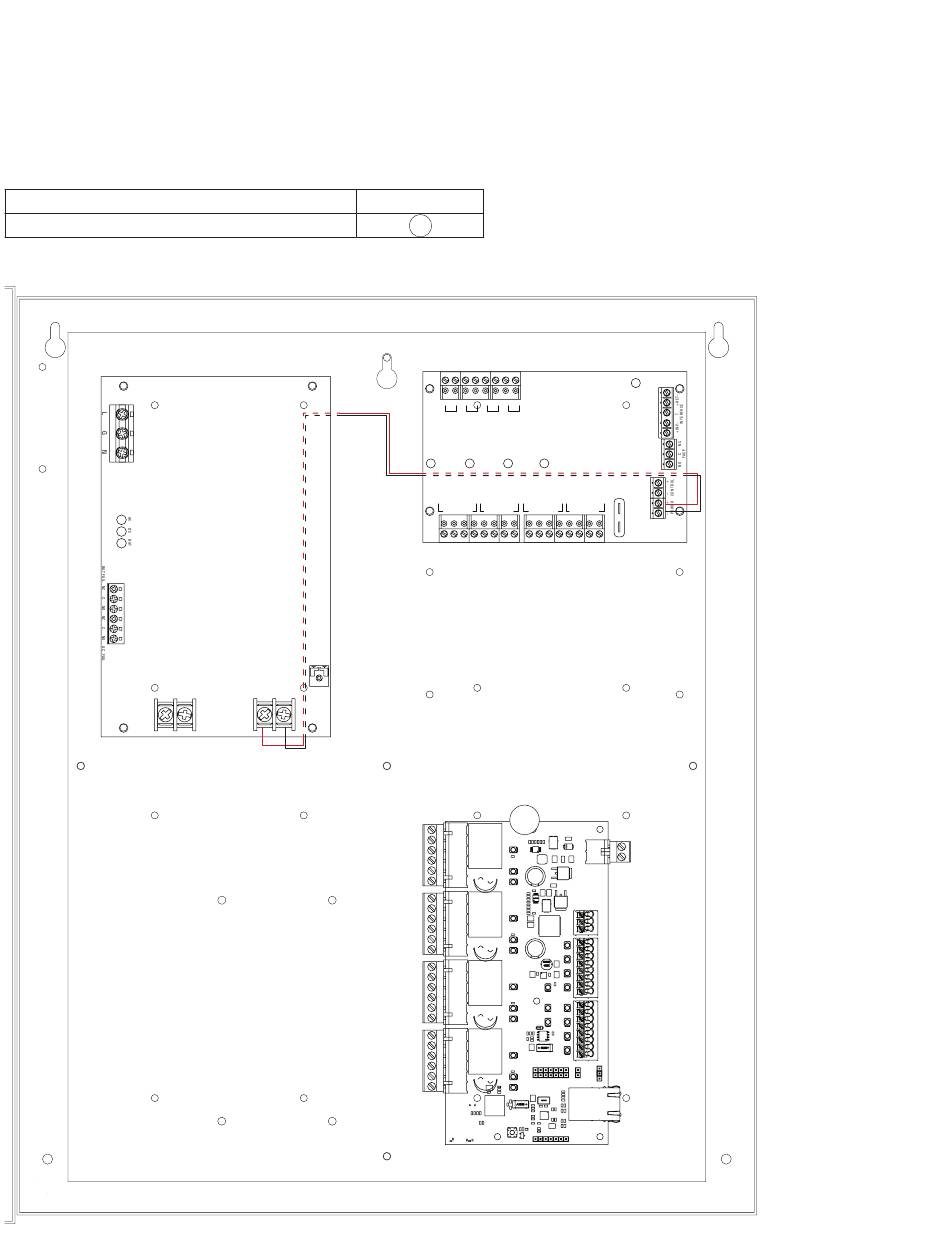

Fig. 2 - T1KE34D Configuration
Power Supply
+ BAT -
T1KE34D/38D / T2KE3316D Installation Guide
T1KE34D: Configuration of Kisi Pro Controllers:
Pem Mounting
+ DC -
A
TRIGGER
INPUT
IN GND IN GND IN GND IN GND
1 2 3 4
ACM4(CB)
LED1 LED2 LED3 LED4
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
A
TRG
MAIN
ACM4
ACCESS POWER
CONTROLLER
- 3 -
