- Page 1 www.fanvil.com...

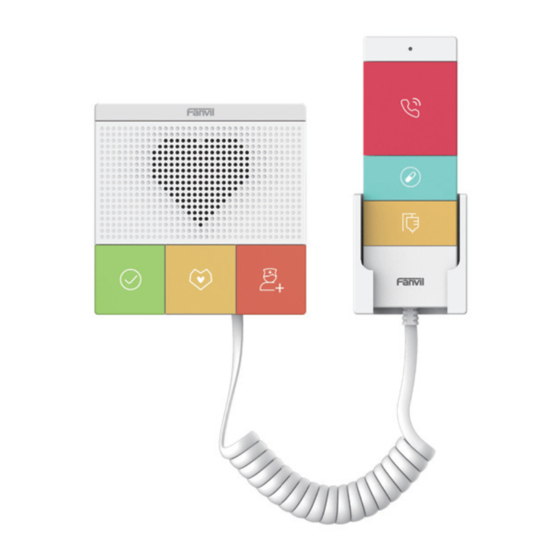

- Page 2 Package Contents SIP Care Intercom Connector Quick Installation Guide Mounting www.fanvil.com Template Screw and Tool Physical Specification Device size 87.56 x 87.56 x 21.5mm Y501-Y/Y501W-Y in 86 boxes,3 button 1) Panel Call key Speaker Call 2 key Call 3 key...
- Page 3 2) Interface Description On the back of the device, there is a row of terminal blocks for connecting the power supply, indoor switch. The connection is as follows ： Serial Description number Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is recommended to use five or five types of network cable Power interface: 12V/1A input...
- Page 5 Methods 1: Open the iDoorPhone Network Scanner, click the Refresh button to search the device and find the IP address. （Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe ) 172.18.70.55 Method 2: Long press DSS key for 3 seconds(after power-on for 30 seconds), and when the speaker beeps rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
- Page 6 In addition, device provides the device surface DSS key operation to switch IP address acquisition mode: In the standby mode, long-press the speed dial button for 3 seconds and the beep will last for 5 seconds. Within 5 seconds, press the speed dial button three times quickly to switch to the network mode.
- Page 7 Step 2: Add SIP Account Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select <Activate>, click <Apply> to take effect. Step 3: Set DSS key Set DSS key speed dial parameters, as shown below, click “Apply”to save this setting. Type: Memory Key.
- Page 8 Step 4: Set the Security Function Set of short-circuit input and output settings. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
