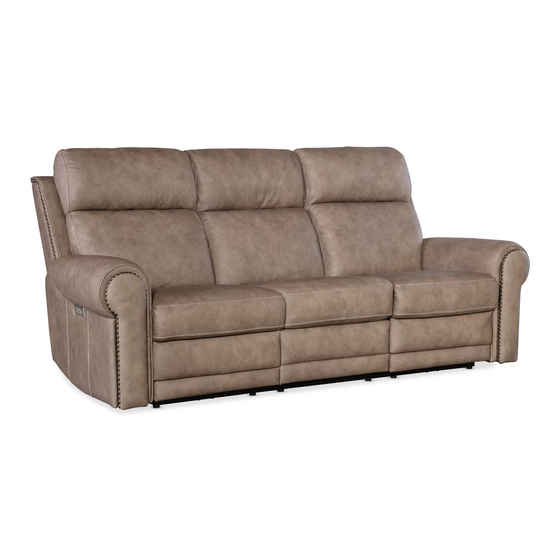

Hooker Furniture Duncan SS635-PHZL3-082 Assembly Instruction

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may have come loo e during
sh ipment. Read all in truction and study the drawing carefully before starting the assembly process.
Inside the carton you will find two red plastic bags that have the sofa's wings in it. Remove the wings from the plastic bag and set them
aside to be used in assembly and installation.
CAUTION: Make sure to read the instructions below before assembling your triple power sofa. We suggest two people be
used in the assembly of your triple power sofa.
A×1
D×1
E
Ensure both clips on back
are aligned, then press top
of back frame downward until
a clicking sound is heard.
NOTE: This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference,including interference that may cause
undesired operation of the device. Modifications not approved
by the party responsible for compliance could void user's
authority to operate the equipment.
Do Not plug the power cord into a power outlet until your sofa is fully assembled and in place.
Notes:
1) To help prevent shock and or damage to your product only plug the power cord into a grounded outlet.
2) Read the operating instructions carefully before operating your triple power sofa.
ASSEMBLY INSTRUCTION
ITEM: SS635-PHZL3-082 Duncan PWR Sofa w/PWR Headrest & Lumbar
SS635-PHZL3-088 Duncan PWR Sofa w/PWR Headrest & Lumbar
B×1 C×1
B
A
Page 1 of 2
E×2
F×2
E
C
Headrest
The headrest leadwires are yellow.
The lumbar leadwires are grey.
F
Not Included
Lumbar
