IW9165D (Internal Antenna) Radiation Patterns

Supported GNSS Antenna
The following table shows the external GNSS antennas supported by IW9165D.
Table 4: Supported GNSS Antenna
PID
ANT-GNSS-OUT-TNC=
IW9165D (Internal Antenna) Radiation Patterns

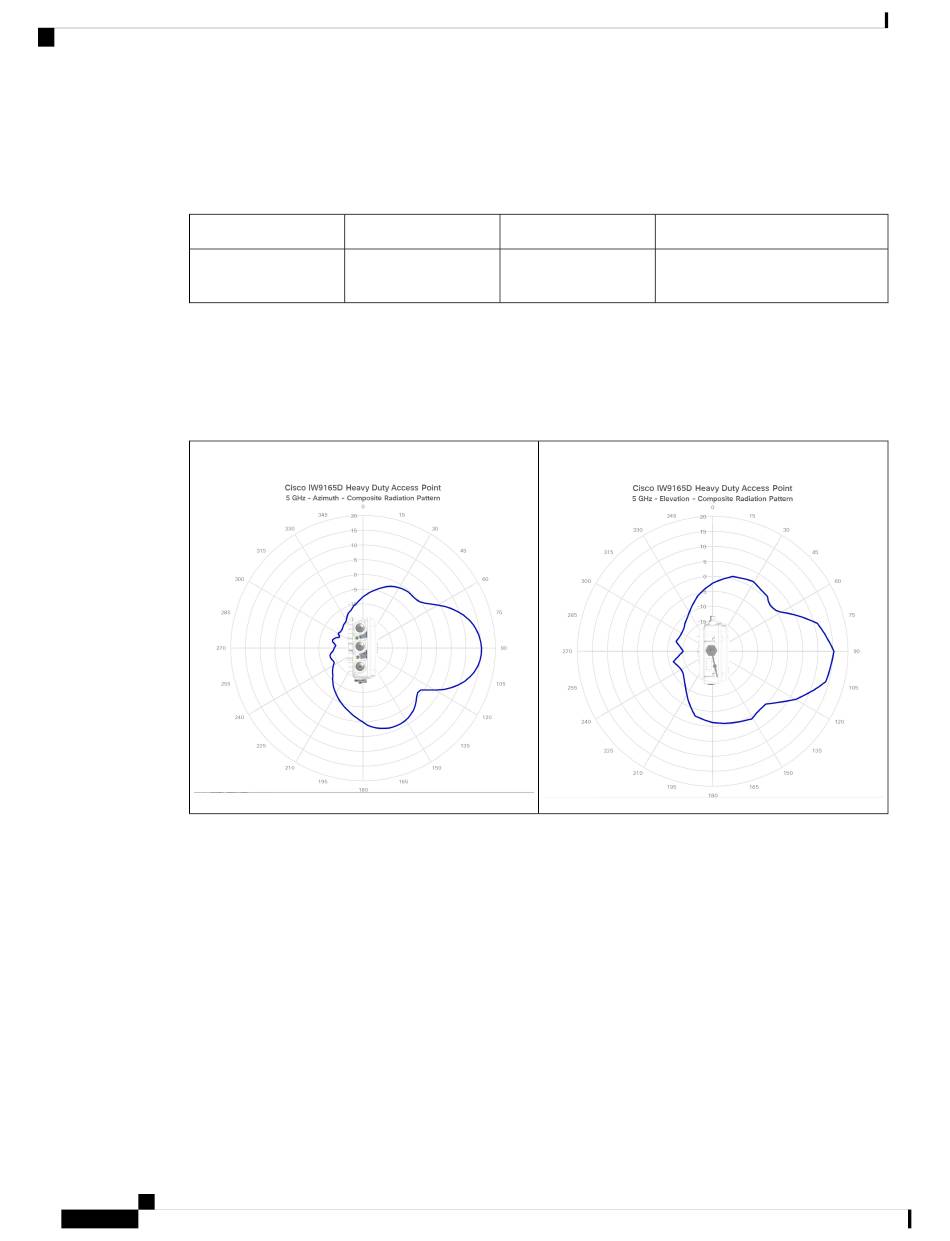

The following illustrations show the IW9165D model with internal antenna radiation patterns:
Table 5: Cisco Catalyst IW9165D Radiation Patterns
Figure 8: IW9165D - Composite Radiation Pattern (5-GHz Azimuth)
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
10
Frequencies Supported Connector
1560 - 1608 MHz TNC male
About Cisco Catalyst IW9165D Heavy Duty Access Point
Description
Outdoor Active GNSS Antenna
with 15-ft. integrated cable
Figure 9: IW9165D - Composite Radiation Pattern (5-GHz Elevation)
